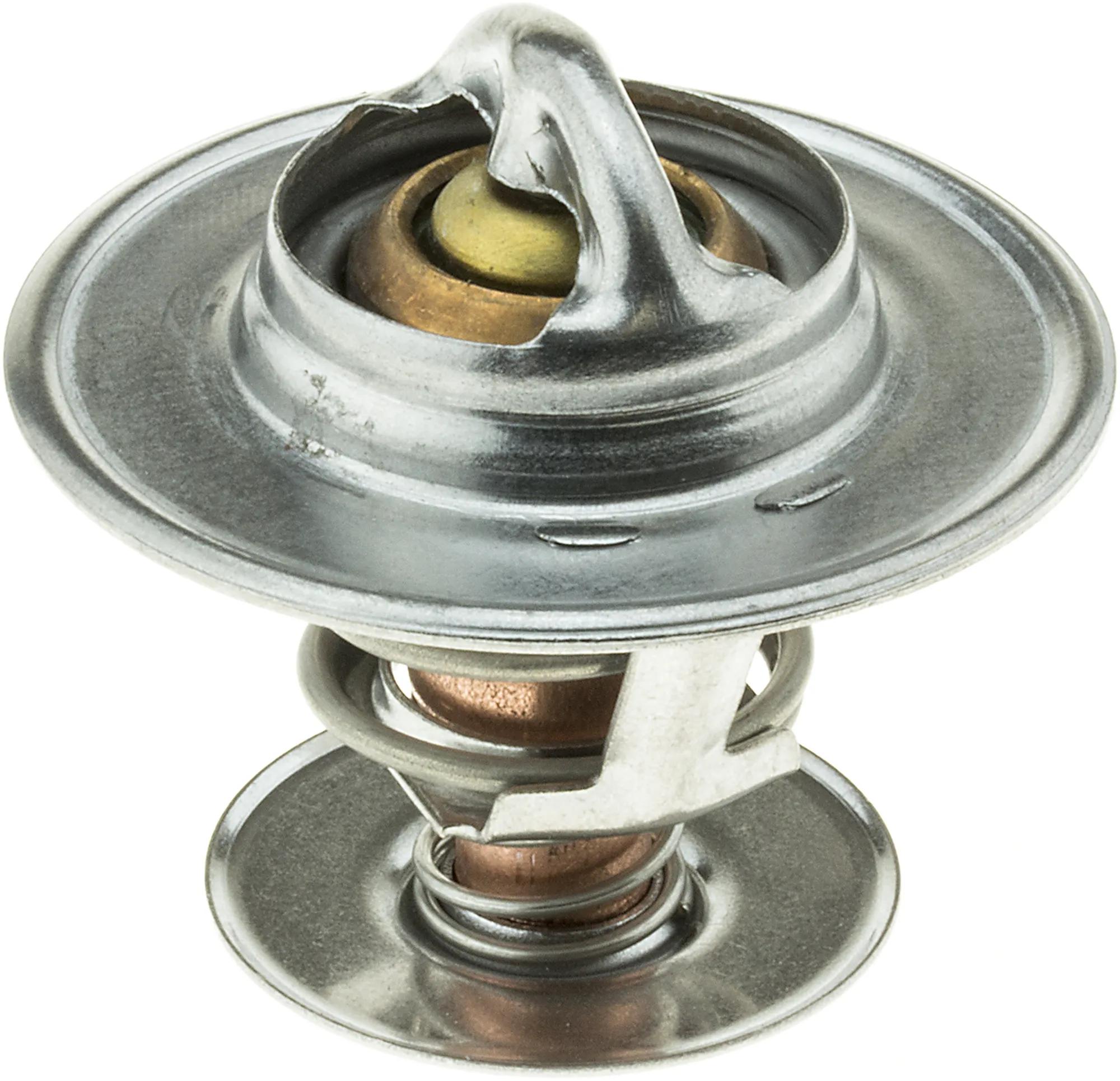

Thermostat, Dimension from flange: 1-1/4 x 51/64 in
#GAT33056
Product Overview
Designed For Customers Who Demand The Exact OEM Thermostat As A Replacement.
Features & Benefits
- These Thermostats Match The OE Product Fit, Function & Design.
Specifications
| Color | Silver |
| Depth from Flange | 1-1/4 in (3.18 cm) |
| Design | Bottom By-Pass |
| Flange Diameter | 2-1/8 in (5.41 cm) |
| Flange Head Thickness (in) – F | 1/16 in (0.15 cm) |
| Flange Length (in.) | 1-3/8 in (3.51 cm) |
| Gasket | 0 |
| Height | 2 in (5.08 cm) |
| Height from Flange | 51/64 in (2.03 cm) |
| Jiggle Pin | 0 |
| OE Comparison Rating | OE Performance |
| # of Seals | 0 |
| Temperature | 160°F (71°C) |
| Type | OE Type Thermostat |
Interchanges & Equivalent parts:
234-160, 143-0706, 2034-160, 230-167, 28-10171, 28-10271, 28-10371, 340-160, 437-160, 542860, 543560, 7-160, 83241, 83271, DVN-41, E-256-160, ET-11-160, ET-25-160, ET-26-160, ET-9-160, U33-9221, VB28-V5857, VB28-V5860, VB28-V5964, VB28-V6674, VB28-V6728, VB28-V6730, VB28-V6776, 13376, STT13376, 2034-160, VB28-V5857, DVN-41, 234-160, ET-9-160, VB28-V6728, ET-11-160, 28-10171, 28-10271, VB28-V5860, ET-25-160, 28-10371, 340-160, 83271, ET-26-160, 543560, 7-160, 230-167, VB28-V5964, 437-160, VB28-V6776, 542860, E-256-160, VB28-V6674, STT13376, U33-9221, 143-0706, VB28-V6730, 83241, 13376
