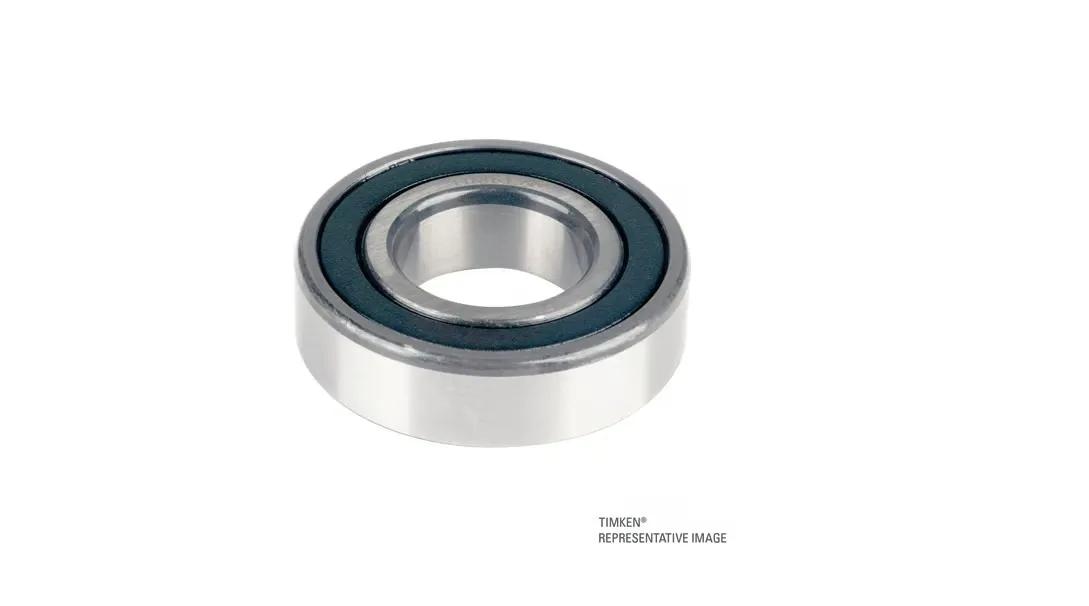

Timken Ball Bearing, 45 mm Bore, 27 mm Inner Ring Width, 4600 lb Static, 8160 lb Dynamic, 21 mm Outer Ring Width, 85 mm OD
#TIM209KRR3
Product Overview
Ball Bearing, 45 mm Bore, 27 mm Inner Ring Width, 4600 lb Static, 8160 lb Dynamic, 21 mm Outer Ring Width, 85 mm OD
Features & Benefits
- Consists of deep groove, conrad-type bearings
- Incorporates a flare-out, contact r-seal
- Synthetic rubber impregnated washer is enclosed between two metal shields, providing excellent protection against contaminants
- Because of the heavy contact seal, this series is normally employed in moderate-speed service
Specifications
| Inner Ring Width | 27 mm |
| Outer Ring Width | 21 mm |
| Outside Diameter | 85 mm |
| Bore Size | 45 mm |
| Load Rating | 4600 lb Static, 8160 lb Dynamic |
| Manufacturer Part Number | 209KRR3 |
| Product Category | Ball Bearing |
