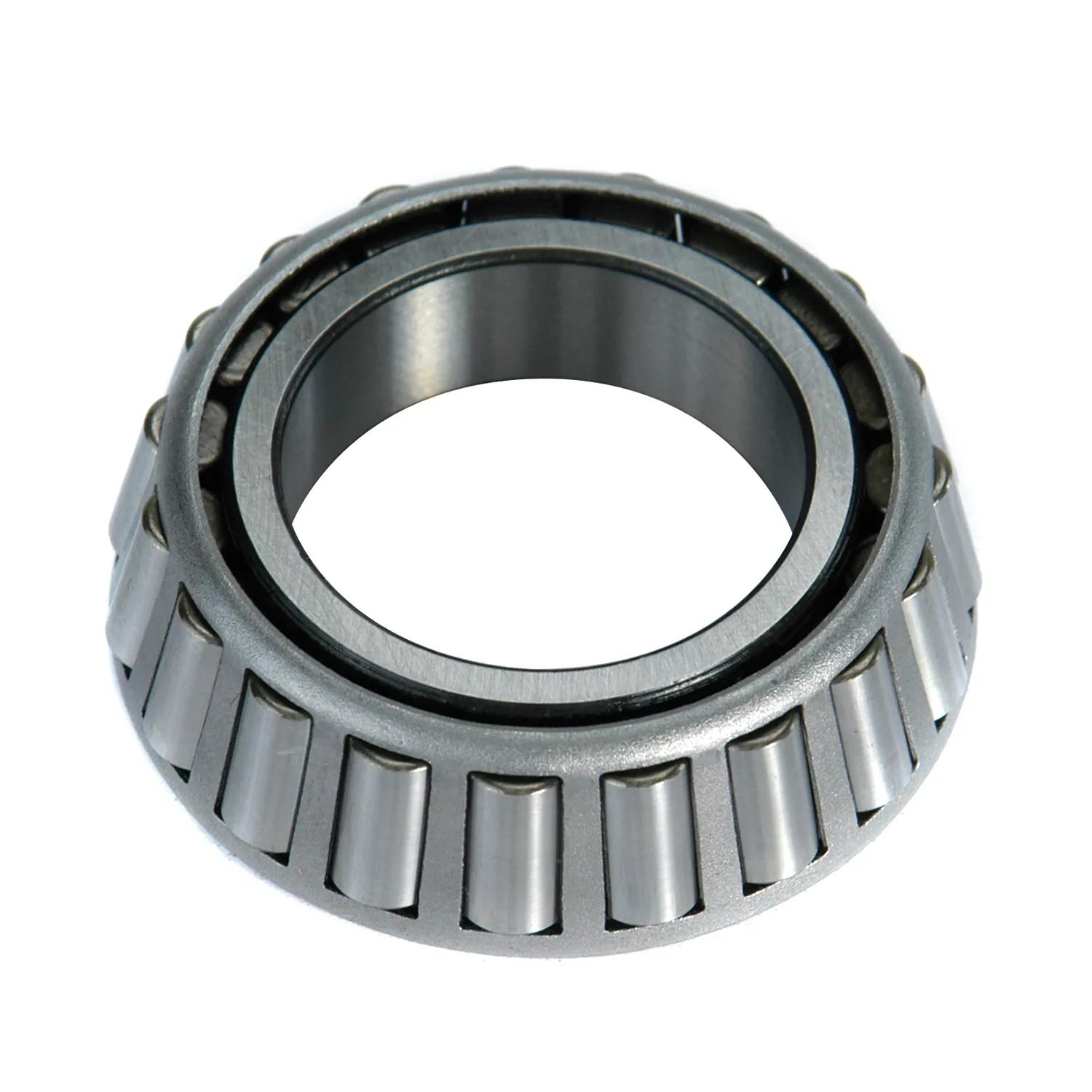

Timken Bearing Cone, Tapered Roller, Stamped Steel Cage, 5 in Bore Diameter, 1.5 in Cone Width
#TIM48290
Product Overview
This is the most basic and widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.Bearing Cone, Tapered Roller, Stamped Steel Cage, 5 in Bore Dia, 1.5 in Cone Width, 268000 N at 1 Million Revolutions Dynamic Load Rating, 0.14 in Fillet Radius, 1.91 K Factor, 1 Rows, 493000 N Static Load Rating
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Application | Mounted in opposing pairs on a shaft |
| Bearing Type | Tapered Roller |
| Bore Diameter | 5 in |
| Cage Material | Stamped Steel |
| Cone Width | 1.5 in |
| Dynamic Load Rating | 268000 N at 1 Million Revolutions |
| Fillet Radius | 0.14 in |
| K Factor | 1.91 |
| Number of Rows | 1 |
| Static Load Rating | 493000 N |
| Product Category | Bearing Cone |
Interchanges & Equivalent parts:
| 180253 |
