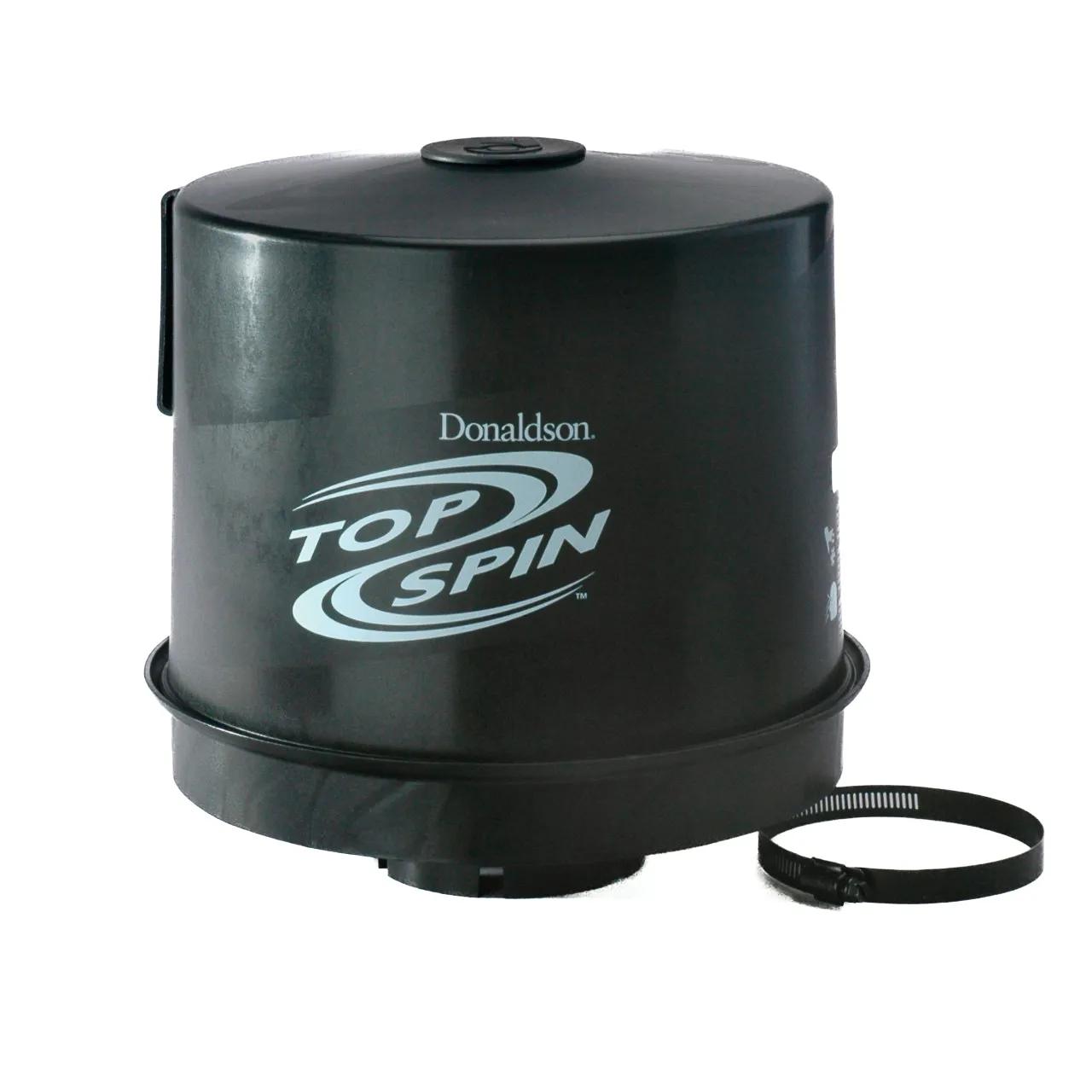

TOPSPIN
#DONH002431
Product Overview
Why Choose Donaldson TopSpin Pre-Cleaners?
Features & Benefits
- Donaldson TopSpin pre-cleaners extend primary air filter life, boost system efficiency, and extend engine life
- Separates up to 85% of incoming contaminant per ISO 5011/SAE J726
- Self-cleaning- no maintenance bowl to clean
- Quick installation- one clamp to tighten
- Lighter than competitive pre-cleaners
Specifications
| Diameter | 11,3 in (287,1 mm) |
| Diameter Range | 4 to 4.99 in |
| Efficiency | 85 |
| Efficiency Test Std | ISO 5011, SAE J726 |
| Height | 11,32 in (287,6 mm) |
| Outer Diameter | 4,06 in (103,12 mm) |
| Rated Flow High Range | 798 cfm (22,6 m³/min) |
| Rated Flow Low Range | 449 cfm (12,7 m³/min) |
| Restriction HR | 2,99 in H2O (75,95 mm H2O) |
| Restriction LR | 0,98 in H2O (24,9 mm H2O) |
Interchanges & Equivalent parts:
| 2172 |
| 4172 |
| 524172 |
| 24172 |
| 2191-H002431 |
| 542172 |
| 89172 |
| DONH002431 |
| DN H002431 |
| DN H002431 |
