Topspin
#DONH002434
Product Overview

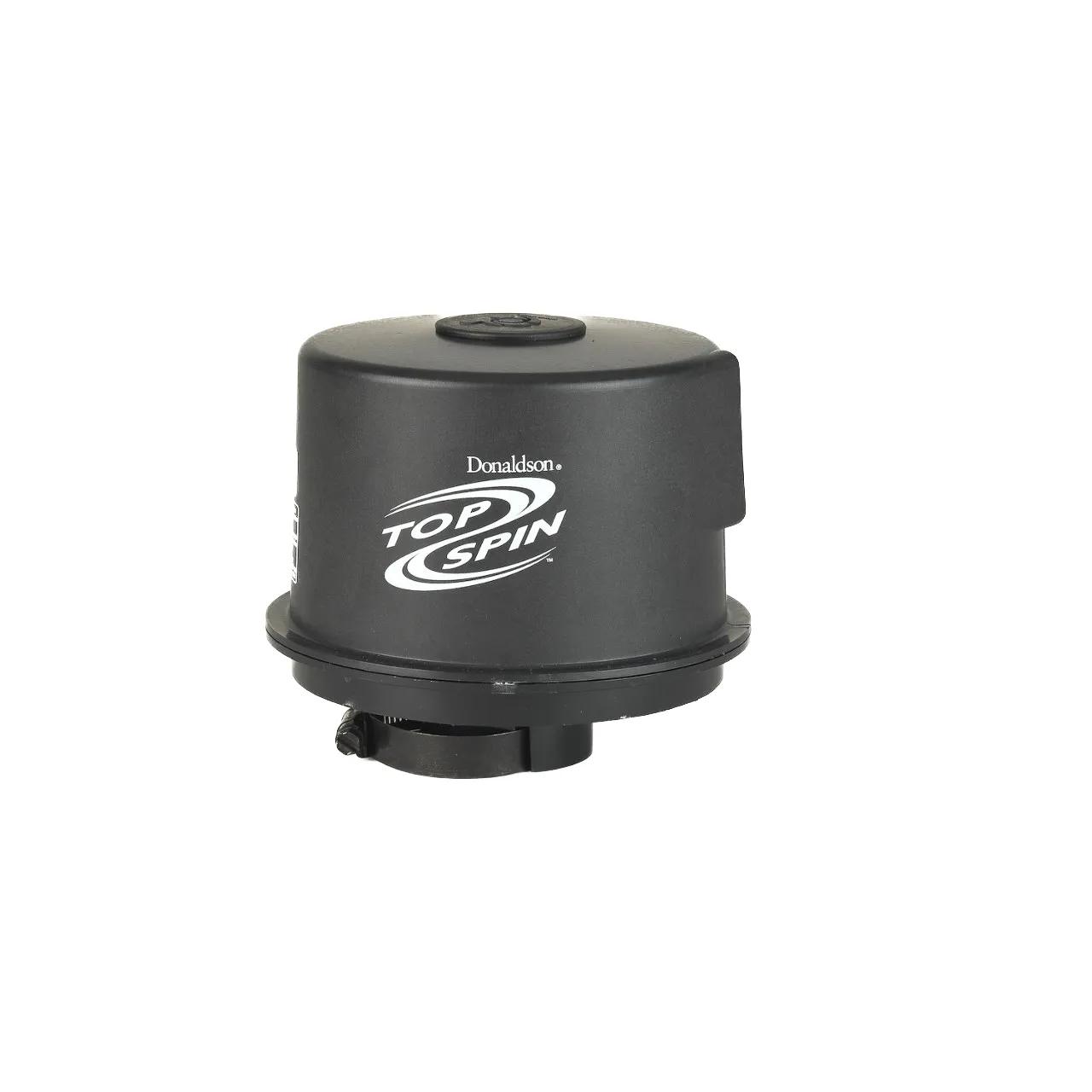

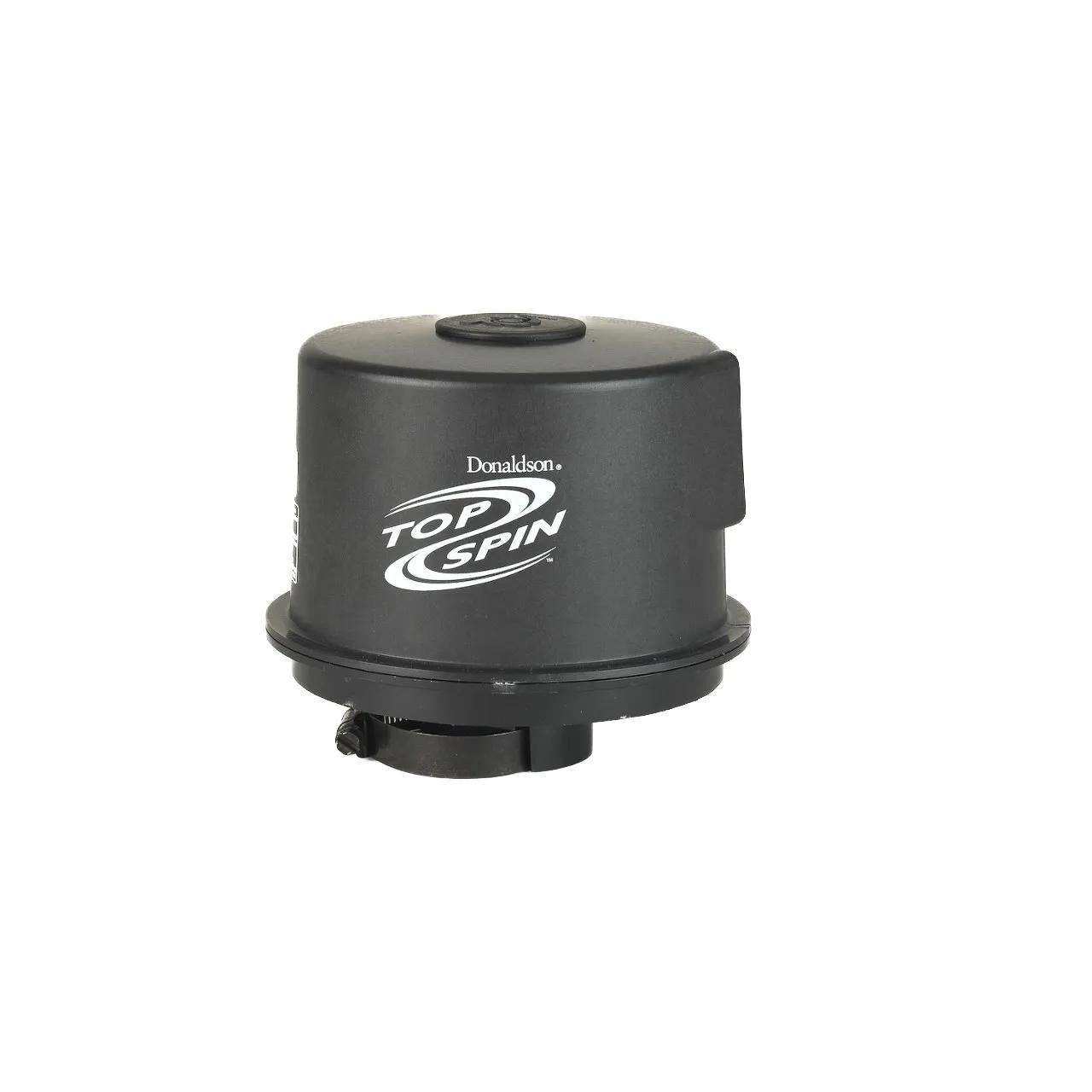

PRE-CLEANER, TOPSPIN
Features & Benefits
- Donaldson TopSpin pre-cleaners extend primary air filter life, boost system efficiency, and extend engine life
- Separates up to 85% of incoming contaminant per ISO 5011/SAE J726
- Self-cleaning- no maintenance bowl to clean
- Quick installation- one clamp to tighten
- Lighter than competitive pre-cleaners
Specifications
| Diameter | 6,39 in (162,4 mm) |
| Diameter Range | 2 to 2.99 in |
| Efficiency | 85 |
| Efficiency Test Std | ISO 5011, SAE J726 |
| Height | 5,79 in (147,1 mm) |
| Outer Diameter | 2,03 in (51,57 mm) |
| Rated Flow High Range | 202 cfm (5,73 m³/min) |
| Rated Flow Low Range | 50 cfm (1,4 m³/min) |
| Restriction HR | 4,77 in H2O (121 mm H2O) |
| Restriction LR | 0,12 in H2O (3,05 mm H2O) |
Interchanges & Equivalent parts:
| 89165 |
| 4165 |
| 24165 |
| AU111549 |
| AU111707 |
| 9040108900 |
| D73M600000 |
| PNZ1353SC |
| 740455 |
| AP2434 |
| 2191-H002434 |
| AP8408 |
| DONH002434 |
| DN H002434 |
