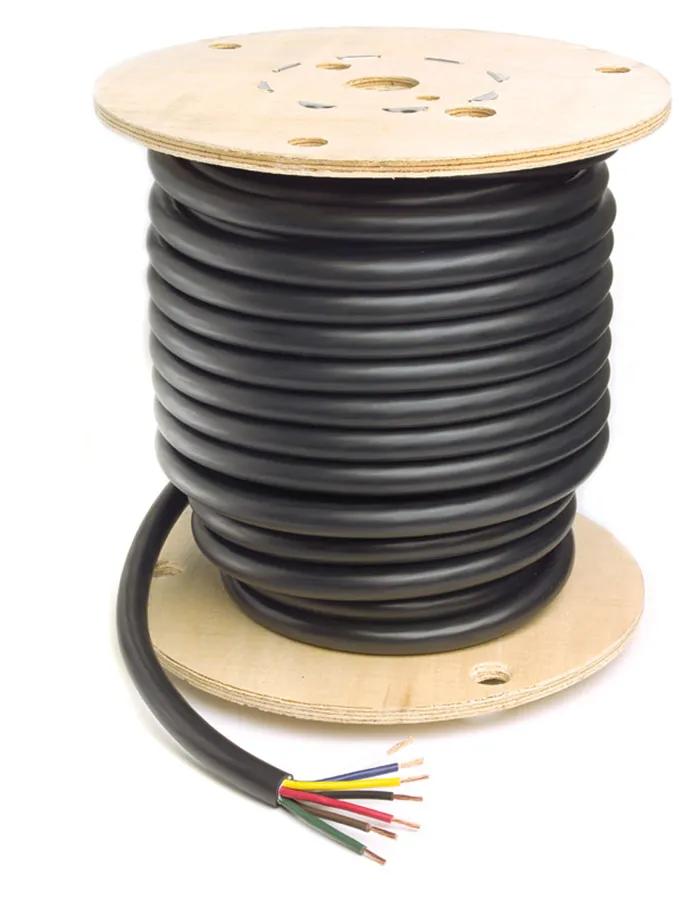

Trailer Cable, 7-Conductor, 14 GA Copper, PVC Jacket, 100 ft Spool, Multi-Color
#GRO82-5609
Product Overview
Grote's Trailer Cable features a durable PVC jacket providing protection from weather and abrasive materials. Constructed with 100% pure copper conductors, this cable supports consistent communication throughout your truck or trailer system. Available in 7 color-coded wires, it is designed for reliable use in both 12 and 24 Volt systems.Trailer Cable, Spool, Yellow, Red, Green, Brown, Black, Blue, White, Copper Conductor, PVC Insulation, 14 GA Gauge, 7 Wires, 0.535 in OD, SAE J1128 Standards, -40 to 80 °C Temperature Range, 60 V, 100 ft Length
Features & Benefits
- Used for wiring trucks and trailers
- Designed for 12 Volt & 24 Volt systems
- PVC jacket rated at -40°C (-40°F) to 60°C (140°F), providing protection from weather and abrasive materials
- Manufactured to meet SAE J1128 standards
- Constructed with 100% pure copper conductors
- 7 color-coded wires for easy identification
- Available on a 100 ft spool
- We also offer a complete line of trailer plugs, sockets, adapters & junction blocks & boxes.
- Manufactured to Meet
- Designed for Use in 12 & 24 Volt Systems.
Specifications
| Color | Black, Blue, Brown, Green, Red, White, Yellow |
| Conductor Material | Copper |
| Gauge | 14 ga |
| Length | 100 ft |
| Temperature Range | -40°C (-40°F) to 60°C (140°F) |
| Type | Wire |
| UPC | 621935009014 |
| Insulation Material | PVC |
| Outside Diameter | 0.535 in |
| Package Type | Spool |
| Standards | SAE J1128 |
| Voltage Rating | 60 V |
| Product Category | Trailer Cable |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 825609 |
| 7376-825609 |
| 774A1 |
| 82-5609GR0 |
| GRO 82 5609 |
| GRO825609 |
| ZBJ825609 |
| ZBJD825609 |
| 769094 |
| 825609FT |
| 8156-C |
| 82-5609 |
