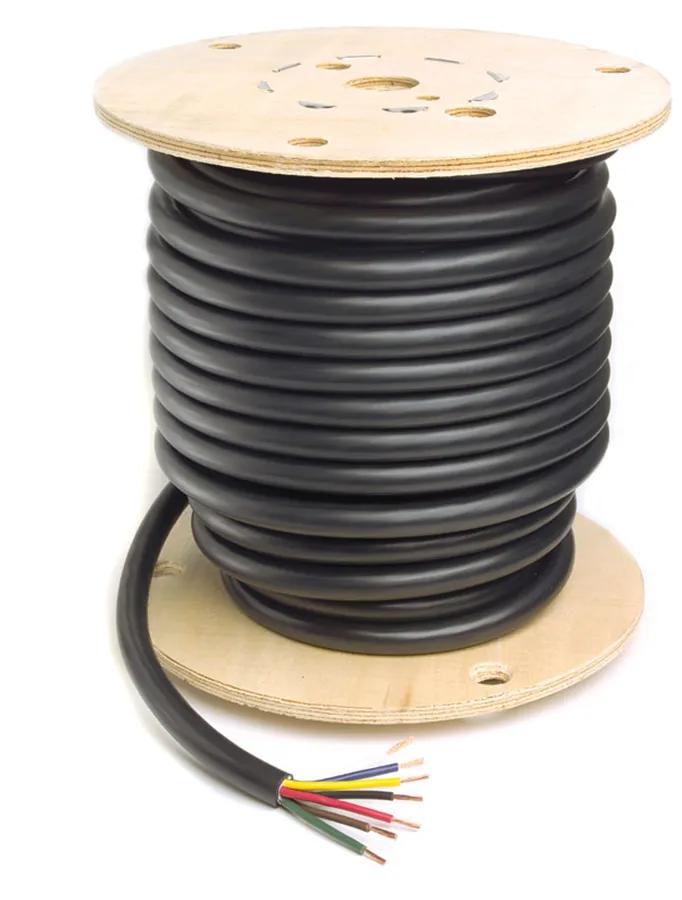

Trailer Cable, PVC Insulated, 7 Conductor, 14 Gauge, 500 ft Spool, Copper Wire
#GRO82-5614
Product Overview
Grote offers durable trailer cable designed for reliable communication throughout your truck or trailer system. Constructed with 100% pure copper conductors and a PVC jacket, this cable withstands weather conditions and abrasive materials. Available in a 500 ft spool, it supports both 12 and 24 Volt systems and meets SAE J1128 standards.Trailer Cable, Spool, Yellow, Red, Green, Brown, Black, Blue, White, Copper Conductor, PVC Insulation, 14 GA Gauge, 7 Wires, 0.535 in OD, SAE J1128 Standards, -40 to 80 °C Temperature Range, 60 V, 500 ft Length
Features & Benefits
- Used for wiring trucks and trailers
- Designed for 12 Volt &24 Volt systems
- PVC jacket rated at -40°C (-40°F) to 60°C (140°F)
- Jacket provides protection from weather and abrasive materials
- Manufactured to Meet
- Designed for Use in 12 & 24 Volt Systems.
- We Also Offer a Complete Line of Trailer Plugs, Sockets, Adapters & Junction Blocks & Boxes.
- Constructed with 100% pure copper conductors
- Meets SAE J1128 standards
- 7 conductor wires with 14 gauge thickness
- Spool package type with 0.535 inch outside diameter
- Voltage rating of 60 V
Specifications
| Color | Black, Blue, Brown, Green, Red, White, Yellow |
| Conductor Material | Copper |
| Gauge | 14 ga |
| Length | 500 ft |
| Temperature Range | -40°C (-40°F) to 60°C (140°F) |
| Type | Wire |
| UPC | 621935018276 |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Outside Diameter | 0.535 in |
| Package Type | Spool |
| Standards | SAE J1128 |
| Voltage Rating | 60 V |
| Product Category | Trailer Cable |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 050042-500VEL |
| 050042-7 |
| 050042-7VEL |
| 500427 |
| 7376-825614 |
| 774A5 |
| 82-5614GR0 |
| GRO 82 5614 |
| GRO825614 |
| ZBJ825614 |
| ZBJD825614 |
| 8156-M |
| 8156-RL |
| 82-5614 |
| 825614 |
| 825614FT |
