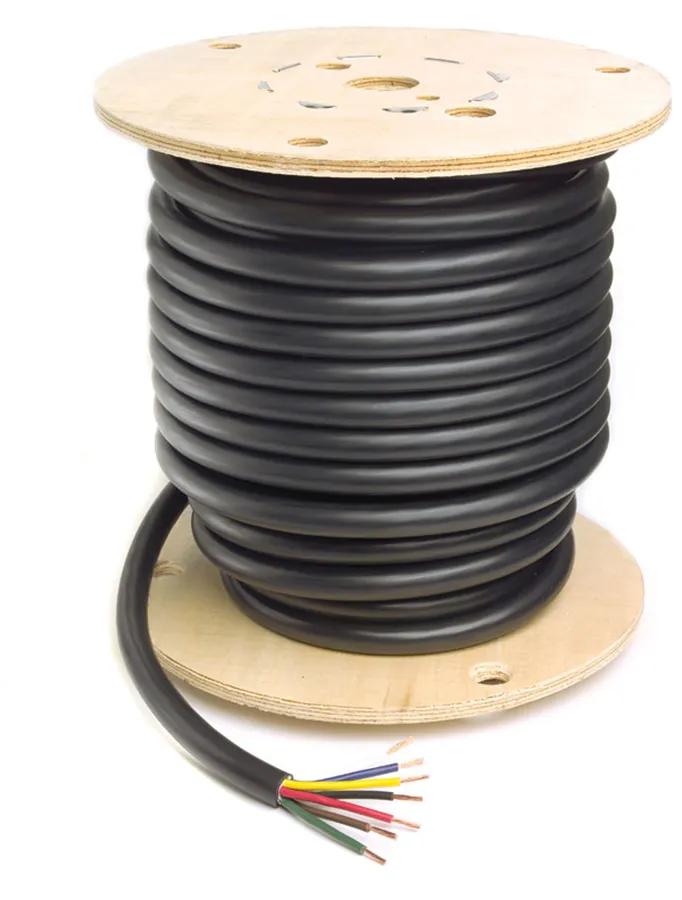

Trailer Cable, PVC Jacket, 7 Conductors, 6/14 and 1/12 Gauge, 500 ft Spool, Copper Conductor
#GRO82-5615
Product Overview
Grote offers a durable trailer cable with a PVC jacket that provides protection from weather conditions and abrasive materials. Constructed with 100% pure copper conductors, this cable ensures consistent communication throughout your truck or trailer system. Available in a 500-foot spool, it supports both 12 and 24 Volt systems and meets SAE J1128 standards.Trailer Cable, Spool, Yellow, Red, Green, Brown, Black, Blue, White, Copper Conductor, PVC Insulation, 6/14 GA, 1/12 GA Gauge, 7 Wires, 0.543 in OD, SAE J1128 Standards, -40 to 80 °C Temperature Range, 60 V, 500 ft Length
Features & Benefits
- Used for wiring trucks and trailers
- Designed for 12 Volt & 24 Volt systems
- PVC jacket rated at -40°C (-40°F) to 60°C (140°F)
- Jacket provides protection from weather and abrasive materials
- Manufactured to Meet SAE J1128 standards
- Designed for Use in 12 & 24 Volt Systems.
- We Also Offer a Complete Line of Trailer Plugs, Sockets, Adapters & Junction Blocks & Boxes.
- Constructed with 100% pure copper conductors
- 7 conductors for reliable connectivity
Specifications
| Couleur | Noir, Bleu, Brun, Vert, Rouge, Blanc, Jaune |
| Matériau du conducteur | Cuivre |
| Gauge | 1/12 ga, 6/14 ga |
| Length | 500 pi |
| Temperature Range | -40 °C (-40 °F) à 60 °C (140 °F) |
| Type | Fil |
| UPC | 621935013332 |
| Insulation Material | PVC |
| Outside Diameter | 0,543 po |
| Package Type | Bobine |
| Standards | SAE J1128 |
| Voltage Rating | 60 V |
| Product Category | Câble de remorque |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 825615 |
| 3-244 |
| 82-5613 |
| 825613 |
| GRO82-5613 |
| GRO825613 |
| 7376-825615 |
| 76412A5TEC |
| 82-5615GR0 |
| GRO 82-5615 |
| GRO825615 |
| TEW76412A5 |
| ZBJ825615 |
| ZBJD825615 |
| 3244 |
| 825615FT |
| 422227 |
| 422228 |
| 422229 |
| 8153-27 |
| 82-5615 |
| 784569 |
| 784570 |
| 784571 |
| 3243 |
| 3245 |
