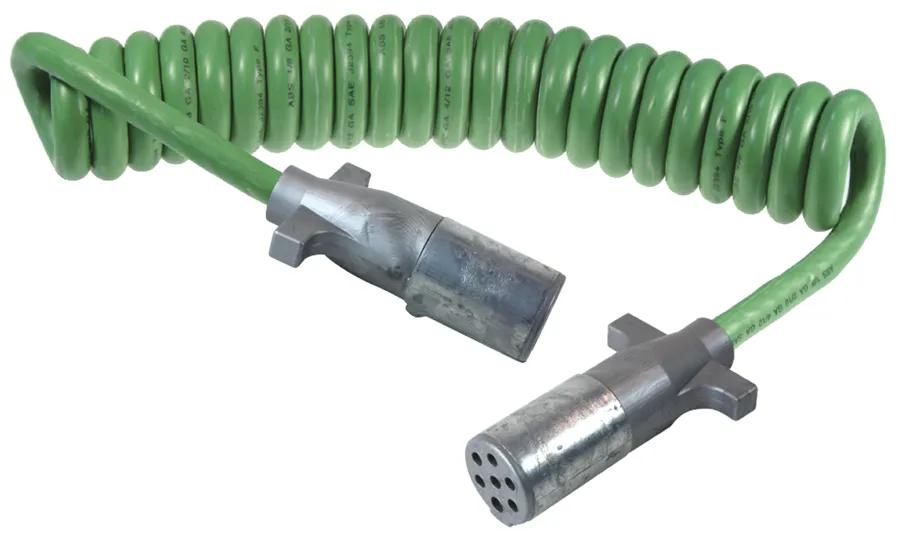

Trailer Connector Coiled Cables / Cord Assy - H/D Truck Ultralink ABS Power Cord 7 GROTE
#GRO87104
Product Overview
w/ 12" Lead, Coiled, UltraLink Zinc Die-Cast Plugs
Features & Benefits
- Provides Superior Power Delivery & Exceeds Power Delivery Minimum Legal Lamp Requirements For Single Or Double Trailer Configurations, UltraLink Zinc Die-Cast Plugs Are Filled w/ Elastomeric Material That Resists Crushing & Acts As Potting To Seal Sold Brass Terminals From Moisture, Special Adhesive Bonds The Cable To The Plug, Eliminating The Need For A Supporting Spring & Preventing Moisture From Entering The Back Of The Plug, Solid Brass Terminals Are Corrosionn Resistant & Provide Superior Current Capacity w/ Minimal Voltage Drop, Advanced Polymer Jacketing Material Provides Complete Sealing & Abrasion Protection Between Neg 55 Deg Fahrenheit & 190 Deg Fahrenheit
- Adhesive cable-to-plug bond eliminates the need for a support spring and blocks rear moisture intrusion
- Provides excellent recoil memory, along with strong chemical and abrasion resistance for long service life
- Zinc die-cast plugs with elastomeric potting resist crushing and seal out moisture from solid brass terminals
- Advanced polymer jacketing ensures complete sealing and abrasion protection from -55°F to 190°F (premium versions)
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Couleur | Vert |
| Jauge | 1/8 ga, 2/10 ga, 4/12 ga |
| Longueur | 15 pi (4,57 m) |
| Matériel | Polyuréthane |
| Nombre de contacts | 7 |
| Emballage | Bagged |
| Type | Droit |
Specifications
| Temperature Range | -48°C (-55°F) to 87°C (190°F) |
Interchanges & Equivalent parts:
| 87104 |
| 30-4627 |
| 30-9620 |
| 87101 |
| PHI30-4627 |
| 87104GRC |
| GRO 87104 |
