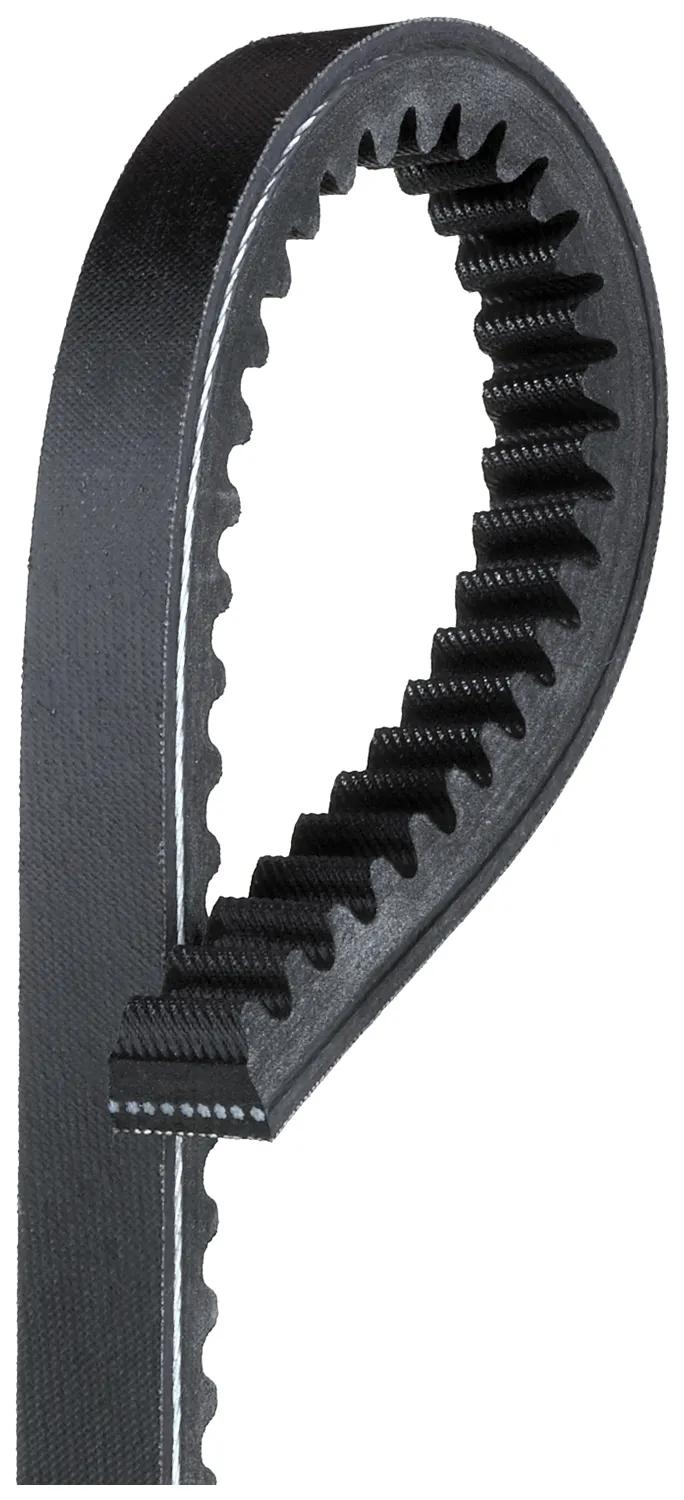

Truck & Bus V-Belt, L: 36.29 in, W: 19/32 in
#GATTR22363
Features & Benefits
- Meets SAE J636b and SAE J637 specifications.
- Oil and heat-resistant construction throughout.
- Special tensile cords give high stretch resistance
- Special notch design resists cracking while providing tensile member support during operation.
- Deep notch pattern also allows greater flexibility over small diameter pulleys and helps keep the belt cool.
Specifications
| Angle | 40 deg |
| Belt Top Width | 1/2 to 5/8 in (1.27 to 1.6 cm) |
| Construction | Notched |
| Length | 36.87 in |
| Material | Polyester |
| Notched | Yes |
| # of Grooves | 1 |
| Section | RA |
| Length Range | 35 to 39.99 in |
| Type | Truck & Bus V-Belt |
| Weight | 0.38 lb (0.17 kg) |
| Width | 19/32 in (1.5 cm) |
Interchanges & Equivalent parts:
| 124479 |
| 129643 |
| 132010 |
| 027002030 |
| 027141126 |
| 105072 |
| 115505HA |
| 115505H |
| 133241 |
| 146364 |
| 15A0925 |
| 15A0930 |
| 160103 |
| 1704125 |
| 1704633 |
| 1726 |
| 178556 |
| 178568 |
| 17A0915 |
| 18-22365 |
| 180003 |
| 190003 |
| 1930G17 |
| 200203 |
| 2053074 |
| 208930 |
| 209656 |
| 210529 |
| 213157 |
| 216464 |
| 2189953 |
| 22-365 |
| 22-370 |
| 2221 |
| 22365DR |
| 22370 |
| 2314994 |
| 25-09230 |
| 25-09300 |
| 25-22363 |
| 265021 |
| 266687 |
| 26A702 |
| 2800045367 |
| 300117 |
| 303315 |
| 3040315R2 |
| 3040345 |
| 304315R2 |
| 310712R1 |
| 33X18 |
| 362232 |
| 376372R1 |
| 3H248 |
| 3H2485 |
| 3H2845 |
| 420822 |
| 423384 |
| 424186 |
| 4351577 |
| 4368391 |
| 43981 |
| 47304 |
| 474188 |
| 4832 |
| 54238 |
| 5530833 |
| 56542 |
| 568990 |
| 57427 |
| 575010 |
| 60473 |
| 6337 |
| 647626 |
| 647627 |
| 653639 |
| 6616816141 |
| 676352R1 |
| 676352R11 |
| 676620R1 |
| 700781 |
| 700781A |
| 700794 |
| 700796 |
| 700796A |
| 700796A7 |
| 727TG |
| 730378A |
| 741302 |
| 88GB330P16 |
| 88GB330P40 |
| 88GB330P86 |
| 9029260 |
| 9034205 |
| 9043891 |
| 9043981 |
| 9080860 |
| 9184259 |
| A6104 |
| AE1618 |
| B1764537 |
| 5355 |
| 6712 |
| C9PZ 8620 DU |
| D21891 |
| FB101 |
| FB22365 |
| GT22366 |
| M6104 |
| M6204 |
| MF8350 |
| MF8355 |
| OM11888 |
| P832 |
| RECMF8350 |
| RECMF8355 |
| REMF8350 |
| REMF8355 |
| S2698 |
| T22363 |
| V1091015 |
| W304731 |
| Y568990 |
| ZAH22365 |
| ZJG22374 |
| 69 |
| 390M |
| 51369 |
| 51734 |
| 52175 |
| 526485 |
| 53 |
| 19019 |
| 54223 |
| 51733 |
| 30296 |
| 18 |
| 1822365 |
| 11617 |
| 2509230 |
| 2509300 |
| 556 |
| 437 |
| 57 |
| 5350 |
| 22365 |
| 22374 |
| 77862M |
| 77862J |
| 88GB232P10 |
| 818M |
| C9PZ8620DU |
| 2522363 |
| 22365MK |
| 79380 |
| 845385 |
| 8522090 |
| 8057 |
| TR22363 |
| 15A0920 |
| 21366 |
| A57 |
| 376352R11 |
| RPF5360 |
| B5350 |
| B22370A |
| 178506 |
| 11920Y4000 |
| 11920R3000 |
| 49049092 |
| 10041A7 |
| B22374A |
| B24375A |
| B22372A |
| 1136710360 |
| 118547 |
| 178581 |
| 5360 |
| 219 |
| 379H |
| 709502R1 |
| 387H |
| D11024351 |
| D11024352 |
| 27002030 |
| 6610816141 |
| 3H-2485 |
| 3H-2845 |
| 70350 |
