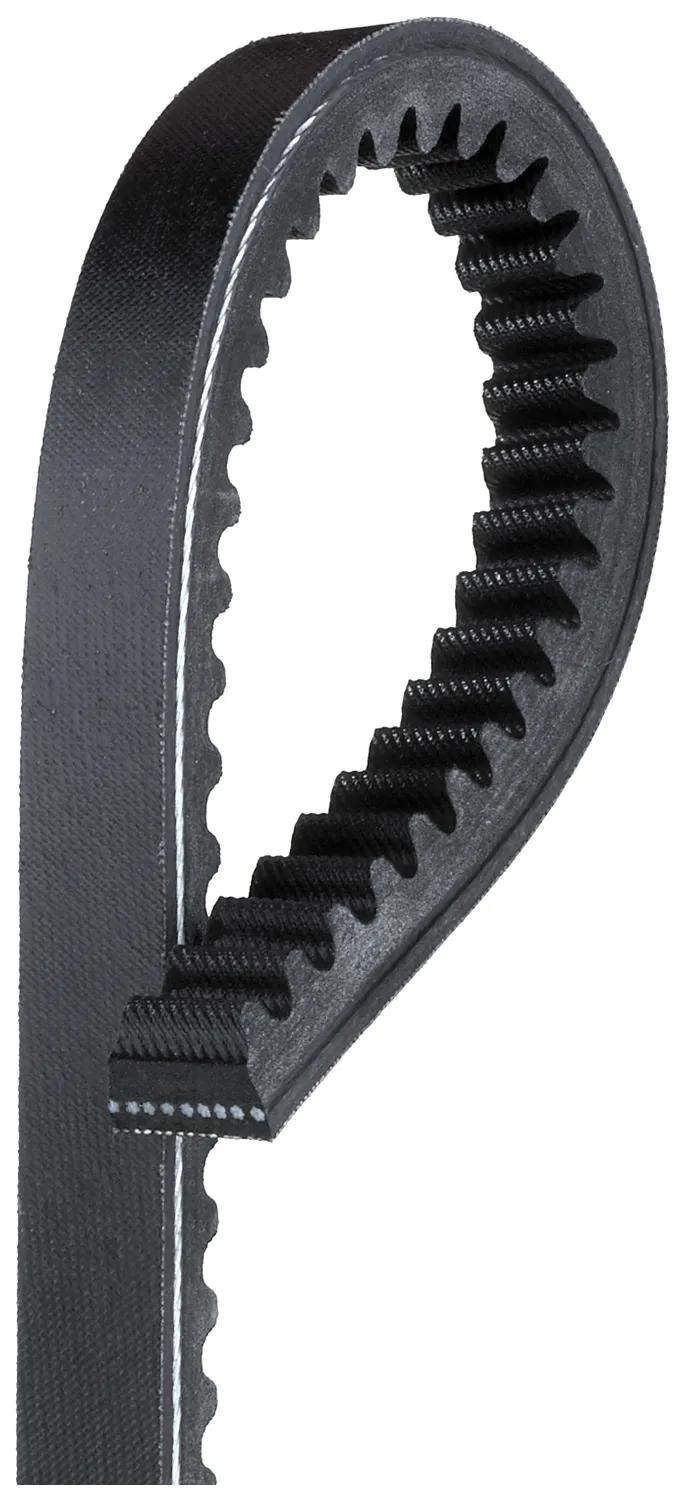

Truck & Bus V-Belt, L: 44.25 in, W: 19/32 in
#GATTR22443
Features & Benefits
- Meets SAE J636b and SAE J637 specifications.
- Oil and heat-resistant construction throughout.
- Special tensile cords give high stretch resistance
- Special notch design resists cracking while providing tensile member support during operation.
- Deep notch pattern also allows greater flexibility over small diameter pulleys and helps keep the belt cool.
Specifications
| Angle | 40 deg |
| Belt Top Width | 1/2 to 5/8 in (1.27 to 1.6 cm) |
| Construction | Notched |
| Length | 44.83 in |
| Material | Polyester |
| Notched | Yes |
| # of Grooves | 1 |
| Section | RA |
| Length Range | 40 to 44.99 in |
| Type | Truck & Bus V-Belt |
| Weight | 0.47 lb (0.21 kg) |
| Width | 19/32 in (1.5 cm) |
Interchanges & Equivalent parts:
| 027074374 |
| 22450 |
| GYB22450 |
| 027007320 |
| 027136360 |
| 0412021744 |
| 0412121744 |
| 0591020043 |
| 101426 |
| 102238 |
| 118548 |
| 134616A1 |
| 134776 |
| 1560717 |
| 158355 |
| 15A1125 |
| 15A1130 |
| 15V1130 |
| 164229 |
| 168127R1 |
| 178454 |
| 178457 |
| 178507 |
| 178590 |
| 178694 |
| 18-22445 |
| 1859G1 |
| 1916493 |
| 2100719 |
| 21447 |
| 21450 |
| 2190765 |
| 22-446 |
| 22445DR |
| 25-11250 |
| 25-22443 |
| 2800047445 |
| 2800048450 |
| 283049C1 |
| 283049C2 |
| 300077 |
| 300097 |
| 300112 |
| 300E2100 |
| 30265 |
| 3030006186550 |
| 3040357 |
| 3040447 |
| 3110K144 |
| 31TS |
| 33710703524 |
| 35979HA |
| 3640103 |
| 3857B1440 |
| 40MX21 |
| 41138 |
| 420357 |
| 420384 |
| 427507 |
| 4338863 |
| 44182 |
| 448749R1 |
| 44965 |
| 47451 |
| 47613 |
| 49399 |
| 49514 |
| 49562 |
| 49834 |
| 54154 |
| 545874 |
| 552292 |
| 55291 |
| 55647 |
| 56062 |
| 58334 |
| 58670 |
| 6070E4012 |
| 620876 |
| 6380550 |
| 6603311 |
| 675084 |
| 70040549 |
| 701M |
| 9189718 |
| 931004 |
| 93368H |
| 9434 |
| 9934301125 |
| 9934311128 |
| 9951311110 |
| A3028 |
| A4012 |
| B1766845 |
| BH-107 |
| BH-110 |
| BH-113 |
| 5435 |
| 99 |
| C629029C18 |
| C6TZ 8620 F |
| CONN 8620 C |
| DE15710 |
| DL7815 |
| E8HT 8620 T |
| E8HZ 8620 T |
| F400K216 |
| GT22446 |
| GT22446E |
| GT22447 |
| GT22447E |
| GTFL440 |
| L39-1075 |
| MF8430 |
| MS51067C44 |
| N13884 |
| RE684A |
| RECMF8430 |
| REMF8430 |
| S1944 |
| T22443 |
| V1090137 |
| V1090869 |
| V183 |
| V73 |
| VF |
