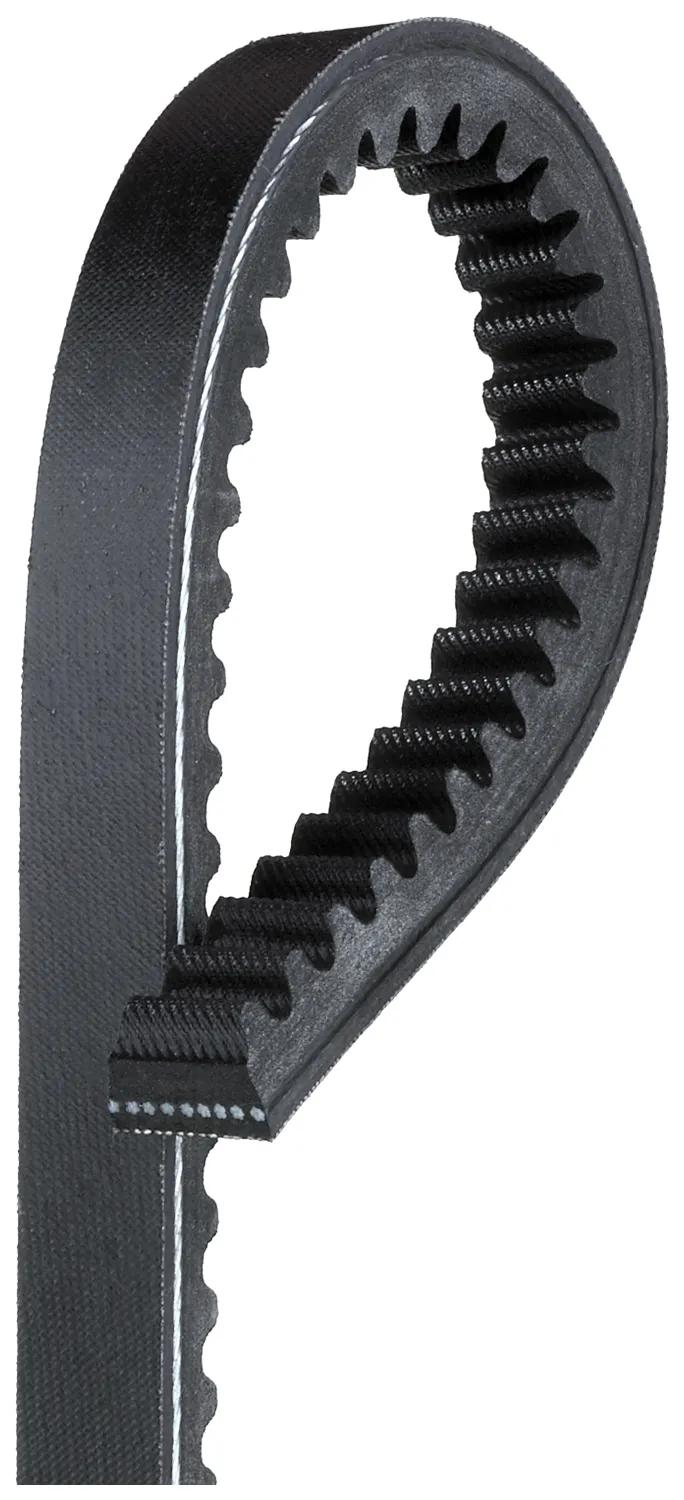

Truck & Bus V-Belt, L: 50.84 in, W: 19/32 in
#GATTR22508
Features & Benefits
- Meets SAE J636b and SAE J637 specifications.
- Oil and heat-resistant construction throughout.
- Special tensile cords give high stretch resistance
- Special notch design resists cracking while providing tensile member support during operation.
- Deep notch pattern also allows greater flexibility over small diameter pulleys and helps keep the belt cool.
Specifications
| Angle | 40 deg |
| Belt Top Width | 1/2 to 5/8 in (1.27 to 1.6 cm) |
| Construction | Notched |
| Length | 51.42 in |
| Material | Polyester |
| Notched | Yes |
| # of Grooves | 1 |
| Section | RA |
| Length Range | 50 to 54.99 in |
| Type | Truck & Bus V-Belt |
| Weight | 0.54 lb (0.24 kg) |
| Width | 19/32 in (1.5 cm) |
Interchanges & Equivalent parts:
| 013870 |
| 22510 |
| GYB22510 |
| GYB22514 |
| 0070060 |
| 0070174 |
| 22514 |
| 027135948 |
| 027135948Y |
| 0412021751 |
| 0412031751 |
| 049004277 |
| 097159 |
| 1001012 |
| 111764 |
| 1136712020 |
| 1252944 |
| 141-0927 |
| 1423812 |
| 15A1285 |
| 164232 |
| 178493 |
| 178615 |
| 18PS398 |
| 193826K11 |
| 193826R1 |
| 193826R11 |
| 1SPS398 |
| 208045025 |
| 22-512 |
| 22419A |
| 2310001049 |
| 2310001098 |
| 25-12830 |
| 25-22508 |
| 2800047510 |
| 2800047512 |
| 3040449 |
| 306910R1 |
| 312990602 |
| 3241002 |
| 34349-00200 |
| 359012C91 |
| 40R50 |
| 4341449 |
| 4369045 |
| 4372381 |
| 4392615 |
| 4500113R1 |
| 45259 |
| 5180610 |
| 527008 |
| 5495 |
| 55-13008 |
| 5I7967 |
| 60657HB |
| 60657HBX |
| 60657K11 |
| 60657K21 |
| 646354 |
| 649443 |
| 6512155 |
| 675966A |
| 69259 |
| 7139533 |
| 78168 |
| 843X |
| 88GB330P137 |
| 88GB330P150 |
| 900T103 |
| 967569 |
| 97820R21 |
| 987513 |
| AX31344 |
| B25230 |
| BH-1744 |
| CE964 |
| D41449 |
| D8HS 8620 AA |
| D8HS 8A615 BA |
| DE41449 |
| DE69045 |
| E1HZ 8620 C |
| GT22512 |
| GT22512E |
| JE-511 |
| L39-1525 |
| MF8495 |
| PGF20017 |
| R600M307 |
| RECMF8495 |
| REMF8479 |
| REMF8495 |
| S2823 |
| S3419 |
| T22508 |
| T24467 |
| T24757 |
| X21457 |
| X21458 |
| ZAH22505 |
| 550680 |
