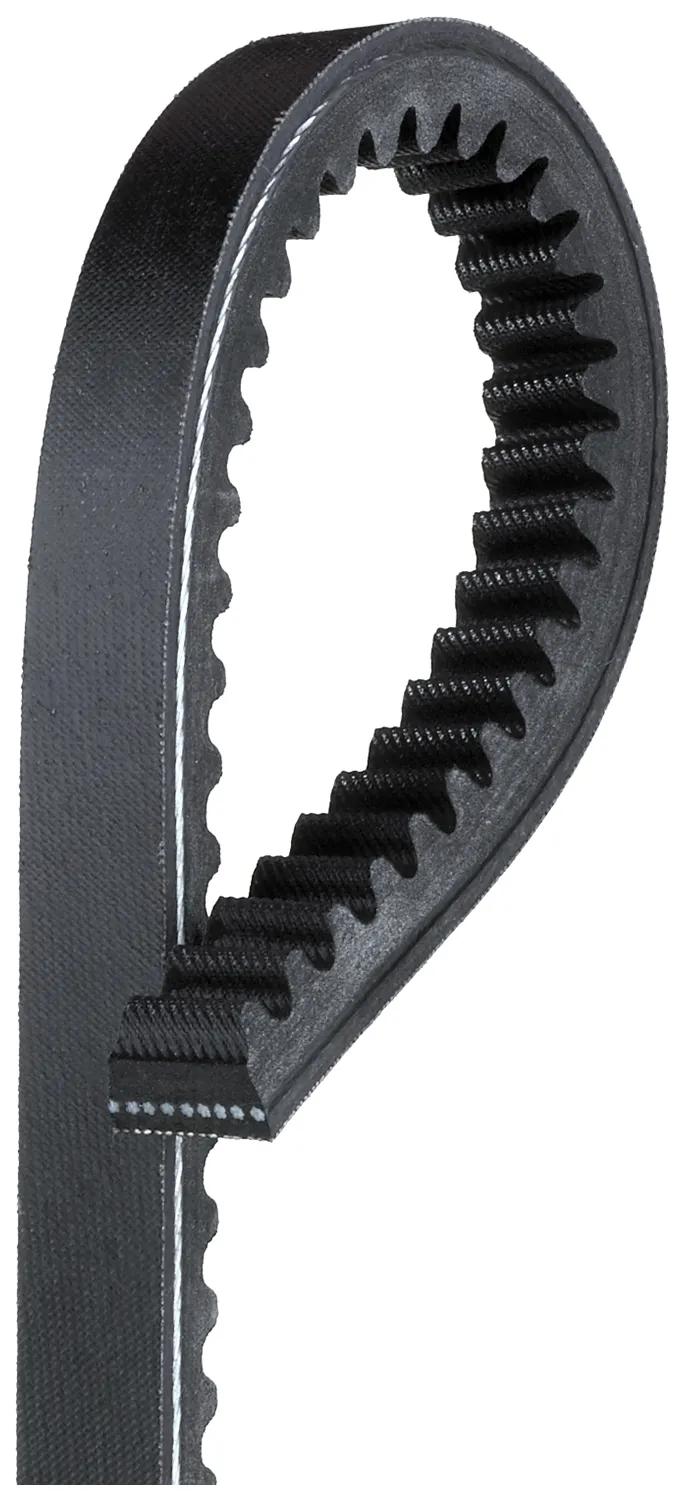

Truck & Bus V-Belt, L: 51.4 in, W: 25/32 in
#GATTR28514
Features & Benefits
- Meets SAE J636b and SAE J637 specifications.
- Oil and heat-resistant construction throughout.
- Special tensile cords give high stretch resistance.
- Special notch design resists cracking while providing tensile member support during operation.
- Deep notch pattern also allows greater flexibility over small diameter pulleys and helps keep the belt cool.
Specifications
| Angle | 36 deg |
| Belt Top Width | 3/4 to 7/8 in (1.91 to 2.24 cm) |
| Construction | Notched |
| Length | 52 in |
| Material | Polyester |
| Notched | Yes |
| # of Grooves | 1 |
| Section | VA |
| Length Range | 50 to 54.99 in |
| Type | Truck & Bus V-Belt |
| Weight | 0.78 lb (0.35 kg) |
| Width | 25/32 in (1.98 cm) |
Interchanges & Equivalent parts:
| 0412032252 |
| 28517 |
| GYB28517 |
| 01887 |
| 0412102230 |
| 049018540 |
| 10859 |
| 120TG |
| 12117 |
| 126787 |
| 0412132252 |
| 049052384 |
| 08051146 |
| 12B1004 |
| 1311H |
| 134086 |
| 134960 |
| 13C152 |
| 153AP |
| 1706547 |
| 1706549 |
| 1708883 |
| 173722 |
| 173782 |
| 175003 |
| 178426 |
| 178627 |
| 191E7070 |
| 192A7 |
| 1B1373 |
| 1B8788 |
| 204930 |
| 204930A |
| 208045155 |
| 20A1305 |
| 213152 |
| 213167 |
| 2310001076 |
| 2312160515 |
| 24512 |
| 25-13030 |
| 25-28514 |
| 27273A |
| 2800050515 |
| 2800051513 |
| 2800051515 |
| 2800071513 |
| 28515 |
| 28515DR |
| 285172 |
| 28-515 |
| 3019X62 |
| 30304B |
| 3034B |
| 3040393 |
| 313482 |
| 32431 |
| 329819 |
| 33X109 |
| 37R58 |
| 3860B1520 |
| 38R65 |
| 39207 |
| 39709 |
| 420844 |
| 426331 |
| 429801 |
| 432996 |
| 4337756 |
| 434023 |
| 4346565 |
| 4346756 |
| 4346765 |
| 4348851 |
| 4355926 |
| 4357158 |
| 45097 |
| 45473B |
| 456T |
| 4616586 |
| 46421 |
| 465595 |
| 465596 |
| 46904 |
| 49725 |
| 49727 |
| 54242 |
| 575817C1 |
| 575817C91 |
| 575818C91 |
| 575819C1 |
| 575819C91 |
| 5UCB355A |
| 5UCB455A |
| 64003 |
| 6409647 |
| 657258 |
| 69998 |
| 700227 |
| 700227A |
| 708583 |
| 74357158 |
| 8001928 |
| 8002455 |
| 80274B |
| 807J |
| 8726931 |
| 8727811 |
| 9031245 |
| 9045097 |
| 91887 |
| 9F6920 |
| A35085 |
| A71682 |
| AE1624 |
| AE1628 |
| ASF6087 |
| B121792 |
| B40018 |
| B43314S |
| B43574 |
| C629029C37 |
| D11025878 |
| D8PZ 8620 C |
| DE46765 |
| DE55926 |
| DE559261 |
