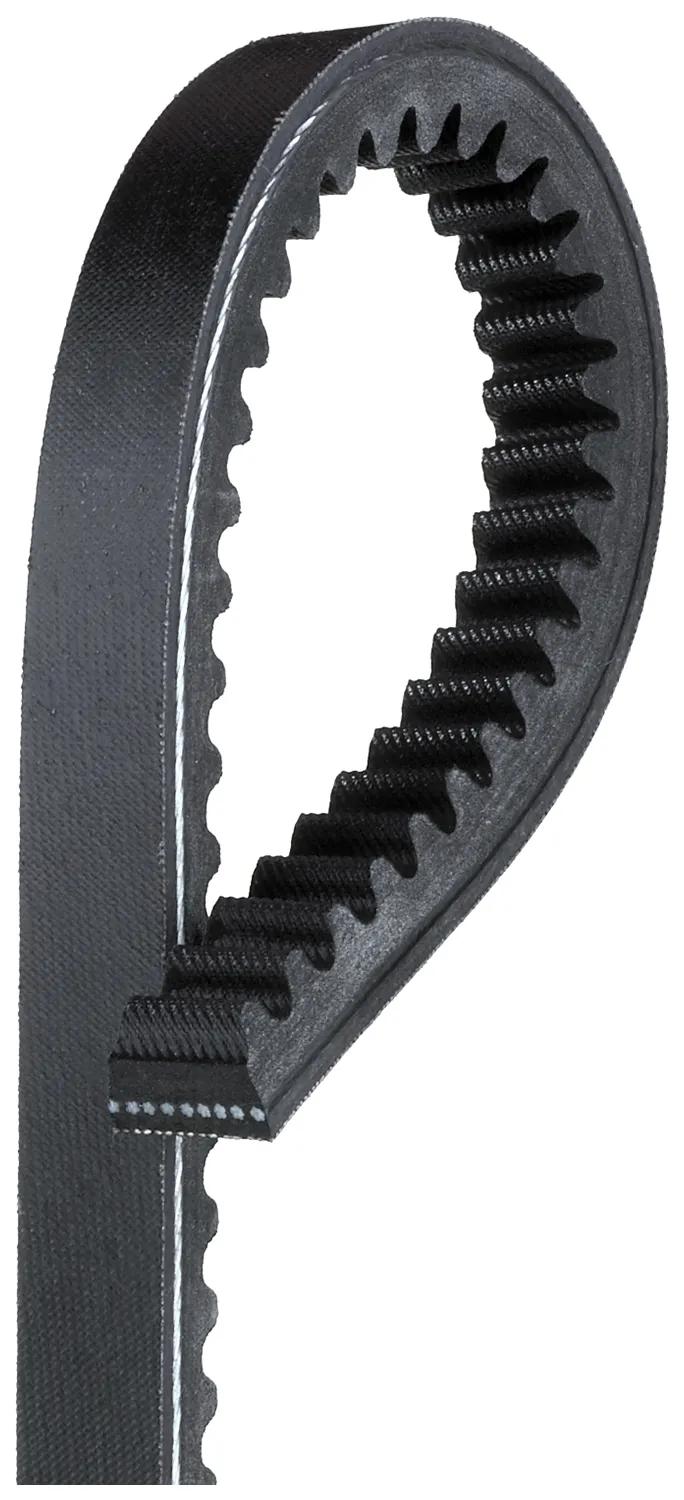

Truck & Bus V-Belt, L: 65.64 in, W: 19/32 in
#GATTR22657
Features & Benefits
- Meets SAE J636b and SAE J637 specifications.
- Oil and heat-resistant construction throughout.
- Special tensile cords give high stretch resistance.
- Special notch design resists cracking while providing tensile member support during operation.
- Deep notch pattern also allows greater flexibility over small diameter pulleys and helps keep the belt cool.
Specifications
| Angle | 40 deg |
| Belt Top Width | 1/2 to 5/8 in (1.27 to 1.6 cm) |
| Construction | Notched |
| Length | 66.22 in |
| Material | Polyester |
| Notched | Yes |
| # of Grooves | 1 |
| Section | RA |
| Length Range | 65 to 69.99 in |
| Type | Truck & Bus V-Belt |
| Weight | 0.68 lb (0.31 kg) |
| Width | 19/32 in (1.5 cm) |
Interchanges & Equivalent parts:
| 013982 |
| 049041679 |
| 22660 |
| GYB22660 |
| 0412021766 |
| 1070A7 |
| 118845 |
| 1336137 |
| 15A1670 |
| 178511 |
| 192777K11 |
| 192777R1 |
| 192777R11 |
| 192777R12 |
| 208043480 |
| 212587 |
| 22-660 |
| 2303119010 |
| 2310001086 |
| 2310001097 |
| 25-16680 |
| 25-22657 |
| 2800081655 |
| 2800081660 |
| 300E3265 |
| 303413225 |
| 308043480 |
| 359010C91 |
| 380060R1 |
| 429173 |
| 429783 |
| 429790 |
| 434159 |
| 434197 |
| 434493 |
| 435185 |
| 48357 |
| 53078 |
| 54096 |
| 56666 |
| 58348 |
| 59819 |
| 63848C91 |
| 673417C91 |
| 674117C1 |
| 674118C1 |
| 6812340512 |
| 683789C1 |
| 683789C91 |
| 71336137 |
| 7C9001 |
| 9091602193 |
| 910132 |
| 9N1327 |
| 9N2802 |
| 9Y4051 |
| 9Y4052 |
| A-71336137 |
| AR70663 |
| B9J 8620 E |
| BH-1743 |
| C0TE 8620 H |
| C9PZ 8620 GE |
| D0TE 8620 C |
| D0TZ 8620 C |
| D2TE 8620 BAA |
| D2TE 8A615 YA |
| D7HA 8620 HA |
| D7HA 8A615 FA |
| D8HT 8620 T |
| D8PZ 8620 T |
| GT22660 |
| GT22660E |
| GT22660T |
| GT22660TA |
| JD-656 |
| JE-657-C |
| JE-660 |
| ME900765 |
| MF8645 |
| RECMF8645 |
| REMF8645 |
| S3124 |
| T22657 |
| T38546 |
| V1090144 |
| V1090883 |
| 9N1320 |
