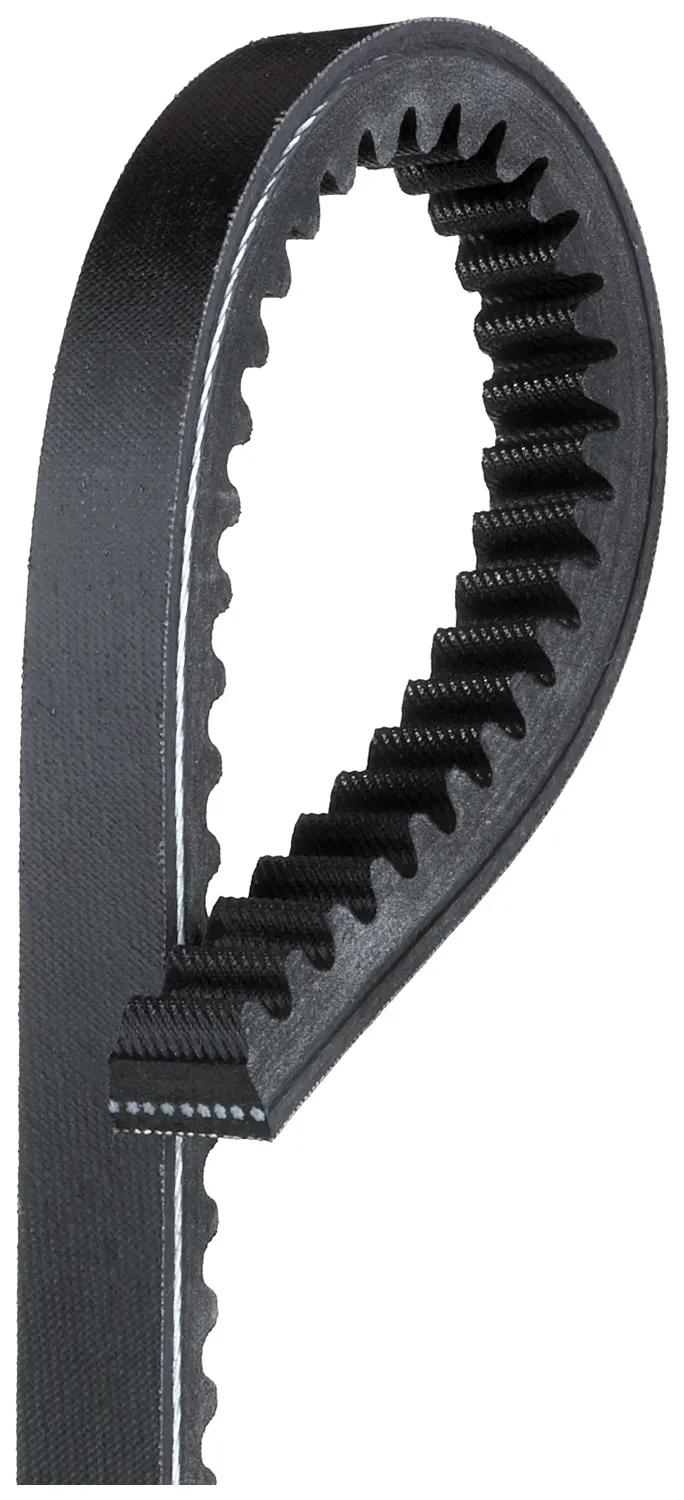

Truck & Bus V-Belt, L: 66.43 in, W: 21/32 in
#GATTR24664
Features & Benefits
- Meets SAE J636b and SAE J637 specifications.
- Oil and heat-resistant construction throughout.
- Special tensile cords give high stretch resistance.
- Special notch design resists cracking while providing tensile member support during operation.
- Deep notch pattern also allows greater flexibility over small diameter pulleys and helps keep the belt cool.
Specifications
| Angle | 36 deg |
| Belt Top Width | 5/8 to 3/4 in (1.6 to 1.91 cm) |
| Construction | Notched |
| Length | 67 in |
| Material | Polyester |
| Notched | Yes |
| # of Grooves | 1 |
| Section | TA |
| Length Range | 65 to 69.99 in |
| Type | Truck & Bus V-Belt |
| Weight | 0.77 lb (0.35 kg) |
| Width | 21/32 in (1.68 cm) |
Interchanges & Equivalent parts:
| 1C6751 |
| 178716 |
| 17A1685 |
| 17A1690 |
| 1S1126 |
| 24665 |
| 24673 |
| 25-16900 |
| 25-24664 |
| 2L2991 |
| 2L5846 |
| 2N8947 |
| 2R6920 |
| 2S8727 |
| 355 |
| 385120R2 |
| 3M6276 |
| 3N8258 |
| 3N8259 |
| 420549 |
| 422953 |
| 424853 |
| 424988 |
| 427587 |
| 430103 |
| 4325382 |
| 4360886 |
| 46091 |
| 4N6374 |
| 51836 |
| 582663C1 |
| 7S9435 |
| 7S9802 |
| 7S9859 |
| 7S9860 |
| 8003371 |
| 88GB29301P28 |
| 8M1714 |
| 8M1715 |
| 8M1817 |
| 948005 |
| B-24673-A |
| RECMF3660 |
| RECMF3665 |
| RECMF3670 |
| T24664 |
| V17X1700 |
| 54011 |
| 2516900 |
| 22665 |
| 9660 |
| 2524664 |
| B24673A |
| TR24664 |
| RPF5655 |
| COTE8620A |
| C0TE8620A |
| D0HS8620F |
| D6HS8620AA |
| 264233 |
| 10H0510 |
| 9L-7747 |
| 5M-5346 |
| B22654A |
| 3040454 |
| 178715 |
| D11025025 |
| D11025024 |
| V1091037 |
| 646356 |
| 8001938 |
| V1090884 |
| 70264233 |
| TR22664 |
| 6N-6652 |
| 6N-4525 |
| 1CH0510 |
| D0HS8A615F |
| C9PZ8620EJ |
| JE670 |
| 612033C1 |
| 683847C1 |
| 612175C11 |
| 479214C1 |
| 683449C1 |
| 70273193 |
| 9L-6648 |
| B22674A |
| B22660A |
| 118845 |
| 22530 |
| 22680 |
| JE675C |
| 380060R1 |
| 683549C1 |
| JE674 |
| C3TE8620M |
| C7TZ8620F |
| 518419R91 |
| 674117C1 |
| 528419R91 |
| 683848C91 |
| 5655 |
| 683548C91 |
| C3TE8A615T |
| C7TA8620R |
| 9164201 |
| 689 |
| ME900765 |
| 163222 |
| 22670 |
| 136H |
| 2522664 |
| C7TA8620J |
| 22660 |
| 9091602193 |
| 8001937 |
| 1213134H91 |
| 385120R1 |
| 479215C91 |
| 649444 |
| D11024023 |
| 9L-6647 |
| BH264 |
| 3040372 |
| 212587 |
| D11025023 |
| 683548C92 |
| 674118C1 |
| 47 |
