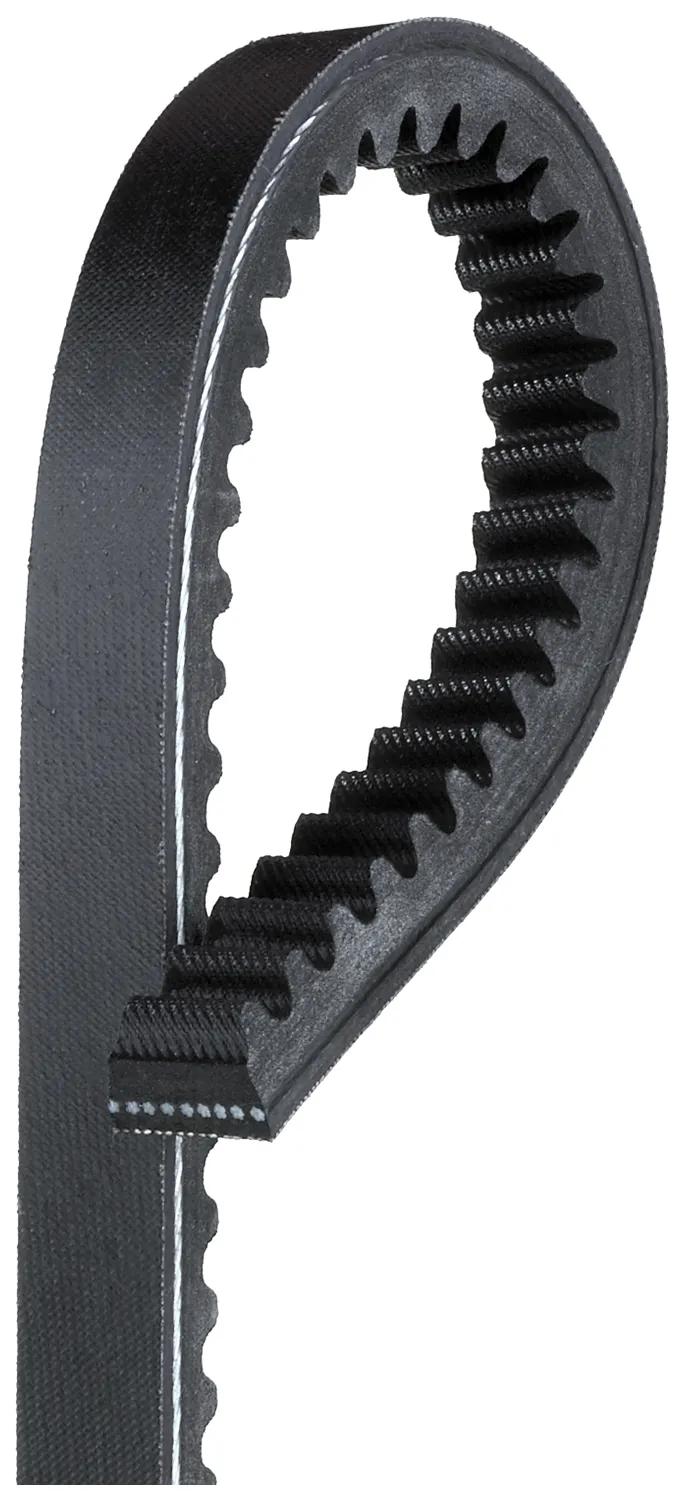

Truck & Bus V-Belt, L: 67.2 in, W: 7/8 in
#GATTR30672
Features & Benefits
- Meets SAE J636b and SAE J637 specifications.
- Oil and heat-resistant construction throughout.
- Special tensile cords give high stretch resistance.
- Special notch design resists cracking while providing tensile member support during operation.
- Deep notch pattern also allows greater flexibility over small diameter pulleys and helps keep the belt cool.
Specifications
| Angle | 36 deg |
| Belt Top Width | 7/8 to 1 in (2.24 to 2.54 cm) |
| Construction | Notched |
| Length | 67.78 in |
| Material | Polyester |
| Notched | Yes |
| # of Grooves | 1 |
| Section | W |
| Length Range | 65 to 69.99 in |
| Type | Truck & Bus V-Belt |
| Weight | 1.14 lb (0.52 kg) |
| Width | 7/8 in (2.24 cm) |
Interchanges & Equivalent parts:
| 069245 |
| 10R1558 |
| 13671156 |
| 2135309 |
| 2136711 |
| 2136712 |
| 22A1700 |
| 22A1705 |
| 25-30672 |
| 253391R1 |
| 2H1383 |
| 2M8183 |
| 2W4547 |
| 30670 |
| 30675 |
| 30679 |
| 3L7540 |
| 40510A |
| 41219 |
| 46817 |
| 47042DB |
| 49833 |
| 49954 |
| 50366 |
| 5L5015 |
| 7010584 |
| 7L7099 |
| 7M7477 |
| 7M7864 |
| 8M0941 |
| 8M940 |
| 8M941 |
| C24912 |
| DF55031 |
| DP745 |
| T30672 |
| 53077 |
| 57584 |
| 2530672 |
| TR30672 |
