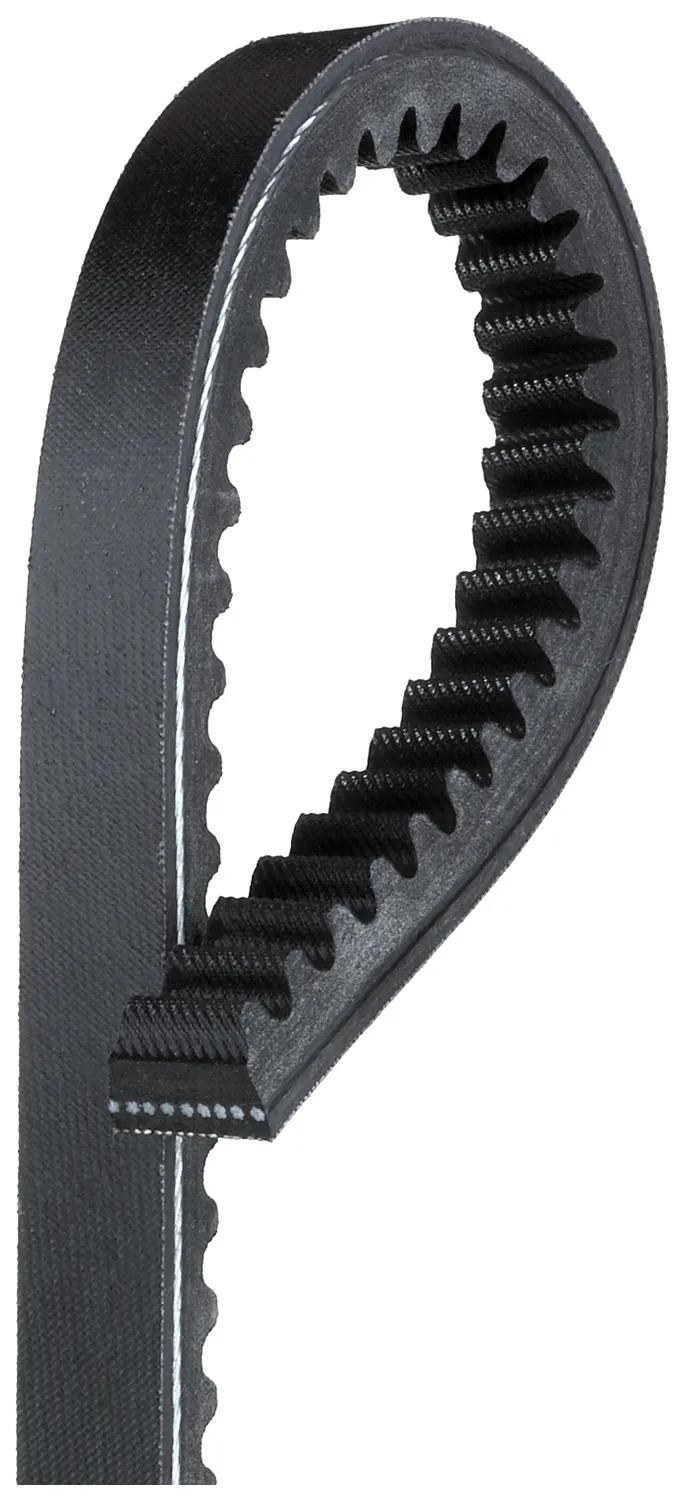

Truck & Bus V-Belt, L: 68.09 in, W: 25/32 in
#GATTR28680
Features & Benefits
- Meets SAE J636b and SAE J637 specifications.
- Oil and heat-resistant construction throughout.
- Special tensile cords give high stretch resistance.
- Special notch design resists cracking while providing tensile member support during operation.
- Deep notch pattern also allows greater flexibility over small diameter pulleys and helps keep the belt cool.
Specifications
| Angle | 36 deg |
| Belt Top Width | 3/4 to 7/8 in (1.91 to 2.24 cm) |
| Construction | Notched |
| Length | 68.67 in |
| Material | Polyester |
| Notched | Yes |
| # of Grooves | 1 |
| Section | VA |
| Length Range | 65 to 69.99 in |
| Type | Truck & Bus V-Belt |
| Weight | 1.02 lb (0.46 kg) |
| Width | 25/32 in (1.98 cm) |
Interchanges & Equivalent parts:
| 0412122268 |
| 0412132268 |
| 127258 |
| 154356 |
| 161035004 |
| 169911 |
| 1715977 |
| 178676 |
| 196A |
| 20A1730 |
| 23HD1312 |
| 25-17280 |
| 25-28680 |
| 28-690 |
| 2S6913 |
| 3003196 |
| 328927R11 |
| 390460R1 |
| 390460R2 |
| 4312153 |
| 4314418 |
| 4321275 |
| 43212752 |
| 4353138 |
| 4353698 |
| 4353699 |
| 4360172 |
| 4364787 |
| 4373752 |
| 4616602 |
| 4616603 |
| 56732 |
| 56736 |
| 5AD055 |
| 61658 |
| 81279A |
| 81279AB |
| 81279B |
| 88GB330P198 |
| 9127258 |
| 9M7220 |
| 9M7221 |
| A169911 |
| AE1640 |
| B1163169 |
| BRE2193 |
| BRF2193 |
| DE131522 |
| DE531381 |
| DE531382 |
| DE531383 |
| DE64787 |
| DE647872 |
| DT2401AA1 |
| FSK25575 |
| J0038740 |
| N0038744 |
| RECMF9665 |
| RECMF9670 |
| T28680 |
| DE647873 |
| 41253 |
| 428 |
| 6 |
| 2517280 |
| 228 |
| 2528680 |
| TR28680 |
| 28680 |
| 28683 |
| 28690 |
| D11026116 |
| D11026115 |
| 508H |
