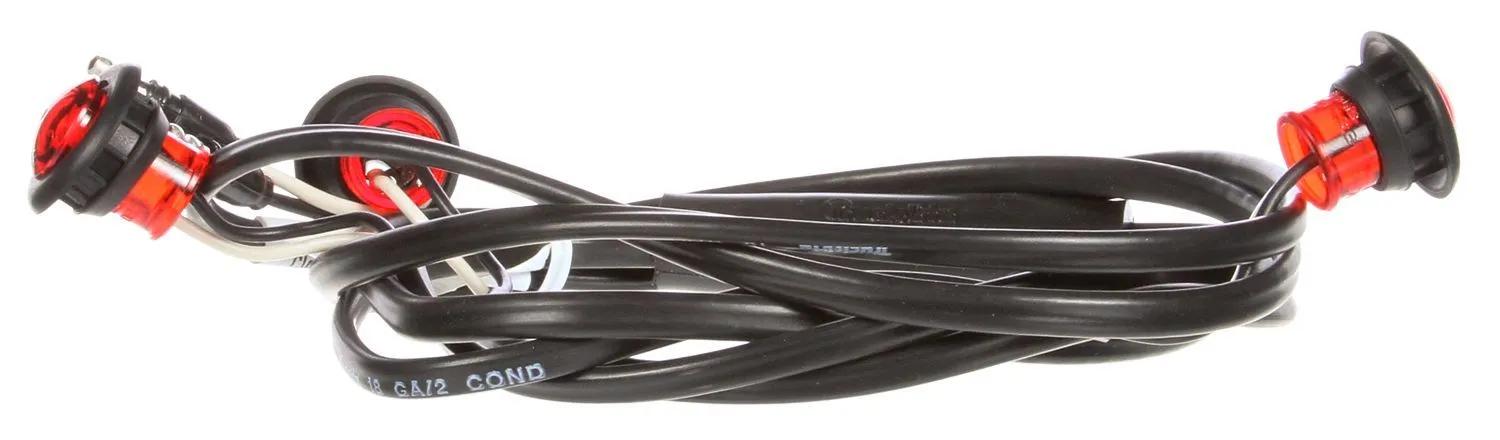

Truck-Lite 33 Series LED ID Light Assembly, Red, Round, 3 Lights, Hardwired, 12V, Kit
#TRL33740R
Product Overview
33 Series LED ID Light Assembly, round shape, red lens, 3 lights, black housing, hardwired design, 12V operation, includes gasket, grommet mount. Compact and durable polycarbonate construction, ideal for transportation industry applications.Identification Bar, 1 Diode, Hardwired, Grommet, Polycarbonate, Red, 0.97 in H, 0.05 in L, Light Function: P2, Round, 0.75 in, 12 V, Warranty: Limited Lifetime, 0.72 in W
Features & Benefits
- US patent #6612728
- World smallest LED marker lamp for the transportation industry
- Hardwired lamp design is easily retrofitted
- Requires 3/4'' mounting hole
- Additional part numbers available with extended harness lengths - call customer service for details
Specifications
| Contents | 3 Lamp Id Assembly |
| Depth | 31/32 in |
| Height | 31/32 in |
| Kit (Y/N) | Yes |
| Length | 23/32 in |
| Lens Color | Red |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount/Trim Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | .180 Bullet, Standard |
| Quantity | 1 |
| Series | 33 Series |
| Shape | Round |
| Size | 0.75 in |
| Type | ID Light Assembly |
| UPC | 735111134442 |
| VMRS Code | 034-004-149 |
| Volt | 12V |
| Warranty | Limited Lifetime |
| Weight | 0.54 lb |
| Width | 23/32 in |
| Wire Gauge | 16 ga |
| Wire Length | 64 in |
| Connection Type | Hardwired |
| Current Rating | 0.05 amp |
| Housing Color | Black |
| Light Function | P2 |
| Light Type | LED |
| Mounting Type | Grommet |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE |
| Voltage Rating | 12 V |
| Product Category | Identification Bar |
Interchanges & Equivalent parts:
| 57715 |
| 33740R |
| 309288 |
| 763912 |
| 814400 |
| 96330 |
| 970035734 |
| 7892 |
| 841333740R |
| 703050293 |
| TL33740R |
| TLD33740R |
| TRL33740R |
| 1586074 |
| TRU33740R |
| 8413-33740R |
| LIT33740R |
| TL 33740R |
| TL 33740R |
| TLT 33740R |
| 434824 |
| 819360 |
