Truck-Lite 35 Series Identification Bar, LED, Red, Polycarbonate, Rectangular, 6 in Centers, Silver, 12V Kit
#TRL35740R
Product Overview

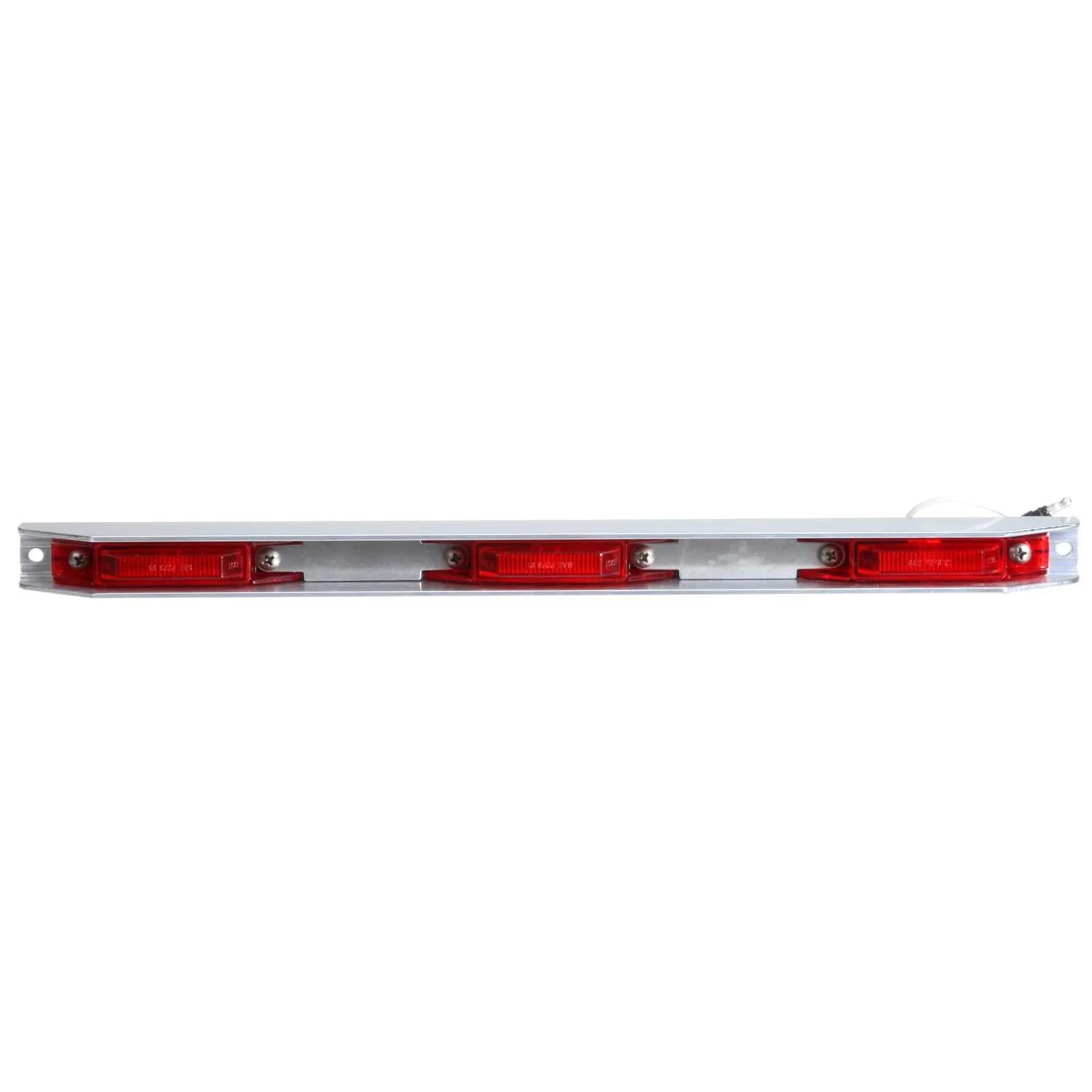

35 Series LED Identification Bar featuring a rectangular red lens with 3 lights spaced 6 inches apart. Constructed with durable polycarbonate material and a silver aluminum housing, this 12V kit includes lamps and wiring. Designed for minimal space applications with a slim 1-inch width ideal for upper rail mounting. Complies with FMVSS 108, CMVSS 108, DOT, and SAE standards.Identification Bar, Fit 'N Forget M/C, LED, 2 Screw Bracket, Polycarbonate, Red, 1 in H, 0.05 in L, Light Function: P2, P3, Rectangular, 6 in, Standards: FMVSS 108, CMVSS 108, DOT, SAE, 12 V, Warranty: Limited Lifetime, 17 in W
Features & Benefits
- Designed to fit applications requiring minimal space
- Slim 1" width is perfect for upper rail mounting
- Draws less current, allowing more power for other vehicle requirements
Specifications
| Amps | 0.15 amp |
| Color | Red |
| Contents | Identification Bar, Lamps, Wiring |
| Current Major | 0.05 amp |
| Depth | 1-11/16 in |
| Dimension | 4 in L x .75 in W x 1.25 in D |
| Fits Pigtail Part #(s) | 96996 |
| Height | 1 in |
| Includes Gasket | No |
| Kit (Y/N) | Yes |
| Lamps Included | Yes |
| Lamp Type | Model 35 ID Bar |
| LED | Yes |
| Length | 23 in |
| Lens Color | Red |
| Lens Material | Polycarbonate |
| Lens Width | 4 in |
| Material | Polycarbonate |
| Mount/Trim Material | Aluminum |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| Plug Side One | Fit 'N Forget M/C |
| Plug Side Two | .180 Bullet, Standard |
| Quantity | 1 |
| Regulations | FMVSS 108, CMVSS 108, DOT, SAE |
| Series | 35 Series |
| Shape | Rectangular |
| Size | 6 in |
| Style | 2 1/2 in Oval, LED, Bar |
| UPC | 735111000000 |
| Volt | 12V |
| Warranty | Limited Lifetime |
| Weight | 1.09 lb (0.49 kg) |
| Width | 17 in |
| Wire Gauge | 16 ga |
| Wire Length | 6 in |
| Lens Height | 59/64 in |
| Connection Type | Fit 'N Forget M/C |
| Current Rating | 0.15 amp |
| Housing Color | Silver |
| Light Function | P2, P3 |
| Light Type | LED |
| Mounting Type | 2 Screw Bracket |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE |
| Voltage Rating | 12 V |
| Product Category | Identification Bar |
Interchanges & Equivalent parts:
| 58011342 |
| 5129412000 |
| 14200299 |
| 419272401 |
| 144607001 |
| 71353599 |
| 35740R |
| 810320 |
| 77040483 |
| 893959740 |
| 5041549 |
| 841335740R |
| 701117106 |
| 40321 |
| 9029A32509 |
| 810000725893959000 |
| HT50601563 |
| TL35740R |
| TLD35740R |
| TRU35740R |
| LB1030R |
| LED8523RX |
| 1603R |
| 49212-5GR0 |
| 8413-35740R |
| LIT35740R |
| TL 35740R |
| TL 35740R |
| TLT 35740R |
| M20343R |
| PTS160-3R |
| TKL35740R |
| 492125 |
| 49122 |
| 611229 |
