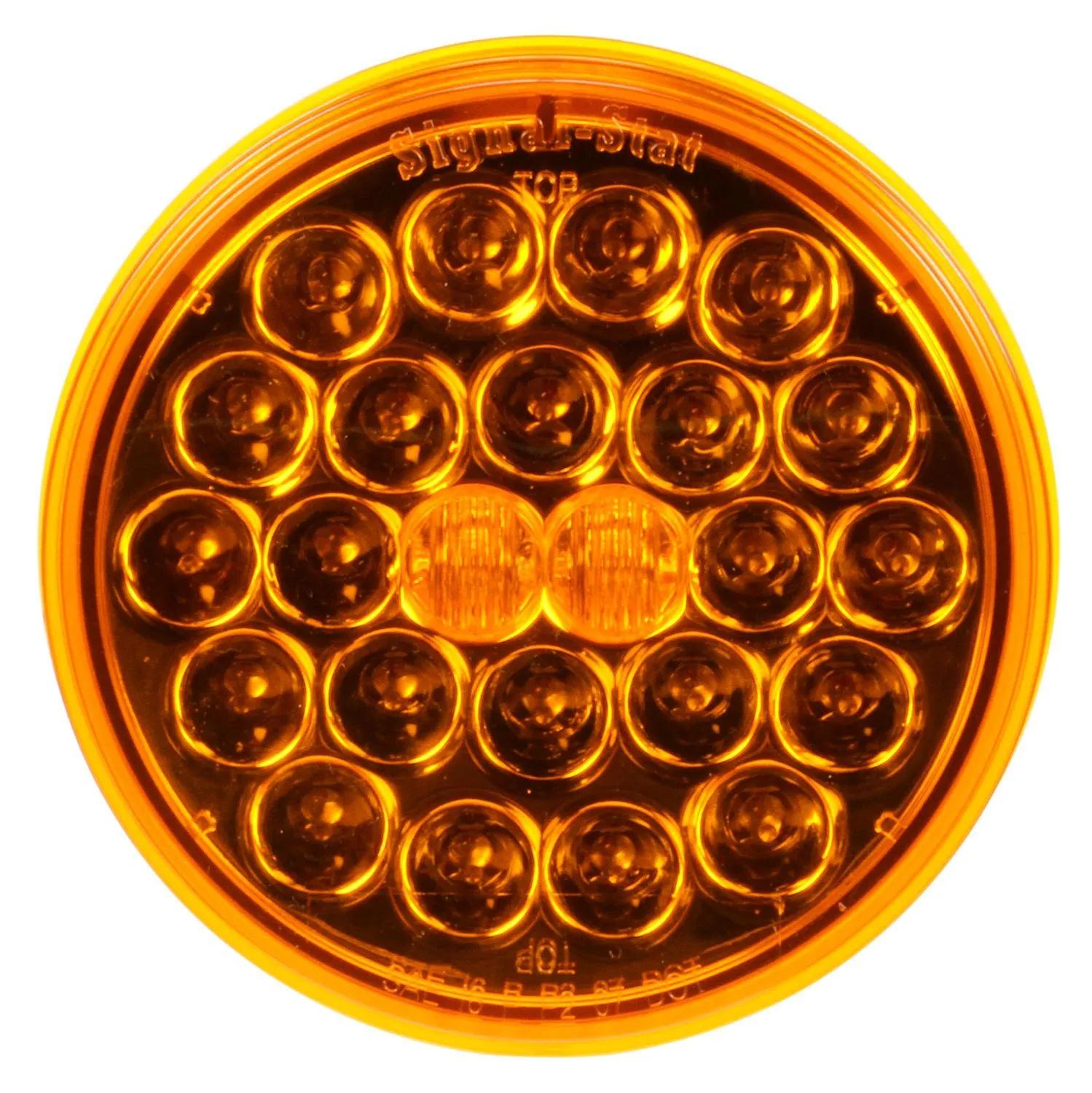

Truck-Lite Signal-Stat Front/Park/Turn Light, LED, 24 Diode, Yellow, Round, Polycarbonate, 12V, PL-3
#TRL4050A
Product Overview
Truck-Lite Signal-Stat front/park/turn light featuring a yellow round lens with 24 LEDs. Designed for 12V systems with PL-3 connection, this LED light offers a unique full pattern light output. Epoxy-encapsulated electronics protect against moisture and corrosion, ensuring durability and reliability. The LED technology provides less current draw, increasing battery and alternator life while offering resistance to shock and vibration.Front/Park/Turn Light, 24 Diode, LED Bulb, PL-3, Grommet, Polycarbonate, Yellow, 4.31 in H, Light Function: I6, P, P2, Signal-Stat, Round, 12 V, Warranty: 2 Years, 4.31 in W
Features & Benefits
- Popular on owner/operator show trucks
- Uses standard right-angle connection
- Unique LED array displays a full pattern light output design
- Epoxy-encapsulated electronics prevents damage from moisture and corrosion
- Less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements
- LEDs have no filament, therefore are extremely resistant to shock and vibration
Specifications
| Bulb Type | LED |
| Connection Type | PL-3 |
| Current Major | 0.38 amp |
| Current Minor | 0.03 amp |
| Depth | 1-33/64 in |
| Diamond Shell (Y/N) | No |
| Function | I, P2, S, T |
| Height | 4-5/16 in |
| Housing Color | Amber |
| Kit (Y/N) | No |
| Length | 4-5/16 in |
| Lens Color | Yellow |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mounting Type | Grommet |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Plug Side Two | No Plug |
| Quantity | 1 |
| Shape | Round |
| Standards | FMVSS 18 |
| Technology | LED |
| Type | 24 Diode |
| UPC | 735111000000 |
| VMRS Code | 034-003-141 |
| Volt | 12V |
| Voltage Rating | 12 V |
| Warranty | 2 Years |
| Weight | 0.57 lb |
| Width | 4-5/16 in |
| Wire Gauge | 16 ga |
| Current Rating | 0.71 amp |
| Light Function | I6, P, P2 |
| Product Line | Signal-Stat |
| Product Category | Front/Park/Turn Light |
Interchanges & Equivalent parts:
| 44203Y |
| G4003 |
| TRU4050A |
| 8413-4050A |
| 1217A-1 |
| 126-4040A |
| 40200A |
| 417YA |
| FLT400012A |
| G4003-5 |
| LED4000-56A |
| LED4000-61A |
| LED4000A |
| LIT4050A |
| M417TA-2 |
| M4260A |
| MC-53AB |
| PTL4048A |
| STL-43AB |
| STL-55AB |
| STL42AB |
| T40-AA0A-1 |
| TL 4050A |
| TL4050A |
| TLD4050A |
| VSM4064A |
| VSM44644A |
| VSM4464A |
| 1812420223 |
| 3153 |
| 4050AS1G |
| 426A |
| 4321 |
| 44644A |
| 52923GR0 |
| 54343GR0 |
| 54363GR0 |
| GRT53413 |
| GRT54333 |
| LED4000-24A |
| LED40Y19 |
| LL010301 |
| M417A |
| M417TA |
| M417TAP |
| M42100Y |
| M42322Y |
| M42500Y |
| PTL4010A |
| PTL4018A |
| PTL4040A |
| SE4000A |
| STT43AL |
| STT43RWL |
| STT55AL |
| TKL4050A |
| TUR5100Y |
| V417KTA |
| 34003033 |
| ROS34003033 |
| 4050A-3 |
