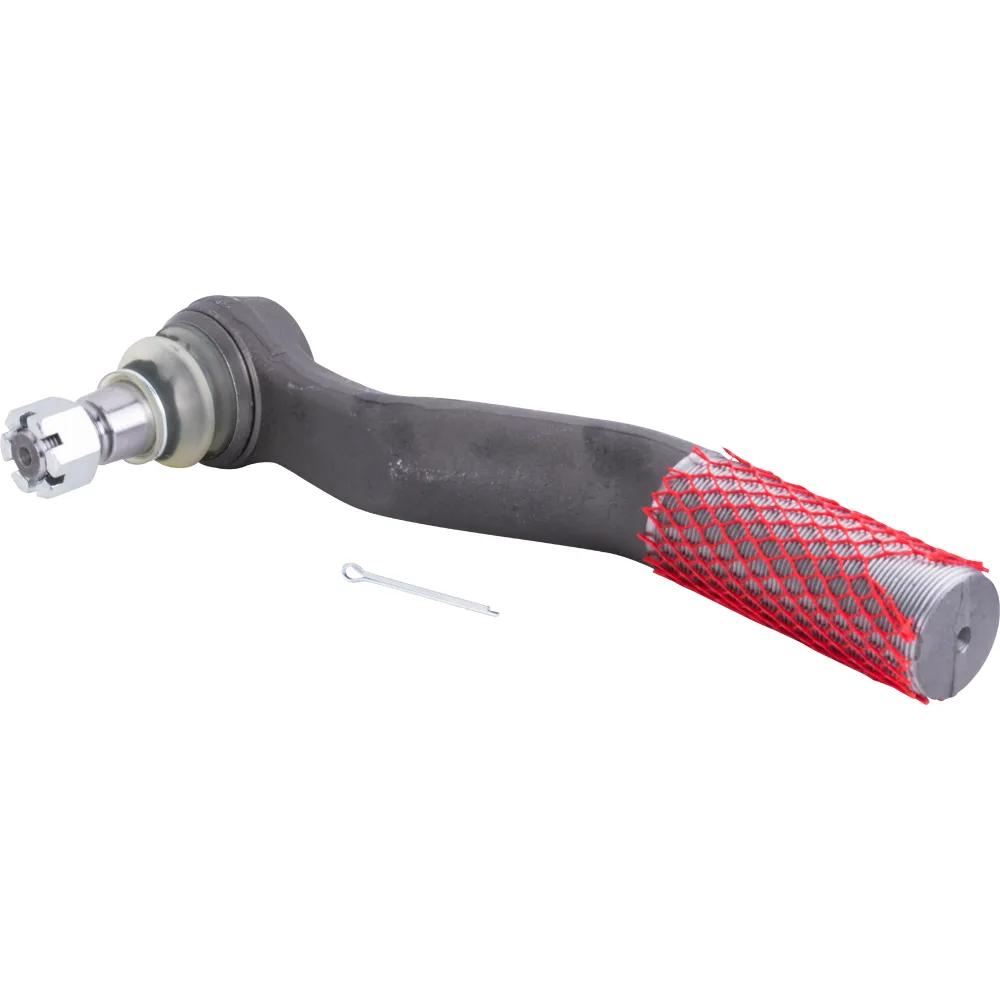

Truck Tie Rod Ends - 12.69 in. Length - Right Hand Thread Extrenal for Multi Applications
#TSAHES3030R
Features & Benefits
- Serviceable, pre-filled with high performance grease with a permanent sealed boot.
- Eliminates any contamination for extended service life.
- One-piece forged solid steel socket and hardened upper bearing for strength and durability.
- Induction hardened and polished full ball stud for precision steering.
- High strength steel lower seat for maintaining proper angulation.
- Self adjusting wear take-up pre-loaded heavy-duty spring, automatically reduces lash.
Specifications
| Center to Center Length | 12-11/16 in (32.23 cm) |
| Large Taper Diameter | 1-1/4 in (3.18 cm) |
| Right or Left Hand Threads | RH |
| Small Taper Diameter | 1-5/64 in (2.74 cm) |
| Taper | 1/8 in (0.32 cm) |
| Thread | 1-7/8 in-12 (4.76 cm) |
| Type | Straight - 90 deg |
Interchanges & Equivalent parts:
| 310-395E |
| DICES3030R |
| ES3030R |
| R230104 |
| 150061 |
| P150007 |
