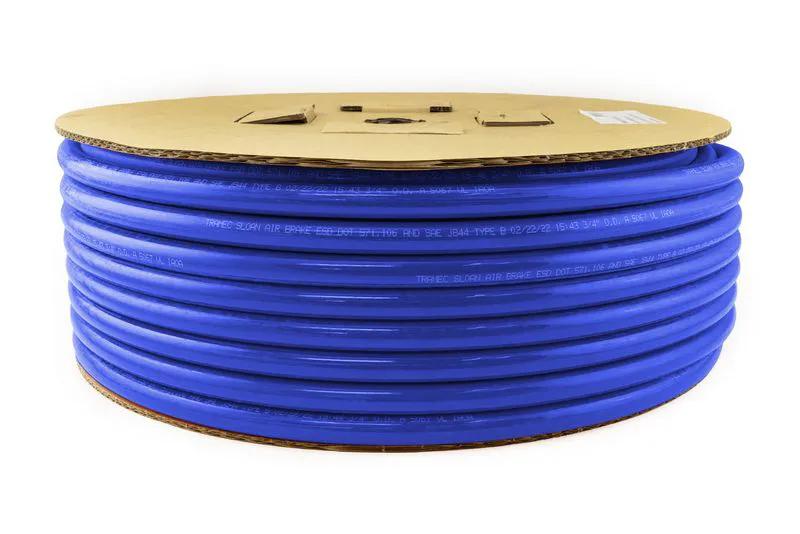

Tubing, Nylon, Blue, 250 ft Length, 800 psi Maximum Pressure, 191 psi
#SLNA451034B-250
Product Overview
This tubing was developed specifically for air brake applications. It can also be used in a wide range of instrumentation and secondary air systems, such as truck & trailer air brake systems, auxiliary air systems, formed and straight air brake harness assemblies.Tubing, Nylon, Blue, 250 ft Length, 800 psi Maximum Pressure, 191 psi, Standards: SAE J844 and DOT FMVSS 571.147, -40 to 200 °F, 3/4 in Tube O.D., 0.093 in Wall Thickness
Features & Benefits
- UV and OZONE resistant
- Resistant to gasoline, diesel fuel and other chemicals
- Great Resistance against aging from heat and light
- Great flexibility
- 191 psi working pressure
- Manufactured out of heat & light stabilized nylon
- Tubing from 3/8 in to 3/4 in OD have a double-wall construction with a nylon core, synthetic fiber braid & nylon cover type B
- Temperature range tramec sloan air brake tubing is designed for a wide operating temperature range: -40 to 200 °F (-40 to 93 °C)
- Colors available tubing comes standard in black, blue, red, green, orange, and yellow, special colors are also available upon request, contact customer service for more information
Specifications
| Color | Blue |
| Length | 250 ft |
| Material | Nylon |
| Maximum Pressure | 800 psi |
| Temperature Range | -40 to 200 °F |
| Tube O.D. | 3/4 in |
| Pressure Rating | 191 psi |
| Standards | SAE J844 and DOT FMVSS 571.147 |
| Wall Thickness | 0.093 in |
| Manufacturer Part Number | A451034B-250 |
| Product Category | Tubing |
