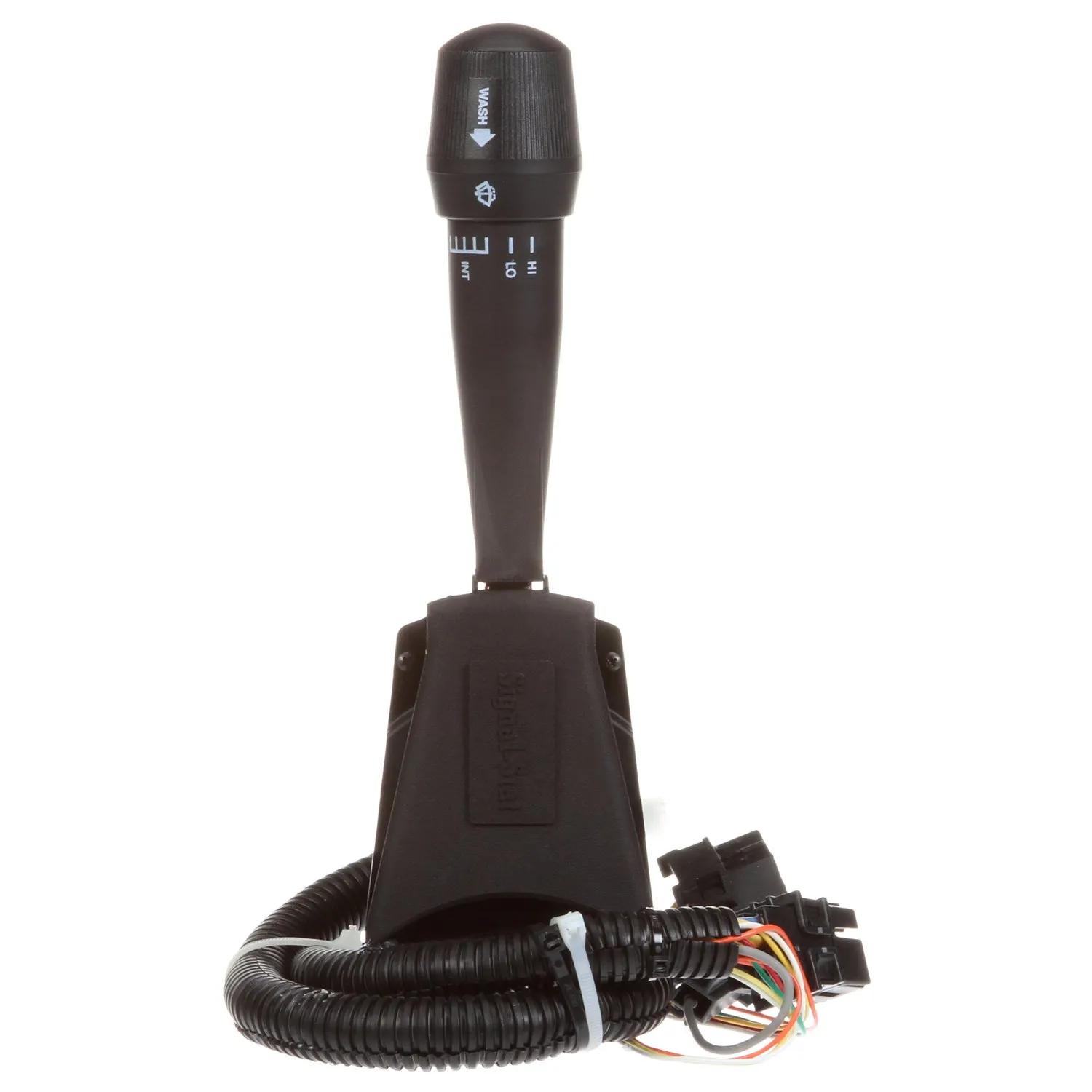

Turn Signal Switch, Wires: 6, Plug: Packard Connector
#TRL91250
Product Overview
Self Canceling 7 Speed, Turn Signal Switch, Glass-Filled Nylon
Features & Benefits
- Surpasses SAE J589 and J910 standards for turn and hazard functions
- Improved light weight, housing and handle
- Capable of flashing 18 lamps in hazard mode (9 lamps per side for turn signal flashing)
- 960 wiper options include 5 speed intermittent, two speed (hi/low) or washer function
- 961 wiper option includes 2 speeds (hi/low)
- Improved design eliminates premature breakage and component wear
- Feature Lift-to-Dim and Flash-to-Pass options
- Brake overrides hazard function lights when brake pedal is depressed
Specifications
| Connection | Hard Wired |
| Depth | 29/32 in (2.31 cm) |
| Height | 2-51/64 in (7.11 cm) |
| Kit (Y/N) | No |
| Number Of Wires | 6 |
| Plug Side One | Hardwired |
| Plug Side Two | Packard Connector |
| Product Type | Turn Signal Switch |
| Series | Signal-Stat |
| Standard | SAE |
| VMRS Code | 001-004-010 |
| Weight | 1.24 lb (0.56 kg) |
| Width | 2-51/64 in (7.11 cm) |
| Wire Gauge | 14 GA |
| Package Quantity | 1 |
