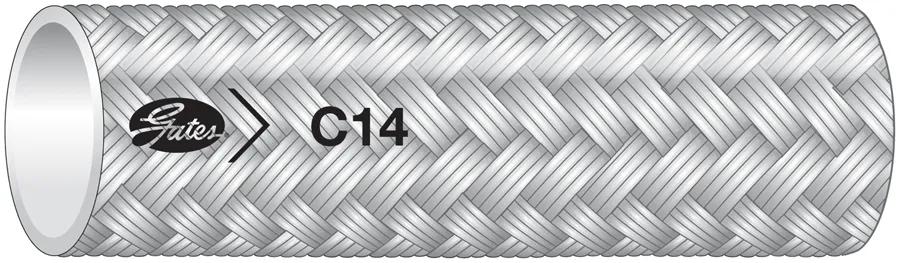

Type A Non-Conductive Hydraulic Hose, Silver, Stainless Steel Wire Cover, PTFE, 0.3125 in ID, 0.45 in OD, 4 in Bend Radius, 6000 psi, 25 ft Length
#GAT85702
Product Overview
C14 PTFE hose is recommended for air compressor discharge, hot oil and fluids, hot and greasy environments.Hydraulic Hose, Type A, Non-Conductive, One Braid of 300 Series Stainless Steel Wire - 304 Stainless Reinforcement, Silver, 300 Series Stainless Steel Wire Cover, PTFE Tube, 4 in Bend Radius, 6000 psi Burst Pressure, 0.3125 in ID, 0.45 in OD, -65 to 400 °F Dynamic, -65 to 450 °F Static, Working Pressure: 1500 psi, 25 ft Length, For Fleet Application and Maintenance
Features & Benefits
- For use with brass and stainless steel C14 couplings (g40 series)
- Temperature range: dynamic: -65 to 400 °F, static: -65 to +450 °F
- SAE specification - 100R14
- Coupling recommendation - C14 couplings
Specifications
| Application | Fleet Application and Maintenance |
| Burst Pressure | 6000 psi |
| Color | Silver |
| Cover Material | 300 Series Stainless Steel Wire |
| Inside Diameter | 0.3125 in |
| Length | 25 ft |
| Outside Diameter | 0.45 in |
| Temperature Range | -65 to 400 °F Dynamic, -65 to 450 °F Static |
| Type | Type A, Non-Conductive |
| UPC | 072053219777 |
| Weight | 2.75 lb |
| Working Pressure | 1500 psi |
| Bend Radius | 4 in |
| Reinforcement Type | One Braid of 300 Series Stainless Steel Wire - 304 Stainless |
| Tube Material | PTFE |
| Manufacturer Part Number | 85702 |
| Product Category | Hydraulic Hose |
| Quantity | 1 |
