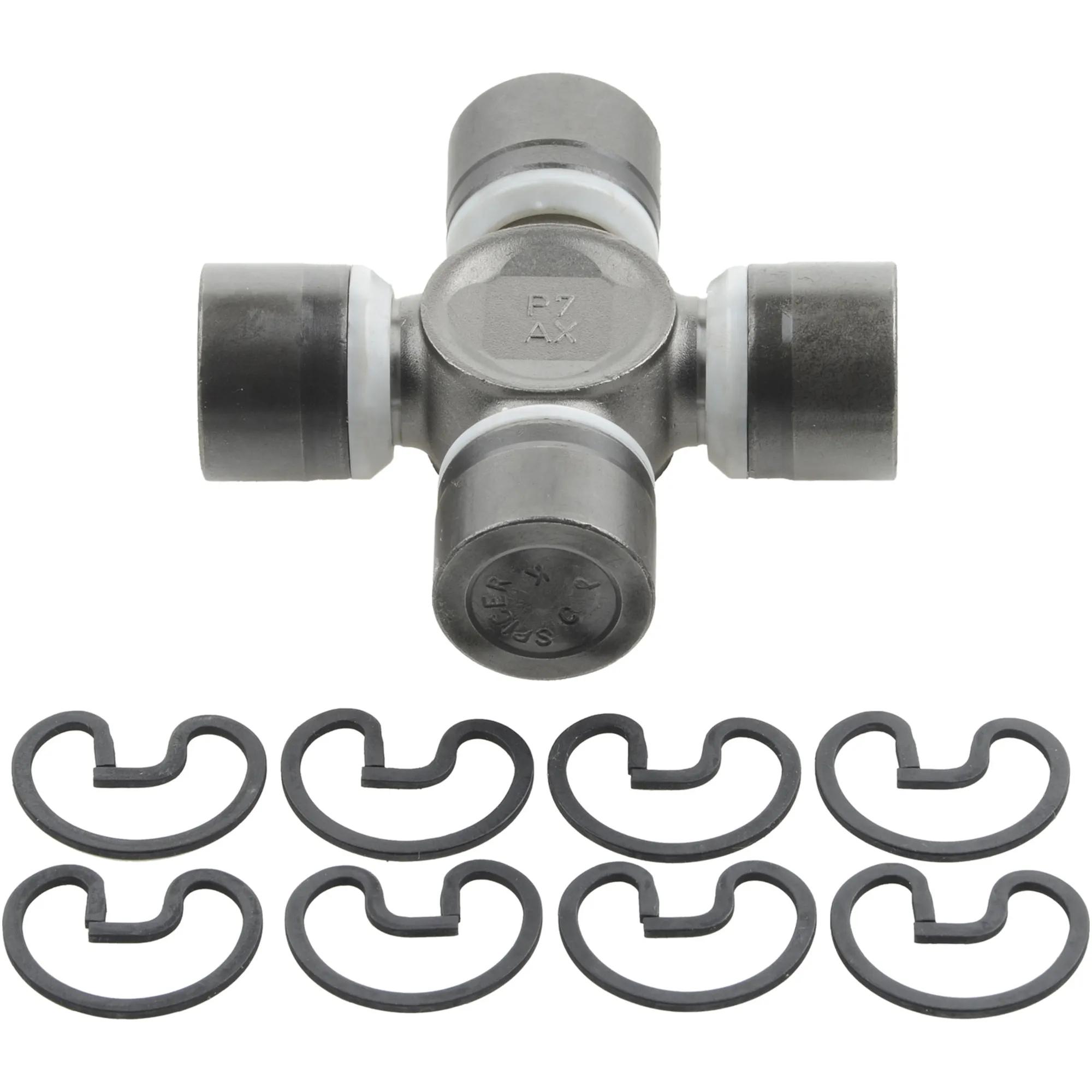

Universal Joint - 1310 Series
#SPI5-3613X
Features & Benefits
Features & Benefits
SPI5-3613X - Features Documents - A
SPI5-3613X - Features Documents - B
SPI5-3613X - Features Documents - C
SPI5-3613X - Features Documents - D
SPI5-3613X - Features Documents - E
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
Specifications
| Bearing Cap Diameter (1) | 1.0625 |
| Bearing Cap Type (B) | OSR: Outside Snap Ring |
| Bearing Cap Diameter (2) | 1.0625 |
| Bearing Cap Type (A) | OSR: Outside Snap Ring |
| Greasable | No |
| U Joint Style | OSR |
| Series | 1310 |
| Snap Ring (2) | 3-7/32 in (8.18 cm) |
| Snap Ring (1) | 3-7/32 in (8.18 cm) |
Interchanges & Equivalent parts:
| 5-786X |
| 5013613 |
| 5626X |
| SPL22-2X |
| 5467X |
| 5-3613X |
