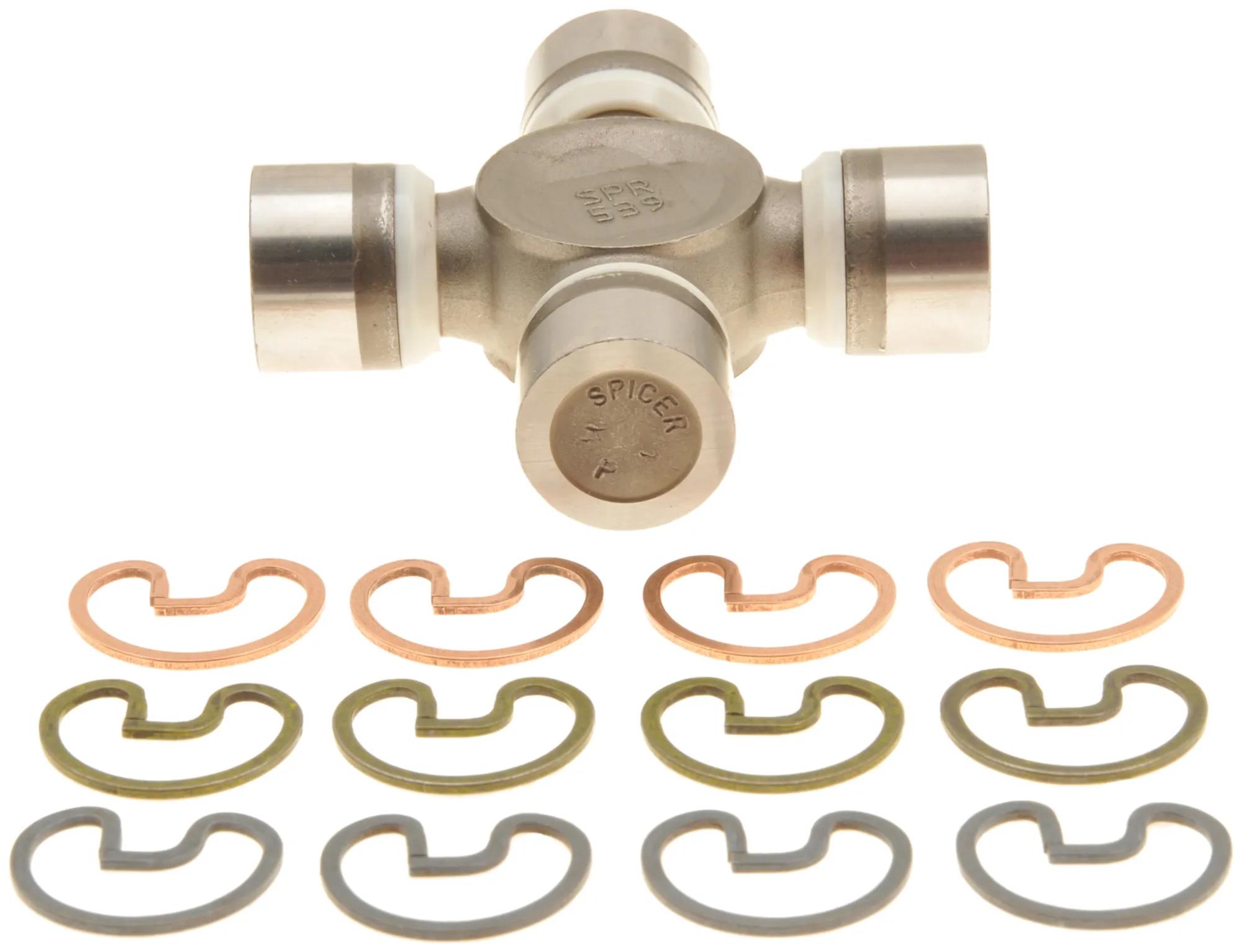

Universal Joint - 1330/SPL25 Series

#SPI5-1330X

Features & Benefits

Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.

Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.

Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.

Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.

Bearing Cap Diameter (1)	1.0625
Bearing Cap Type	Round
Bearing Cap Type (B)	OSR: Outside Snap Ring
Diamètre du chapeau de palier (2)	1.0625
Bearing Cap Type (A)	OSR: Outside Snap Ring
Longueur transversale (po)	3-5/8 in & 3-5/8 in (9.22 cm & 9.22 cm)
Graissable	No
Matériel	Steel
Séries	1330/SPL25
Snap Ring (2)	3-5/8 in (9.22 cm)
Snap Ring (1)	3-5/8 in (9.22 cm)
Snap Ring Included	Yes
Poids	0.61 lb (0.28 kg)

5790X

SPI5-790X

SPISPL251X

SPL25-1X

SPL251X

SPISPL25-1X

5014733AB

CP1330X

5-517X

5-742X

5-790X

5003096

5004947

5229X

5618X

BL354

5-1330X
