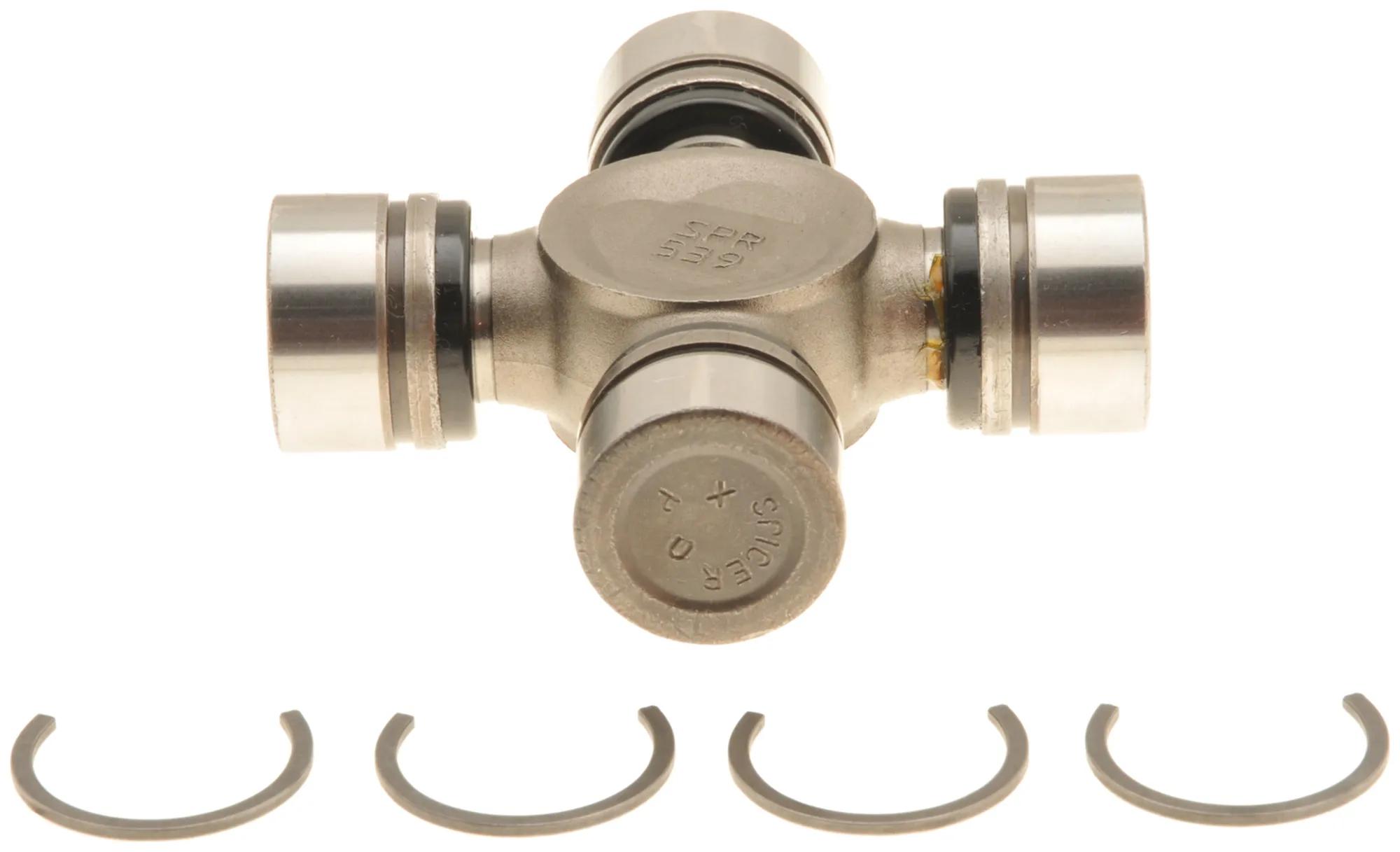

Universal Joint - S44 Series
#SPI5-795X
Features & Benefits
Features & Benefits
SPI5-795X - Features Documents - A
SPI5-795X - Features Documents - B
SPI5-795X - Features Documents - C
SPI5-795X - Features Documents - D
SPI5-795X - Features Documents - E
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.

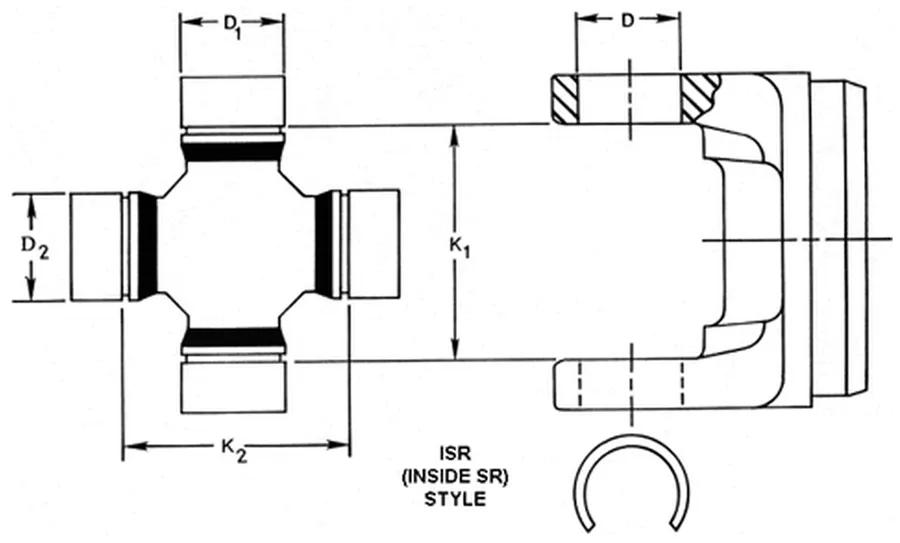

Specifications
| Diamètre du chapeau de palier (1) | 1.125 |
| Bearing Cap Type | Round |
| Bearing Cap Type (B) | ISR: Inside Snap Ring |
| Diamètre du chapeau de palier (2) | 1.125 |
| Bearing Cap Type (A) | ISR: Inside Snap Ring |
| Longueur transversale (po) | 2-9/16 po & 2-9/16 po (6,5 cm & 6,5 cm) |
| Graissable | No |
| Material | Acier |
| Series | S44 |
| Snap Ring (2) | 2-9/16 in (6.5 cm) |
| Snap Ring (1) | 2-9/16 in (6.5 cm) |
| Snap Ring Included | Yes |
| Weight | 1.35 lb (0.61 kg) |
Interchanges & Equivalent parts:
| 2-3147 |
| 5-737X |
| 5795X |
| BL492 |
| CP795X |
| CP795XMER |
| D5795X |
| E5795X |
| SP 5 795X |
| SP 5795X |
| SPL25-6X |
| TWD5795X |
