Work Light, Rectangular, V: 12, Lumens: 2650
#TRL81500
Product Overview

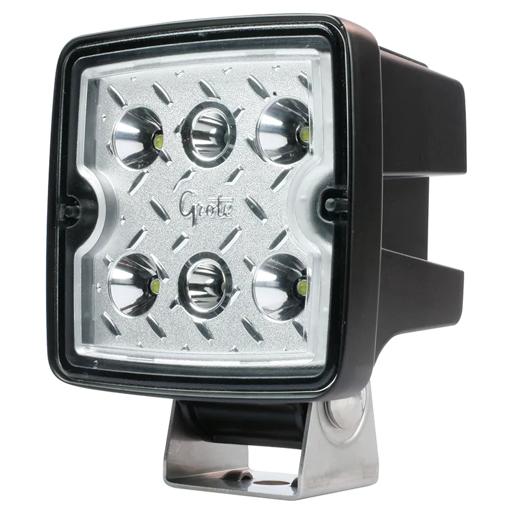

Super 81 4x4 in. Square LED Work Light, Black, 12 Diode, 2650 Lumen, Blunt Cut, 12-24V
Features & Benefits
- Rear Fins Keep Heat Away From LEDs & Lamp Circuity, Allowing For Increased Light Output & Lamp Longevity.
- White LEDs Offer Daylight-like Visibility. Currect Regulated Switch Circuit. 18 Gauge Adr Compliant Wires.
- Ece Reg 10-3 Emi Compliant. Sae Voltage Spike Protected.
- 12 Light Emitting Diodes. 2.61-3.2amp At 13.5 Volts. 1.15-1.45amp At 28 Volts.
- 2850 Warm Lumens 3050 Cold Lumems.
- Cold Lumen Power Refers To The Lumen Power Ration Prior To Warm-up Phase.
- Warm Lumen Power Refers To The Lumen Power Rating After The Warm-up Phase Has Occurred.
Specifications
| Amps | 2.52 amp |
| Application | Work |
| Color | White |
| Color Temperature | 5700 K |
| Contents | LED Work Lamp, Rectangular, 2850 Lumens |
| Depth | 2-19/32 in (6.58 cm) |
| Effective Lumens | 3000 lm |
| Finish | Black Powder Coated |
| Function | R10 |
| Height | 4-45/64 in (11.94 cm) |
| Kit (Y/N) | No |
| # Lamp Prongs | 1 |
| LED | Yes |
| Lens Material | Polycarbonate |
| Light Intensity | 4240 cp |
| Lumens (lm) | 2650 lm |
| Material | Stainless Steel |
| Mount Type | Surface Mount |
| Number Of Wires | 1 |
| Pattern | Work |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Work Light |
| Regulations | ECE |
| Series | 81 Series |
| Shape | Rectangular |
| Standard | SAE Spike Protected, ECE reg 10-3 EMI |
| Technology | LED |
| Type | Flood |
| VMRS Code | 034-006-031 |
| Volt | 12V |
| Weight | 2.2 lb (1 kg) |
| Width | 4-45/64 in (11.94 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 300-3161F-8 |
| 632315 |
| 81500-3 |
