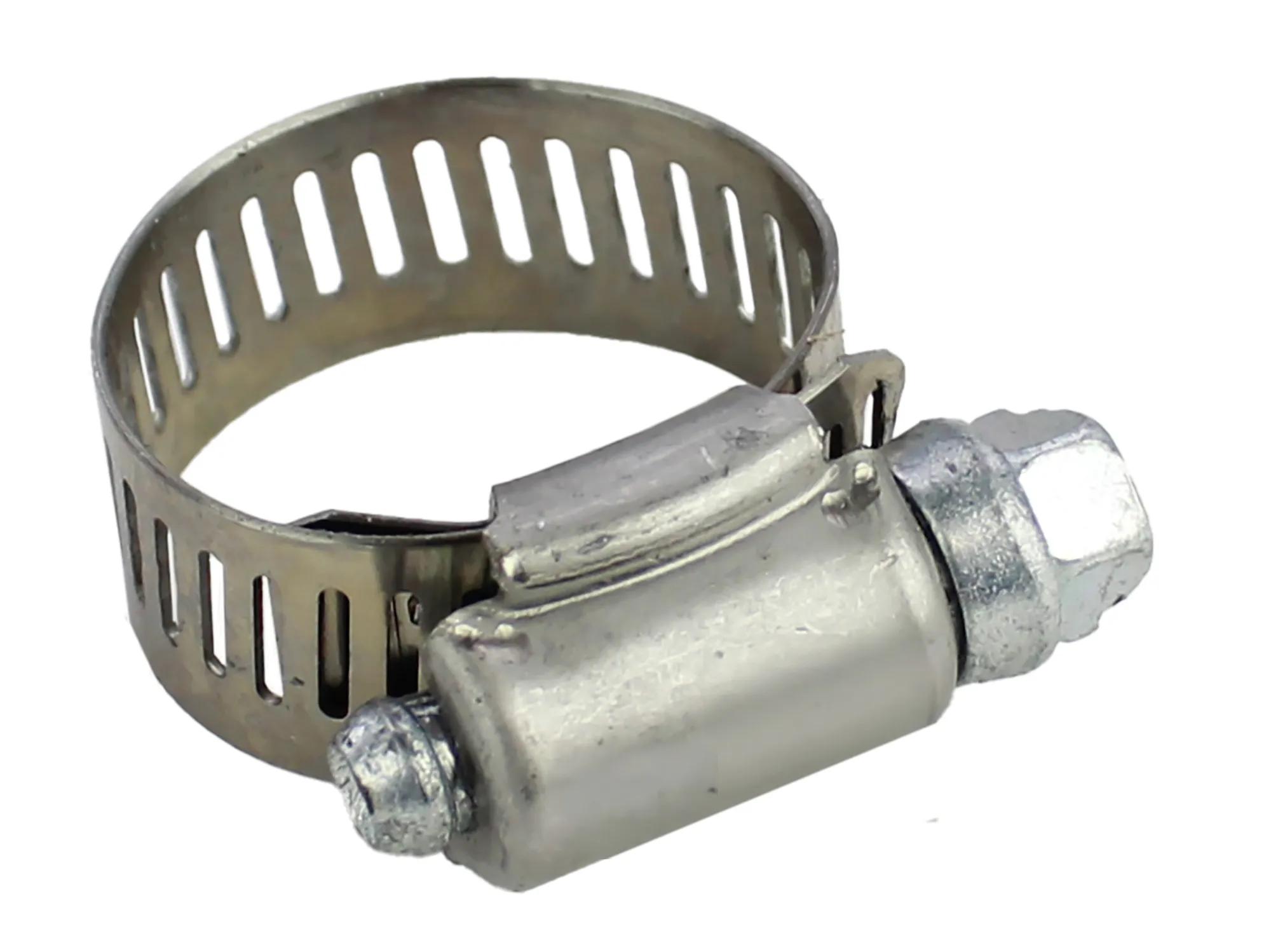

Worm Gear Hose Clamp, Slotted Hex Head Clamp, 304 Stainless Steel, 1/2 in Band Width, 13/16 to 1-1/2 in Clamp Range
#TECHC16
Product Overview
Worm Gear Hose Clamp, Slotted Hex Head Clamp, 304 Stainless Steel, 1/2 in Band Width, 13/16 to 1-1/2 in Clamp Range, Standards: SAE J1508, 49 in lb Torque Rating
Features & Benefits
- TECTRAN’s heavy-duty hose clamps - worm gear, slotted hex head (HC series)
- Made from SS 304 premium stainless steel, highly resistant to rust and corrosion
- Zinc-plated carbon steel screws create a tight seal under pressure
- The 1/2 in wide stainless-steel band provides added stability and clamping force, ideal for heavy-duty use and compatible with silicone hoses
- Provides up to 49 in lb of torque for reliable performance in high-pressure environments
- Features a 5/16 in slotted hex head screw for quick and secure tightening with standard tools
- Compliant with SAE J1508 industry standards for quality and performance
- Count on Tectran's hose clamps for strong, stainless-steel construction and the necessary torque for secure hose fastening
Specifications
| Band Width | 1/2 po |
| Material | Acier inoxydable |
| VMRS Code | 001-002-050 |
| Clamp Range | 13/16 à 1-1/2 po |
| Clamp Type | Tête hexagonale fendue |
| Standards | SAE J1508 |
| Torque Rating | 49 lb-po |
| Manufacturer Part Number | HC16 |
| Product Category | Collier de serrage à vis sans fin |
| Weight | 0.0478 lb |
Interchanges & Equivalent parts:
| 72303 |
| 56120016-B |
| HC16 |
| 491016 |
| 022316 |
| HC6-16 |
