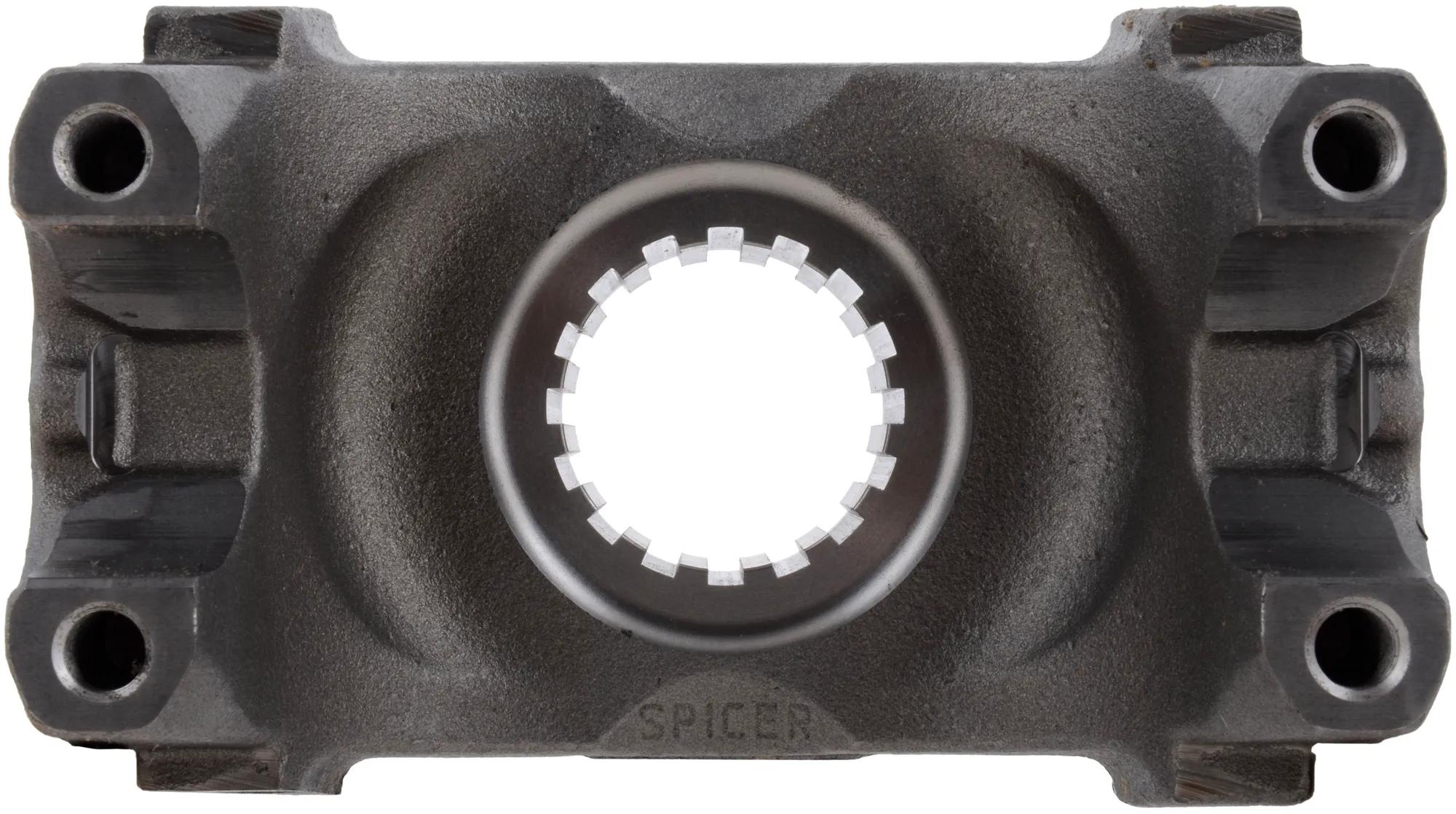

1810 B/S COUPLING END YOKE
#SPI6.5-4-1891-1
Specifications
| Bearing Cap Diameter | 1-15/16 in (4.93 cm) |
| Center Line to End of Hub | 5-1/2 in (13.97 cm) |
| Hub Diameter | 2-7/8 in (7.32 cm) |
| Includes Slinger/Plug | No |
| Involute Spline | No |
| Joint Angle | 30 deg |
| Length Thru Hole (Q) | 2.75 |
| Material | Steel |
| Outside Yoke Dimension (in.) (E) | 7.643 |
| Series | 1810 |
| Spline Diameter | 2-11/32 in (5.94 cm) |
| Type | Splined Hole Yoke |
| Yoke Style | HR |
| Yoke Type | Winged |
Interchanges & Equivalent parts:
| N65-4-1891-1 |
| 6.5-4-2531-1X |
| D65418911 |
| 181MU51P14 |
| 2104-65418911 |
| 65418911-SP |
| 65418911S |
| E65418911 |
| SP 6.5 4 1891 1 |
| SP 65418911 |
| TWD65418911 |
| 65418911 |
| N6.5-4-1891-1 |
