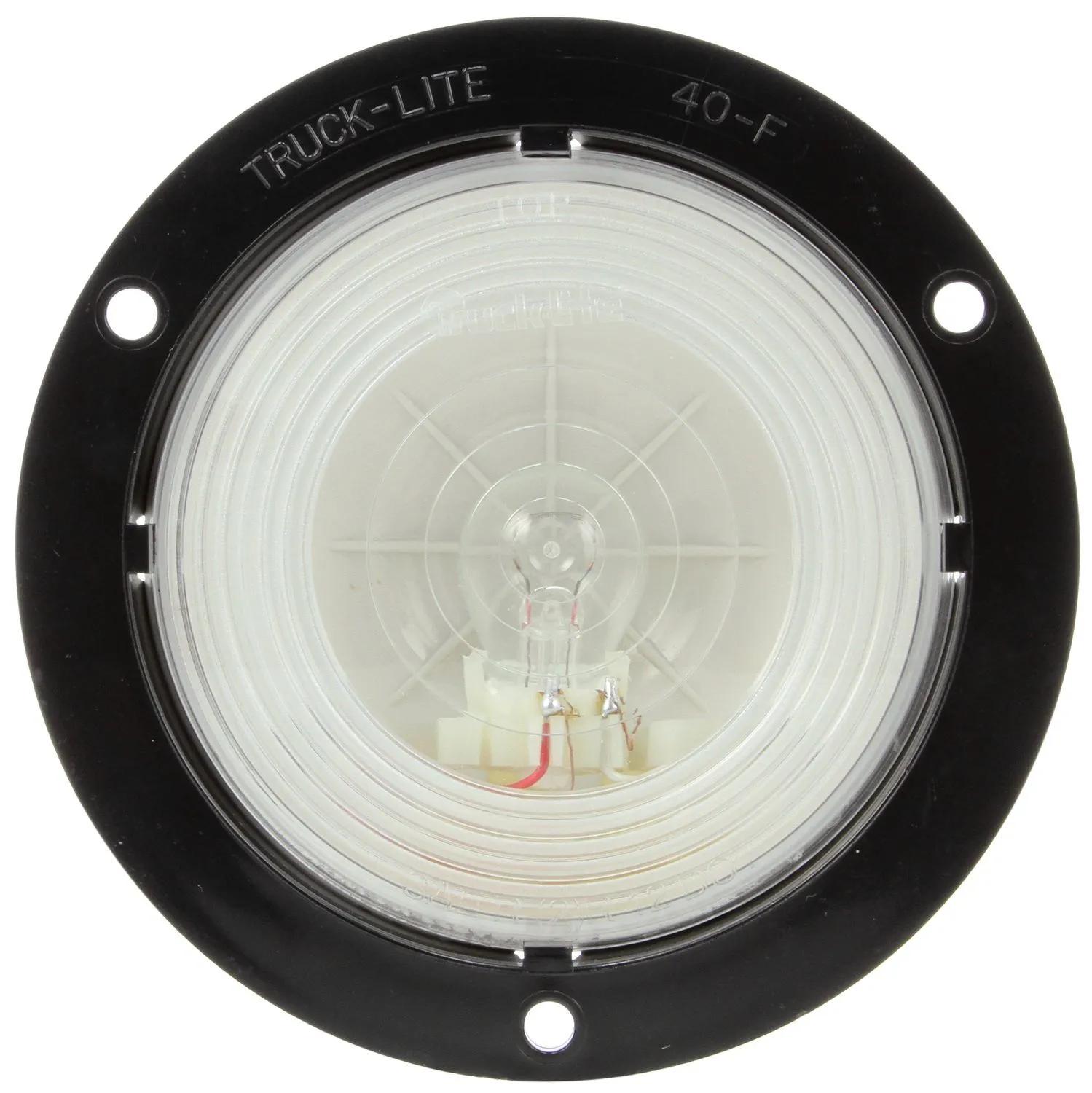

40 Series, Incandescent, Clear Round, 1 Bulb, Back-Up Light, Black Flange Mount, Pl-2, Stripped End/Ring Terminal, 12V, Kit
#TRL40071
Product Overview
40 Series, Incandescent, Clear Round, 1 Bulb, Back-Up Light, Black Flange Mount, PL-2, Stripped End/Ring Terminal, 12V, Kit
Features & Benefits
- Polycarbonate lens and housing are sonically sealed
- Bulb is shock mounted for extended life
- Legal only for back-up function
- Not recommended for dome lamp use
- Replaces Signal-Stat 4041W and 4047W
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Ampères | 2.1 amp |
| Common Size | 4 in (10.16 cm) |
| Contents | Lamp, Pigtail |
| Depth | 2-5/32 in (5.49 cm) |
| Diamond Shell (Y/N) | No |
| Fits Pigtail Part #(s) | 94992 |
| Height | 5-9/32 in (13.41 cm) |
| Kit (Y/N) | Yes |
| Lamp Length | 5,5 po |
| # Lamp Prongs | 2 |
| Lamp Type | Sealed |
| Lamp Volt Rating | 12 volt |
| Lamp Width | 2,15 po |
| Lens Color | Clear |
| Lens Height | 4-5/16 in (10.95 cm) |
| Lens Material | Polycarbonate |
| Lens Shape | Round |
| Lens Width | 4-5/16 in (10.95 cm) |
| Material | Polycarbonate |
| Mounting Connector Diameter (in.) | 1/4 in (0.64 cm) |
| Mount/Trim Color | Black |
| Mount/Trim Material | ABS |
| Mount Type | Flange Mount |
| Number of Diodes/Bulbs | 1 |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | Stripped End |
| Product Type | Back-Up Light |
| Series | 40 Series |
| Shape | Round |
| Standard | CMVSS 108 |
| Technology | Incandescent |
| VMRS Code | 034-003-074 |
| Volt | 12V |
| Weight | 0.2 lbs (0.09 kg) |
| Width | 5-9/32 in (13.41 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 40071 |
| HT50602476 |
| 8413-40071 |
| LIT40071 |
| TL 40071 |
| TL40071 |
| TLD40071 |
