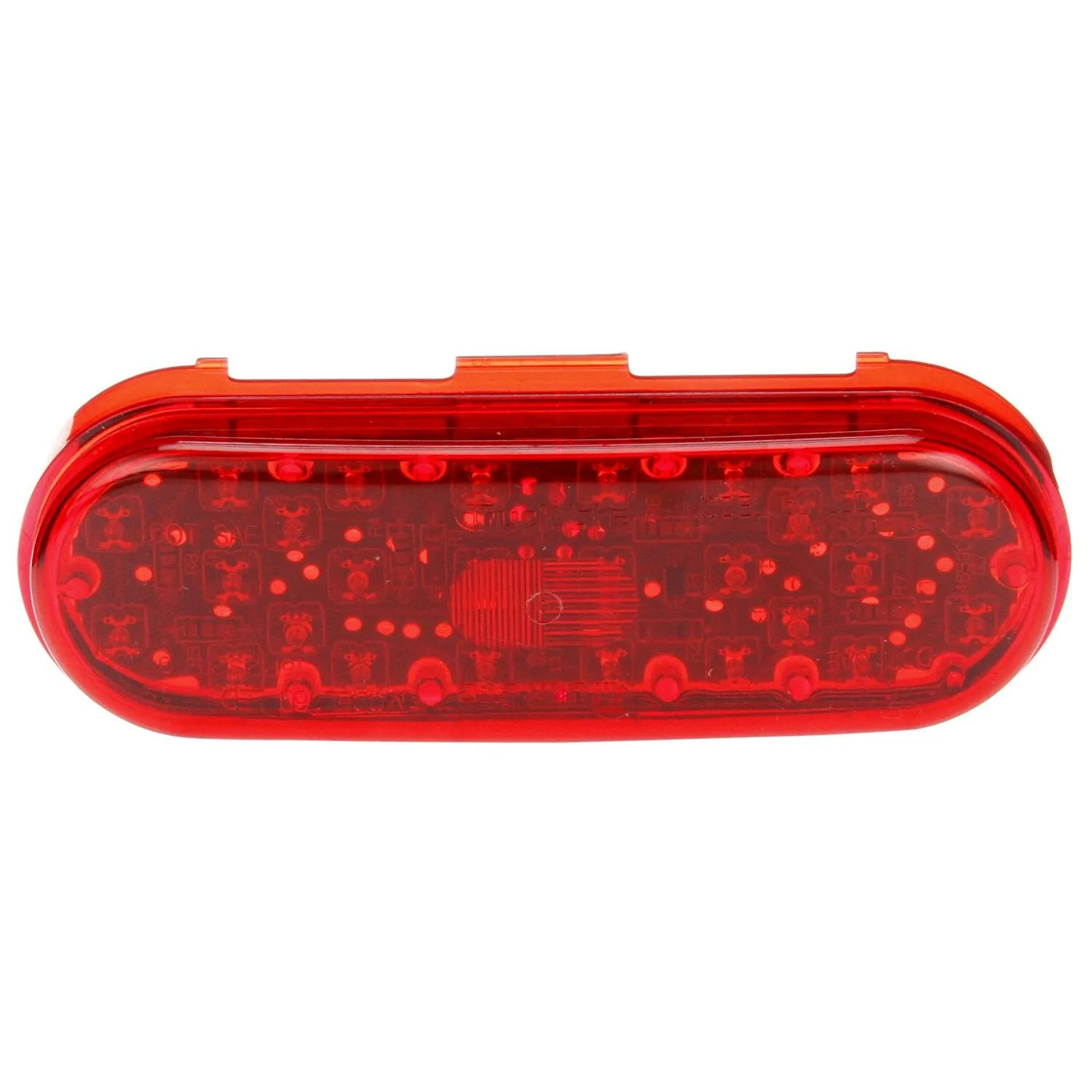

60 Series LED High Mounted Stop Light, 26 Diode, Oval Red Polycarbonate, Fit 'N Forget S.S., 12V
#TRL60260R
Product Overview
60 Series LED high mounted stop light featuring 26 diodes in an oval red polycarbonate lens. Designed with Fit 'N Forget stainless steel mounting, this 12V light is ideal for auxiliary brake light applications. Electronics are fully sealed in epoxy to resist corrosion and moisture, meeting FMVSS 108, CMVSS 108, DOT, and SAE standards.Stop Light, 26 Diode, LED Bulb, Fit 'N Forget S.S., Grommet, Polycarbonate, Red, 2.32 in H, 0.21 in L, 60 Series, Oval, Standards: FMVSS 108, CMVSS 108, DOT, SAE, 12 V, Warranty: Limited Lifetime, 6.5 in W
Features & Benefits
- Recommended for auxiliary brake light applications only
- Electronics completely sealed in epoxy to resist corrosion and moisture
Specifications
| Bulb Type | LED |
| Color | Red |
| Common Size | 2 in |
| Connection Type | Fit 'N Forget S.S. |
| Current Minor | 0.04 amp |
| Depth | 1-5/8 in |
| Fits Pigtail Part #(s) | 94789 |
| Height | 2-5/16 in |
| Housing Color | Stainless Steel |
| Kit (Y/N) | No |
| # Lamp Prongs | 3 |
| Lamp Type | Sealed LED |
| Length | 6-1/2 in |
| Lens Color | Red |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mounting Type | Grommet |
| Mount Type | Grommet Mount |
| Plug Side Two | No Plug |
| Quantity | 1 |
| Series | 60 Series |
| Shape | Oval |
| Size | 2 in |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | 26 Diode |
| UPC | 735111000000 |
| Volt | 12V |
| Voltage Rating | 12 V |
| Warranty | Limited Lifetime |
| Weight | 0.39 lb (0.18 kg) |
| Width | 6-1/2 in |
| Current Rating | 0.21 amp |
| Light Output Color | Red |
| Light Function | High Mounted Stop Light |
| Product Line | 60 Series |
| Product Category | Stop Light |
Interchanges & Equivalent parts:
| 1004767 |
| 60260R |
| 841360260R |
| 701195 |
| 4008382 |
| HT50601774 |
| M420R2 |
| 163239001 |
| TRU60260R |
| 54142GR0 |
| 8413-60260R |
| LIT60260R |
| TL 60260R |
| TL 60260R |
| TL60260R |
| TLD60260R |
| 127-63002 |
| 820R-2 |
| TKL60260R |
| 5351526020 |
