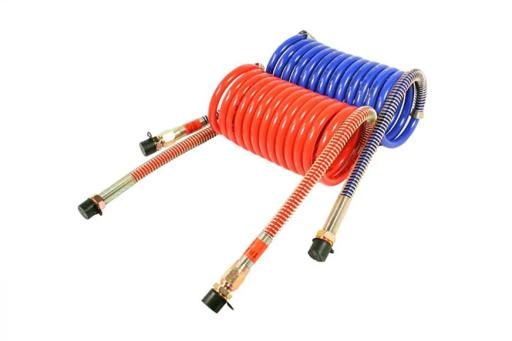

Air Coiled Hoses, Red & Blue, Le: 15 ft
#PHI11-3400
Product Overview
Perfect For Frequent Coupling/Uncoupling, Extra-Long Brass Handle Adds Cold Weather Coupling/Uncoupling Leverage, Extra-Long Plated Spring Adds Life To Nylon Tubing Ends, Vertical At The Tractor, Angled At The Trailer End Prevents Hose Kinking, Includes Thread Seal For Secure Connection To Gladhand & Chassis, Meets SAE J844 & J1131 Specifications, Meets FMVSS 571.106 Specifications, Single Piece Trailer Side & Three-Piece Tractor Side Fittings
Features & Benefits
- 1/2" NPTF
- As recommended practice, use a tracker bar spring kit or pogo to support cable assemblies with longer leads
- Includes thread seal for secure connection to gladhands & chassis
- Meets DOT 49 CFR FMVSS 571. 106 specifications
- Meets DOT 49 FMVSS 393. 45 specifications
- Meets SAE J844 and J1131 specifications
- POWER GRIP⢠gladhand extension provides superior coupling/uncoupling leverage
- Remains flexible at -40F (-40C)
- Single piece side for secure connection to gladhand and chassis
Specifications
Color | Red & Blue |
Length | 15 ft (4.57 m) |
Type | Standard Duty |
Specifications
Diameter | 4 in (10.16 cm) |
Includes | Thread seal for secure connection to gladhand |
Product Type | Coiled Air |
Quantity | 2 |
Temperature Range | -40°C (-40°F) to 93°C (200°F) |
UPC | 621935085674 |
Weight | 2.09 kg (4.6 lb) |
Interchanges & Equivalent parts:
11-740, 11954, 81-0015-40, 1000-AC15S48H, 113400, 17215040H, 8498-113400, ABP N42AAC154H, AC15S48H, PH11-3400, PHI11-3400, PHI113400, PHL113400, PHM 11 3400, RC AC15S48H, 022001VEL, 451039, A1040, NT11040S, PHL11-3400, 11-3400, 81-0015-40, 11954, 11-740, RC AC15S48H, 17215040H, 1000-AC15S48H, PH11-3400, 113400, PHL113400, PHI113400, PHM 11 3400, AC15S48H, ABP N42AAC154H, PHI11-3400, 8498-113400, PHL11-3400, A1040, NT11040S, 022001VEL, 451039, 11-3400
