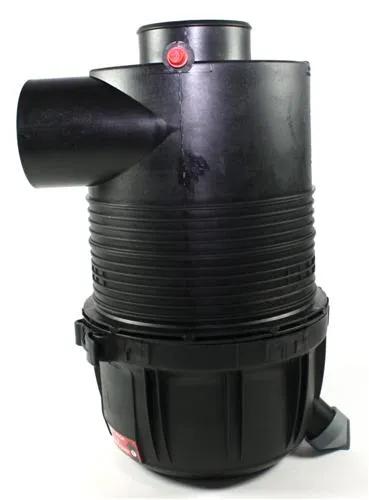

Air Filtration System, L: 10-61/64 in, W: 9-11/32 in, H: 16-1/4 in, OD: 9-23/64 in
#FLGAH19261
Product Overview
Fleetguard AH19261 has revolutionized air filtration design with the introduction of its patented Fleetguard OptiAir technology. To fit shrinking engine compartments, OptiAir has a reduced system size. The two-stage air housing design extends filter life and lowers restriction to deliver maximum engine performance. Higher dust holding capacity allows for longer service intervals and lower maintenance costs.
Specifications
| Diameter Range | 9 to 9.99 in |
| Height | 10-61/64 in (27.81 cm) |
| Inlet | 3-3/4 in (9.53 cm) |
| Inlet Diameter | 3-3/4 in (9.53 cm) |
| Length | 16-1/4 in (41.28 cm) |
| Outer Diameter | 9-23/64 in (23.77 cm) |
| Outlet Diameter | 4 in (10.16 cm) |
| Length Range | 16 to 16.99 in |
| Width | 9-11/32 in (23.72 cm) |
Interchanges & Equivalent parts:
| 780053N |
