Goodyear

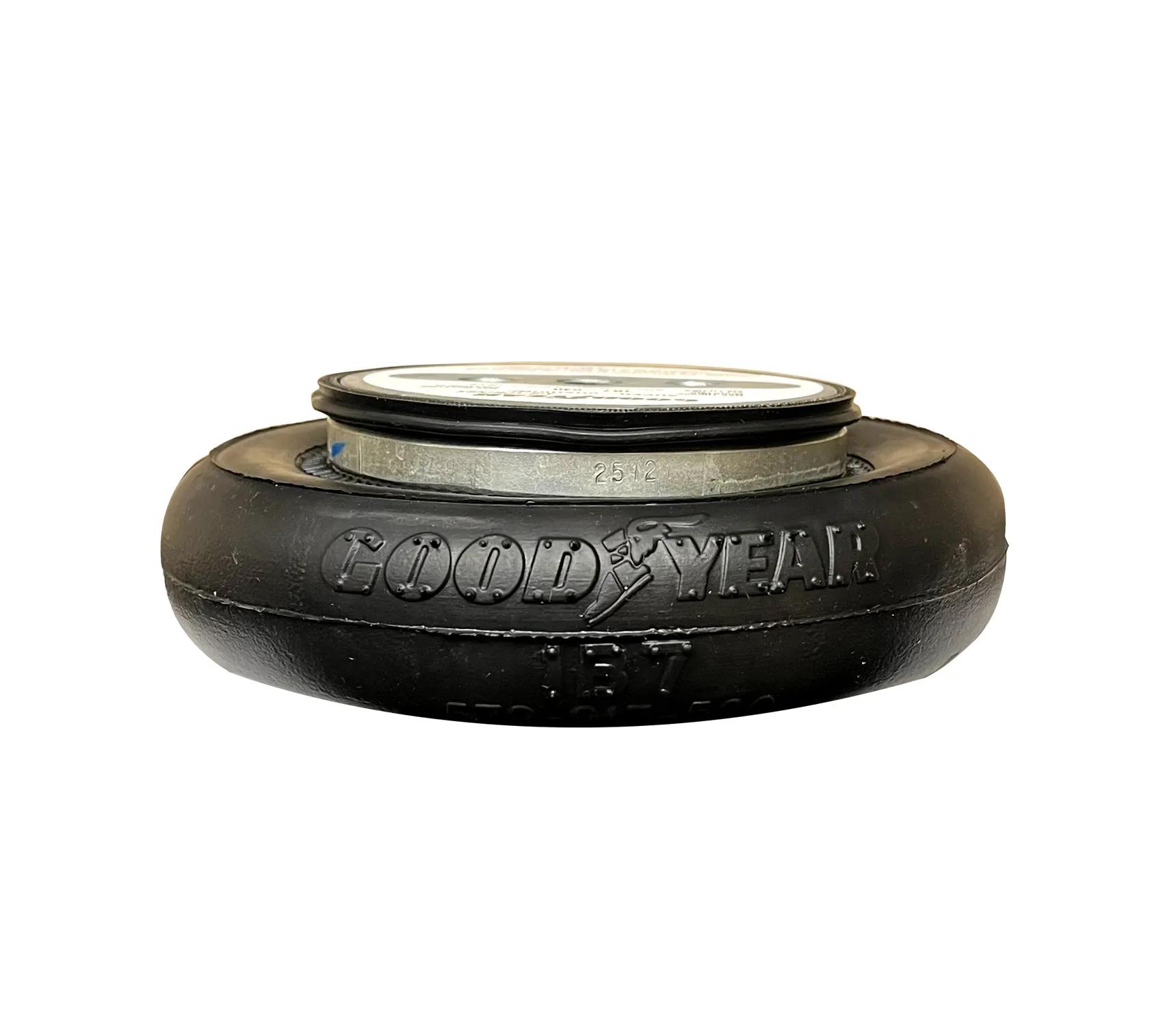

Air Spring - 1 Lobe - Convoluted
#ARB1B14-351
Features & Benefits
- Superior Rubber Chemistry
- Reduced Weight
- Internal Wall Cord
- Comfort
- Equipment Longevity
Specifications
| Air Inlet | Air Fitting 1/4 in NPTF |
| Air Spring Type | Single Convoluted |
| Bead Plate (Top) & Deflated Bellows O.D. | 4.2 in @ 7.2 (10.67 cm @ 18.29 cm) |
| Bead Plate (Top) Mounting Bolts Dimension Center to Center | 6-1/4 in (15.88 cm) |
| Bellows | Goodwill 578913351 |
| Bottom Bead Plate Hardware Key | 4 x Threaded Hole 3/8 in-16 Blind Nut on Bead Plates 1/2 in-13 Pistons |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 11-19/64 in (28.7 cm) |
| Bottom Plate Hole Stud Qty | 4 |
| Bumper | Yes |
| Compressed Length | 4-13/64 in (10.67 cm) |
| Contitech Bellow # | FS 530-14 |
| Goodyear Bellow # | 578913351 |
| Height | 9 in (22.86 cm) |
| Length | 14 in (35.56 cm) |
| Material | Rubber |
| Pressure | 130 psi (8.96 bar) |
| Quantity | 1 |
| Temperature | 32°F @ 175°F (0°C @ 80°C) |
| Top Plate Diameter | 11-19/64 in (28.7 cm) |
| Type | Bellows Air Springs |
| Weight | 18 lb (8.16 kg) |
| Width | 14 in (35.56 cm) |
