Goodyear
Air Spring - 1 Rolling Lobe - Reversible Sleeve
#ARB1R13-124
Features & Benefits
- Superior Rubber Chemistry
- Reduced Weight
- Internal Wall Cord
- Comfort
- Equipment Longevity

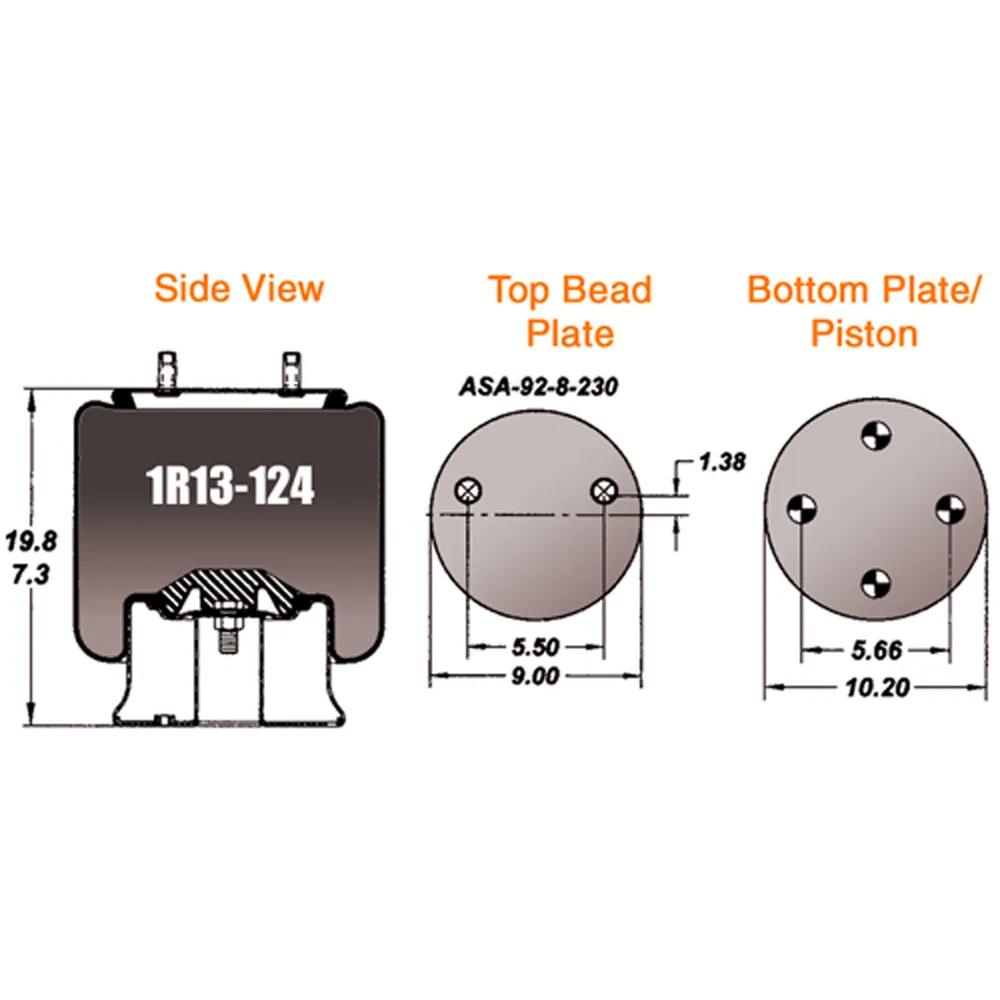

Specifications
| Air Inlet | 2 x Combination Stud/Air Inlet Stud Outside Thread is 3/4 in-16; Studs Inside Thread (Air Inlet) is 1/4 in NPT |
| Air Spring Type | 1 Solid Sleeve |
| Bead Plate (Top) & Deflated Bellows O.D. | 7.3 in @ 18.5 in (18.54 cm @ 46.99 cm) |
| Bead Plate (Top) Mounting Bolts Dimension Center to Center | 5-1/2 in (13.97 cm) |
| Bellows | Goodwill 566263050 |
| Bottom Bead Plate Hardware Key | 4 x Threaded Hole 3/8 in-16 Blind Nut on Bead Plates 1/2 in-13 Pistons |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 10-13/64 in (25.91 cm) |
| Bottom Plate Hole Stud Qty | 4 |
| Bumper | Yes |
| Compressed Length | 7-19/64 in (18.54 cm) |
| Contitech Bellow # | 10 10-15 S |
| Extended Length | 19-51/64 in (50.29 cm) |
| Firestone Bellows Number | 1T17B-5 |
| Goodyear Bellow # | 566263050 |
| Maximum Height | 18-1/2 in (46.99 cm) |
| Piston (Bottom) Mounting Bolt Dimensions Center to Center | 5-21/32 in (14.38 cm) |
| Piston Height | 5-19/32 in (14.2 cm) |
| Piston Number | 566-20-7-127 |
| Piston Type | Steel |
| Plate Type | Steel |
| Top Plate Diameter | 10-19/64 in (26.16 cm) |
| Top Plate Hole Count | 2 |
| Triangle Bellows Number | 6390 |
| Type | Air Springs |
| Weight | 29 lb (13.15 kg) |
Interchanges & Equivalent parts:
AS8755, B22046, C-22045, C-22046, C21623, G2298710300, G2298755300, GBH1R13124, GY1R13124, GYR1R13124, HENS-22045, RC AS8755, 8755, FC108755, W013588710, 1R13124, AS87550, C22045, S22046, W013588755, CON73590, 1R13-124, CON73590, C21623, GYR1R13124, AS8755, G2298755300, GY1R13124, C-22046, AS87550, B22046, C-22045, C22045, GBH1R13124, HENS-22045, RC AS8755, FC108755, G2298710300, W013588755, 1R13124, W013588710, S22046, 8755, 1R13-124
