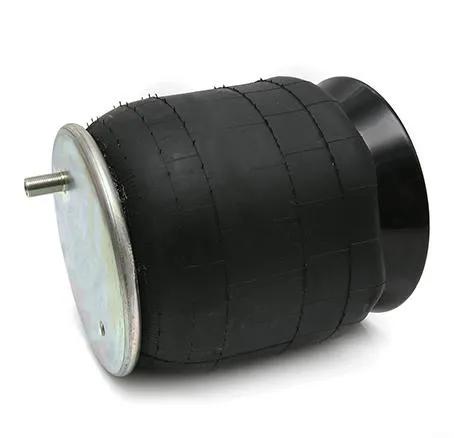

Air Spring - 1T15M4 RB BN3/4CF PBW
#FIRW01-358-8805
Specifications
| Air Spring Type | 1T Reversible Sleeve |
| Application | Ridewell 1003588805C |
| Bellows | 1T15M-4 |
| Bottom Mount | Flat |
| Bottom Plate Diameter | 9-1/2 in (24.13 cm) |
| Bottom Plate Hole/Stud Qty | 4 |
| Compressed Length | 7-3/32 in (18.01 cm) |
| Diameter | 10-1/8 in (25.73 cm) |
| Extended Length | 18 in (45.72 cm) |
| Loading Capacity at 20 psig | 1410 lb-ft |
| Loading Capacity at 60 psig | 4230 lb-ft |
| Loading Capacity at 90 psig | 6345 lb-ft |
| Piston Height | 4-3/4 in (12.07 cm) |
| Temperature | 57°C @ -54°C (134.6°F @ -65.2°F) |
| Top Mount | Stud |
| Top Plate Diameter | 9 in (22.86 cm) |
| Top Plate Hole/Stud Qty | 2 |
| Weight | 16.2 lb (7.35 kg) |
Interchanges & Equivalent parts:
| 1R12-438 |
| 1R12438 |
| 352-8805 |
| AB8805 |
| FIR8805 |
| 1003588805C |
| 9 10-14 P 462 |
| AS8805 |
| AS88050 |
| FI W01 358 8805 |
| FSIW013588805 |
| G2298805200 |
| TWDW013588805 |
| W013588805 |
| 910-14P462 |
| W01-358-8805 |
