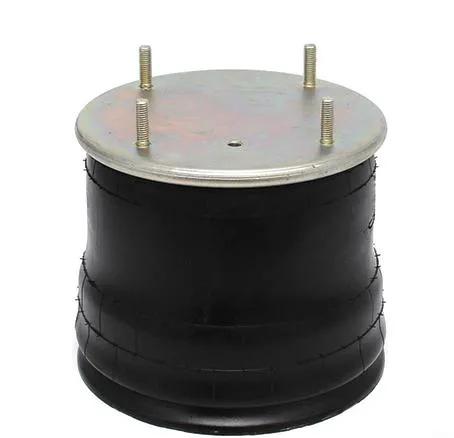

Air Spring - 1T19L5 RB 4ST1/4NPT PBW

#FIRW01-358-9200

Spécifications

Air Spring Type	1T Reversible Sleeve
Application	Hendrickson Trailer S3839, Ridewell 1003589200C, Mexican de Autobus, Front-Rear Tag
Bellows	1T19L-5
Bottom Mount	Flat
Bottom Plate Diameter	11-13/16 in (30 cm)
Bottom Plate Hole/Stud Qty	4
Compressed Length	5-45/64 in (14.48 cm)
Diameter	10-5/8 in (27 cm)
Extended Length	17 in (43.18 cm)
Loading Capacity at 20 psig	2080 lb-ft
Loading Capacity at 60 psig	6240 lb-ft
Loading Capacity at 90 psig	9360 lb-ft
Material	Natural Rubber
Piston Height	3-47/64 in (9.47 cm)
Temperature	57°C @ -54°C (134.6°F @ -65.2°F)
Top Mount	Stud
Top Plate Diameter	11-5/16 in (28.73 cm)
Trou/goujon de la plaque supérieure	5
Poids	21.7 lb (9.84 kg)
