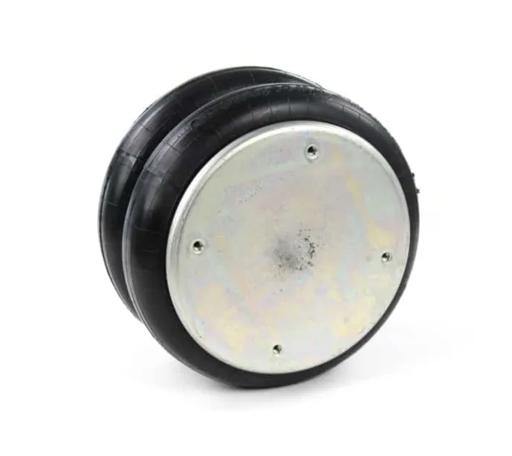

Air Spring - 21C RB 4BN1/4OFF 4BN
#FIRW01-358-7146
Specifications
Air Spring Type | Double Convoluted |
Application | Ridewell 1003587146C, Willmar, Mod. Flow Equip., Gallenberg |
Bellows | 21 |
Bottom Mount | Flat |
Bottom Plate Diameter | 11-5/16 in (28.73 cm) |
Bottom Stud Configuration | 4 |
Compressed Length | 4-51/64 in (12.19 cm) |
Design Height (in.) | 8 in @ 9-1/2 in (20.32 cm @ 24.13 cm) |
Diameter | 14-1/2 in (36.83 cm) |
Loading Capacity at 20 psig | 1912 lb-ft |
Loading Capacity at 60 psig | 5736 lb-ft |
Loading Capacity at 90 psig | 8604 lb-ft |
Minimum Jounce Height (in.) | 4-51/64 in (12.19 cm) |
Temperature | 57°C @ -54°C (134.6°F @ -65.2°F) |
Top Mount | Flat |
Top Plate Diameter | 11-5/16 in (28.73 cm) |
Top Stud Configuration | 5 |
Weight | 20 lb (9.07 kg) |
Interchanges & Equivalent parts:
7146, 2B14-355, 2B14355, 354-7146, 90557039, FIR7146, 1003587146C, 4342, 8003-005, 90557024, AS7146, FD 530-22 342, FI W01 358 7146, FSIW013587146, G2297146500, TWDW013587146, W013587146, W01-358-7146, FIR7146, 354-7146, 2B14-355, 90557039, 2B14355, 7146, FI W01 358 7146, FD 530-22 342, 90557024, FSIW013587146, AS7146, TWDW013587146, W013587146, 4342, 8003-005, 1003587146C, G2297146500, W01-358-7146
