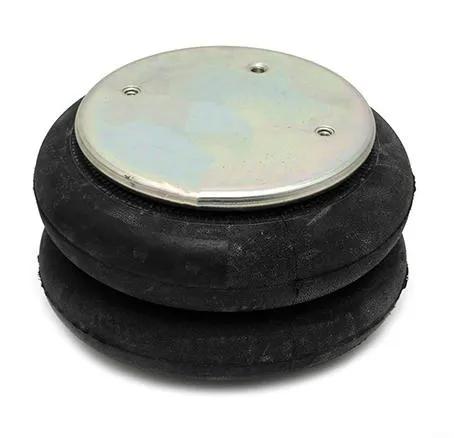

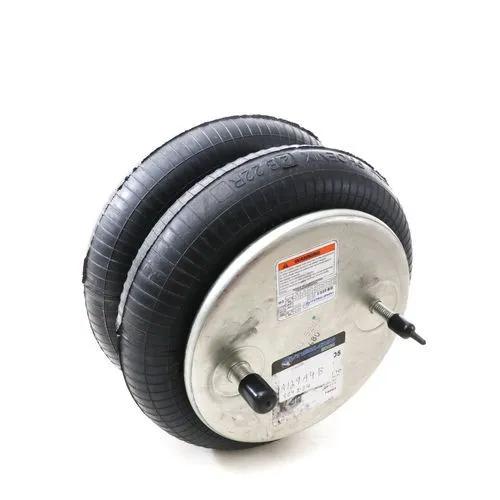

Air Spring - 22D RB 2BN1/4OFF
Specifications
| Air Spring Type | Double Convoluted |
| Application | Granning 2726, Hendrickson Trailer S1013, Ridewell 1003587400C, Holland (Neway) 90557016 |
| Bellows | 22 |
| Bottom Mount | Flat |
| Bottom Plate Diameter | 9 in (22.86 cm) |
| Bottom Stud Configuration | 2 |
| Compressed Length | 4-13/64 in (10.67 cm) |
| Design Height (in.) | 8 in @ 9-1/2 in (20.32 cm @ 24.13 cm) |
| Diameter | 12 in (30.48 cm) |
| Loading Capacity at 20 psig | 1220 lb-ft |
| Loading Capacity at 60 psig | 3660 lb-ft |
| Loading Capacity at 90 psig | 5490 lb-ft |
| Minimum Jounce Height (in.) | 4-1/8 in (10.49 cm) |
| Temperature | 57°C @ -54°C (134.6°F @ -65.2°F) |
| Top Mount | Flat |
| Top Plate Diameter | 9 in (22.86 cm) |
| Top Stud Configuration | 3 |
| Weight | 14.1 lb (6.39 kg) |
Interchanges & Equivalent parts:
2B12-309, 354-7400, FIR7400, GR-2726, GR2726, 04-0080, 1000-AS7400, 1027519, 16-10769-000, 16-10796-000, 2726, 2B12309, 3918349, 4313, 5396-W013587400, 693230, AS0003, AS7400, B-1013, FD 330-22 313, FIRW01-358-7400, FS7400, FSIW013587400, G2297400500, GTK-358-7400, HDX W013587400, MIDW013587400, RC AS7400, REAW013587400, S-1013, TR7400, TWDW013587400, W013587400, AS0001, FS6910, W010066910, 1610769000, 1610796000, 3918348, 554788C1, 566.CT64270, 64270, AS-0003, AS2147405, C-1013, C1013, FD 330 22 313, S1013, SC2020, W01-358-7400, GR-2726, GR2726, 2B12-309, FIR7400, 354-7400, MIDW013587400, FSIW013587400, 693230, 16-10796-000, AS0003, 2726, W013587400, B-1013, G2297400500, 5396-W013587400, RC AS7400, FS7400, S-1013, 3918349, 4313, 04-0080, 1000-AS7400, FIRW01-358-7400, FD 330-22 313, REAW013587400, AS7400, TWDW013587400, 2B12309, 1027519, 16-10769-000, GTK-358-7400, HDX W013587400, TR7400, AS0001, W010066910, FS6910, 566.CT64270, AS2147405, 64270, 1610796000, 3918348, 554788C1, AS-0003, C1013, S1013, 1610769000, C-1013, FD 330 22 313, SC2020, W01-358-7400, M6977
