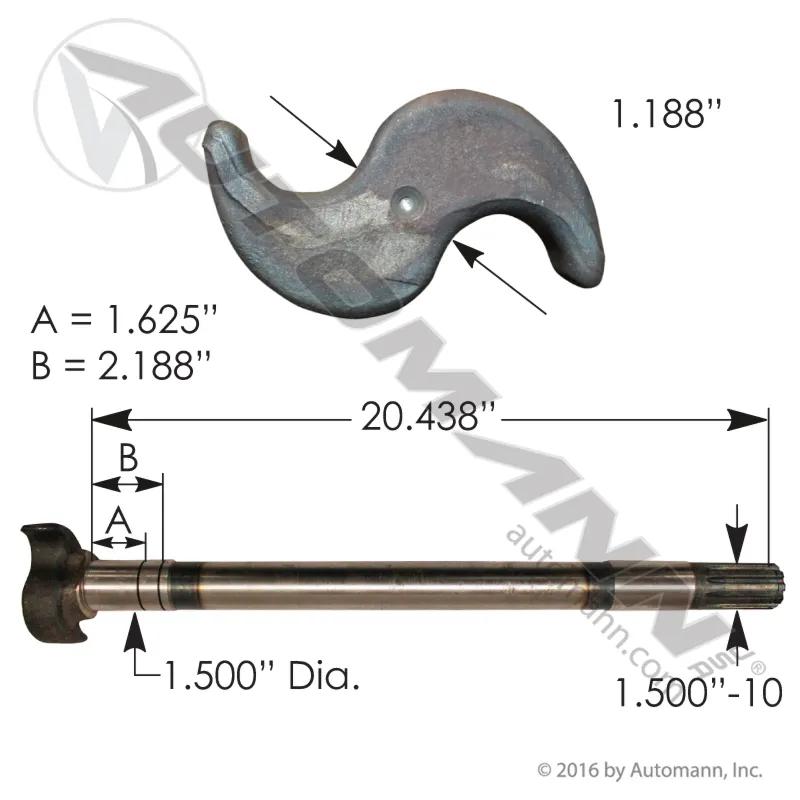

Brake Camshaft, Splines: 1-1/2 in - 10, L: 20-3/8 in
#MZB124.102014.03
Specifications
| Application | Meritor |
| Brake Camshaft Head Size | 1-1/8 in (2.86 cm) |
| Brake Camshaft Dimension B | 2-7/32 in (5.64 cm) |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Type | Meritor Q Plus |
| Camshaft Length | 20-7/16 in (51.92 cm) |
| Right or Left Side | Left |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1.500"-10 |
| Splines | 10 |
| Length Range | 20 to 20.99 in |
| Weight | 12.2 lb (5.53 kg) |
Interchanges & Equivalent parts:
| R607082 |
| 124.102014.03 |
