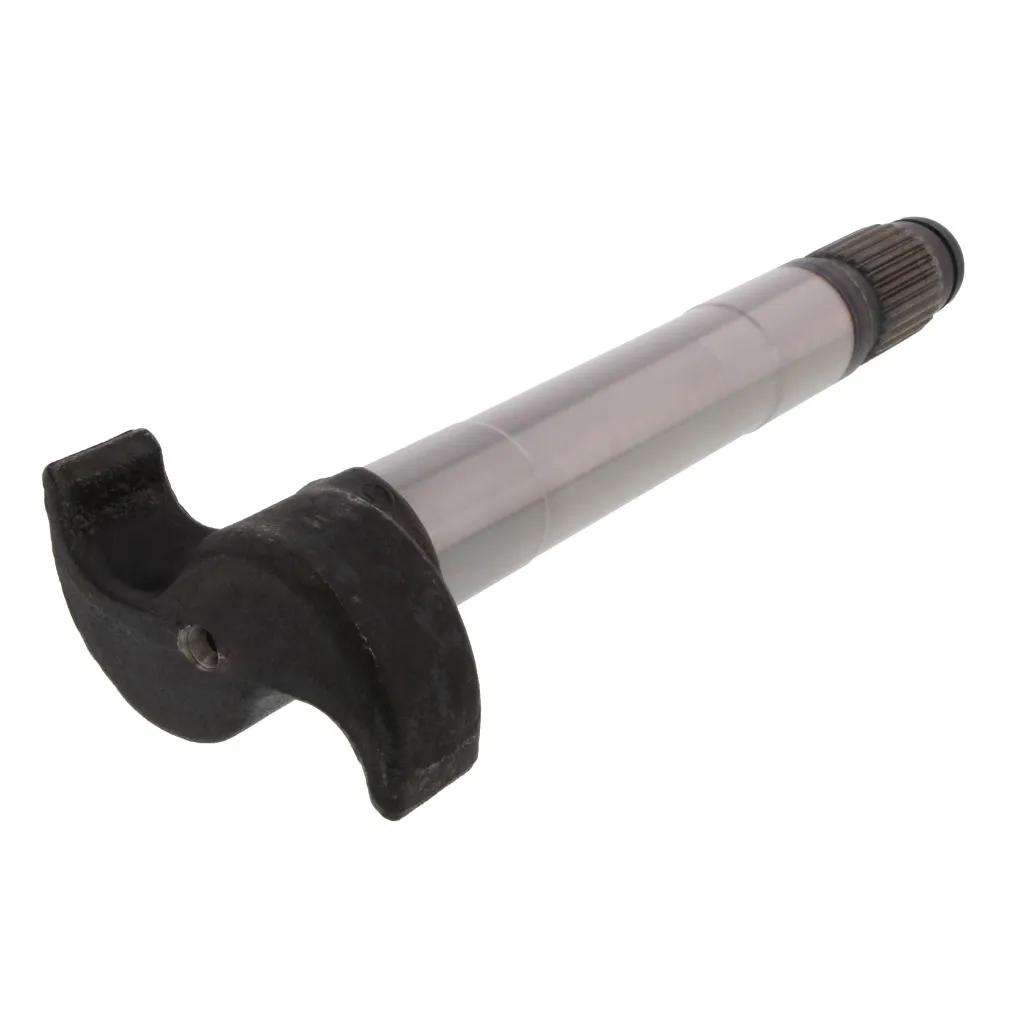

Brake Camshaft, Splines: 1-1/2 in - 28, L: 10-29/64 in
#ROC2210E7493
Specifications
| Brake Camshaft Head Size | 1-3/16 in (3.02 cm) |
| Brake Camshaft Dimension B | 1-13/16 in (4.61 cm) |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Type | Meritor Q Plus |
| Bushing Journal Length (in.) | 1-49/64 in (4.49 cm) |
| Camshaft Length | 10-29/64 in (26.56 cm) |
| OE Mfg. | Meritor |
| Right or Left Side | Left |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Splines | 28 |
| Length Range | 10 to 10.99 in |
Interchanges & Equivalent parts:
| 04-059 |
| 04-461052 |
| 04-481042 |
| 122.281013.01 |
| 18-511 |
| 18-827 |
| 2210-A-7151 |
| 2210-D-6452 |
| 2210-F-5362S |
| 2210-Q-6959 |
| 2210-Z-6032 |
| 2210-Z-6032S |
| 2210E7493-RI |
| 2210F5362 |
| 3133419 |
| 4461052 |
| 4481042 |
| 8235-2210E7493 |
| 8235-2210Q6959 |
| A8051 |
| ATI2210E7493 |
| BP2050 |
| C655L |
| CS40178 |
| CS9655L |
| E-3347 |
| H-10556L |
| H10556L |
| HQ-10306L |
| HQ10306L |
| L-2873 |
| L-3093 |
| M-3179L |
| M-4001L |
| TDA 2210E7493 |
| TDA2210E7493 |
| TP8535 |
| 18-829 |
| 4059 |
