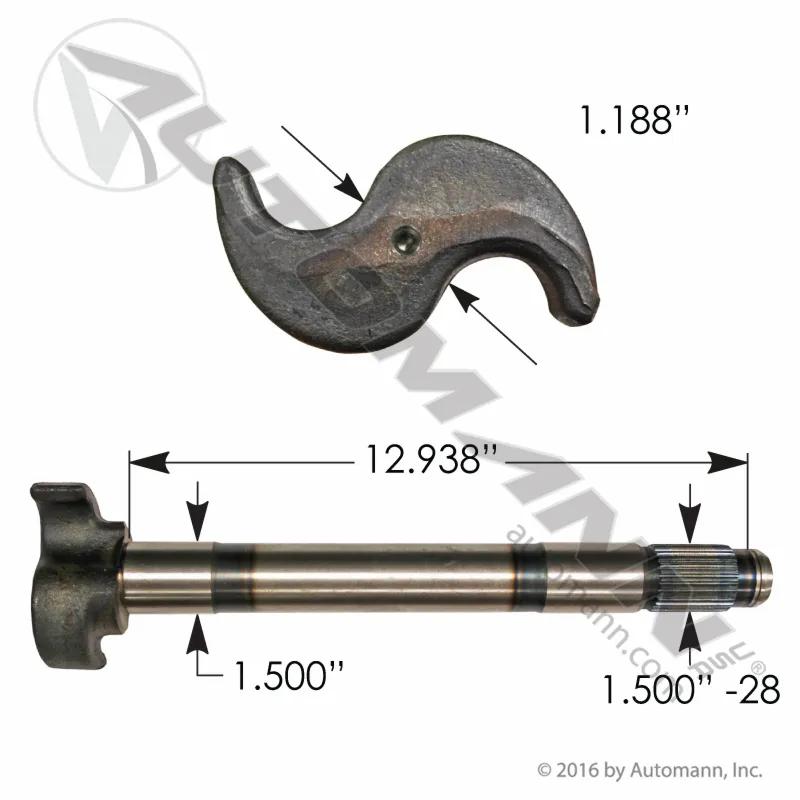

Brake Camshaft, Splines: 1-1/2 in - 28, L: 12-61/64 in
#MZB122.281230.03
Specifications
| Application | Meritor |
| Brake Camshaft Head Size | 1-3/16 in (3.02 cm) |
| Brake Camshaft Dimension B | 1-13/16 in (4.61 cm) |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Type | Meritor Q Plus |
| Camshaft Length | 12-15/16 in (32.87 cm) |
| Right or Left Side | Left |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1.500"-28 |
| Splines | 28 |
| Length Range | 12 to 12.99 in |
| Weight | 8.6 lb (3.9 kg) |
Interchanges & Equivalent parts:
| 2210U7587 |
| 122.281230.03 |
