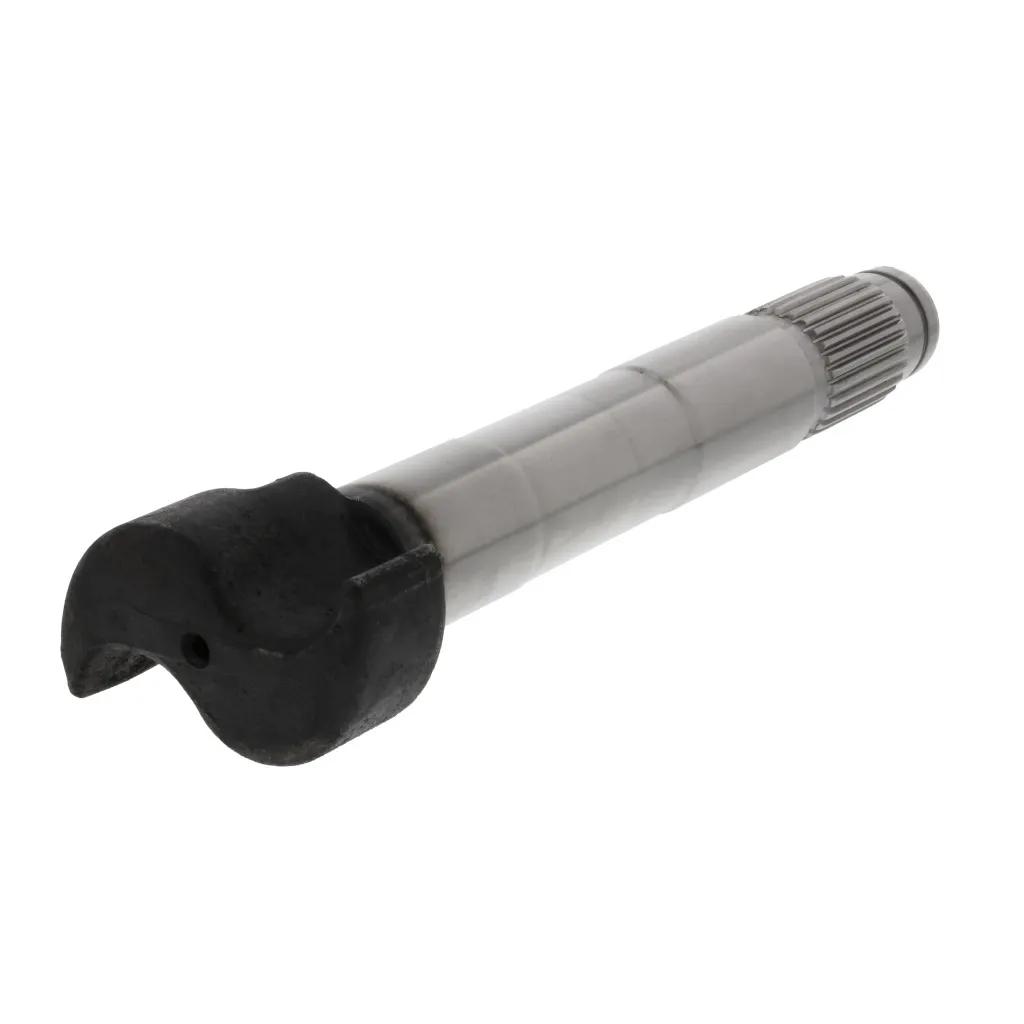

Brake Camshaft, Splines: 1-1/2 in - 28, L: 8-45/64 in
#ROC2210S7429
Specifications
| Brake Camshaft Head Size | 1 in (2.54 cm) |
| Brake Camshaft Dimension B | 1-13/16 in (4.61 cm) |
| Brake Surface Diameter | 15 in (38.1 cm) |
| Brake Type | Meritor Q Plus |
| Bushing Journal Length (in.) | 1-49/64 in (4.49 cm) |
| Camshaft Length | 8-45/64 in (22.11 cm) |
| Height | 3-1/2 in (8.89 cm) |
| OE Mfg. | Meritor |
| Right or Left Side | Right |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Splines | 28 |
| Length Range | 8 to 8.99 in |
| VMRS Code | 013-017-004 |
| Weight | 2.75 lbs (6.05 kg) |
| Width | 4-45/64 in (11.95 cm) |
Interchanges & Equivalent parts:
| L3349 |
| U51L3349 |
| 04-260871 |
| 2210S7429-RI |
| 2500682C1 |
| 8235-2210S7429 |
| ATI2210S7429 |
| CAM404L |
| CS11523L |
| H-10842L |
| H10842L |
| L-3349 |
| TDA 2210S7429 |
| TDA2210S7429 |
| TWD2210S7429 |
