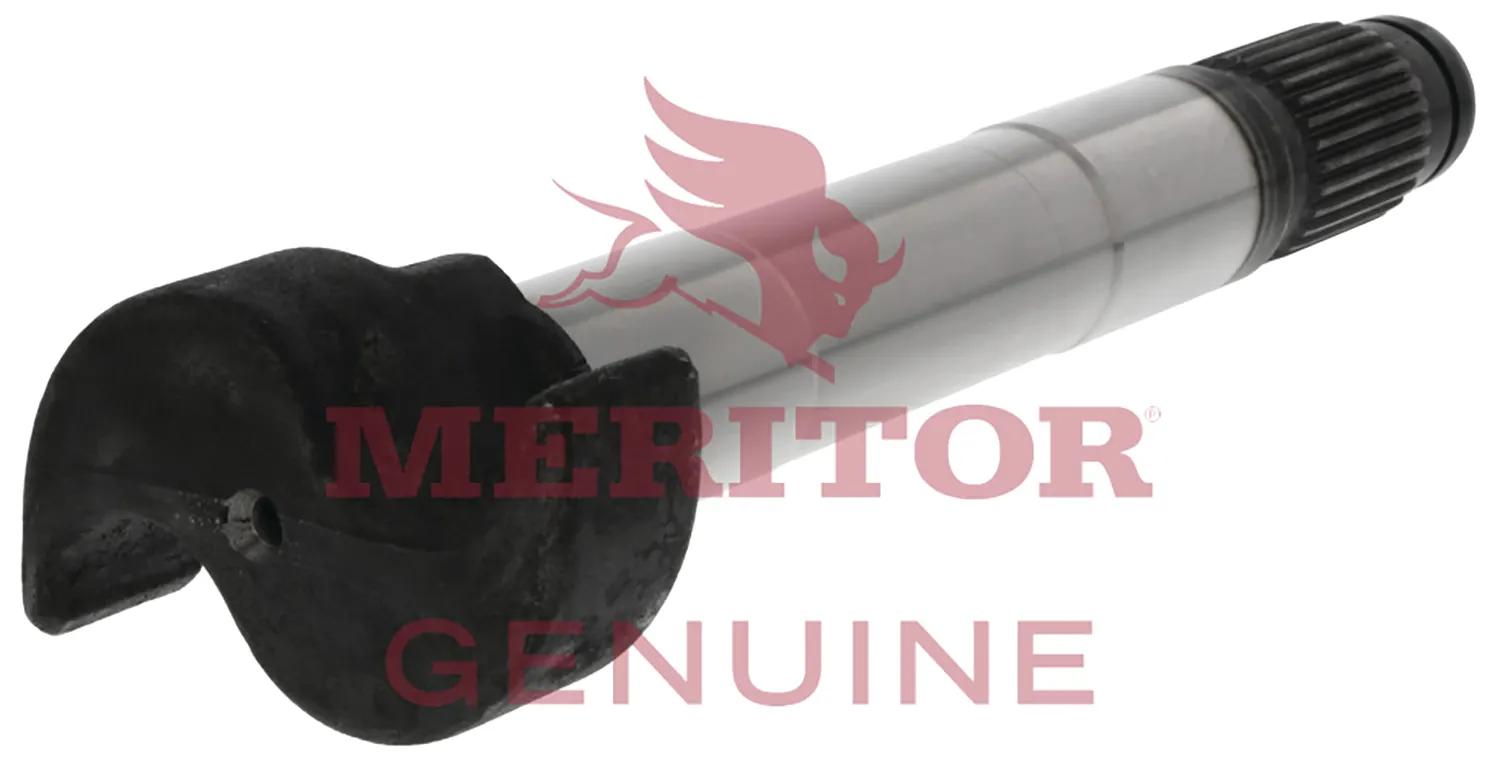

Brake Camshaft, Splines: 1-1/2 in - 28, L: 9-19/64 in
#ROC2210P7452
Features & Benefits
- RH brake camshaft for precise braking control
- Reliable RH brake camshaft for optimal performance
- Durable RH brake camshaft ensures long-lasting use
Specifications
| Brake Camshaft Head Size | 1-3/16 in (3.02 cm) |
| Brake Camshaft Dimension B | 1-13/16 in (4.61 cm) |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Type | Meritor Q Plus |
| Bushing Journal Length (in.) | 1-49/64 in (4.49 cm) |
| Camshaft Length | 9-19/64 in (23.62 cm) |
| OE Mfg. | Meritor |
| Right or Left Side | Right |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Splines | 28 |
| Length Range | 9 to 9.99 in |
Interchanges & Equivalent parts:
| MER2210P7452 |
| 1119984 |
| 2210-Q-5373 |
| 2210P7452-RI |
| 2210P7452F |
| 2210Q5373S |
| 2210V7146 |
| 2500927C1 |
| 8235-2210P7452 |
| 9628 2210P74 52 |
| ATI2210P7452 |
| BP2098 |
| CS11526R |
| E-11526 |
| H-11025R |
| H11025R |
| HQ-10385R |
| HQ10385R |
| RW2210P7452 |
| TDA 2210P7452 |
| TDA2210P7452 |
