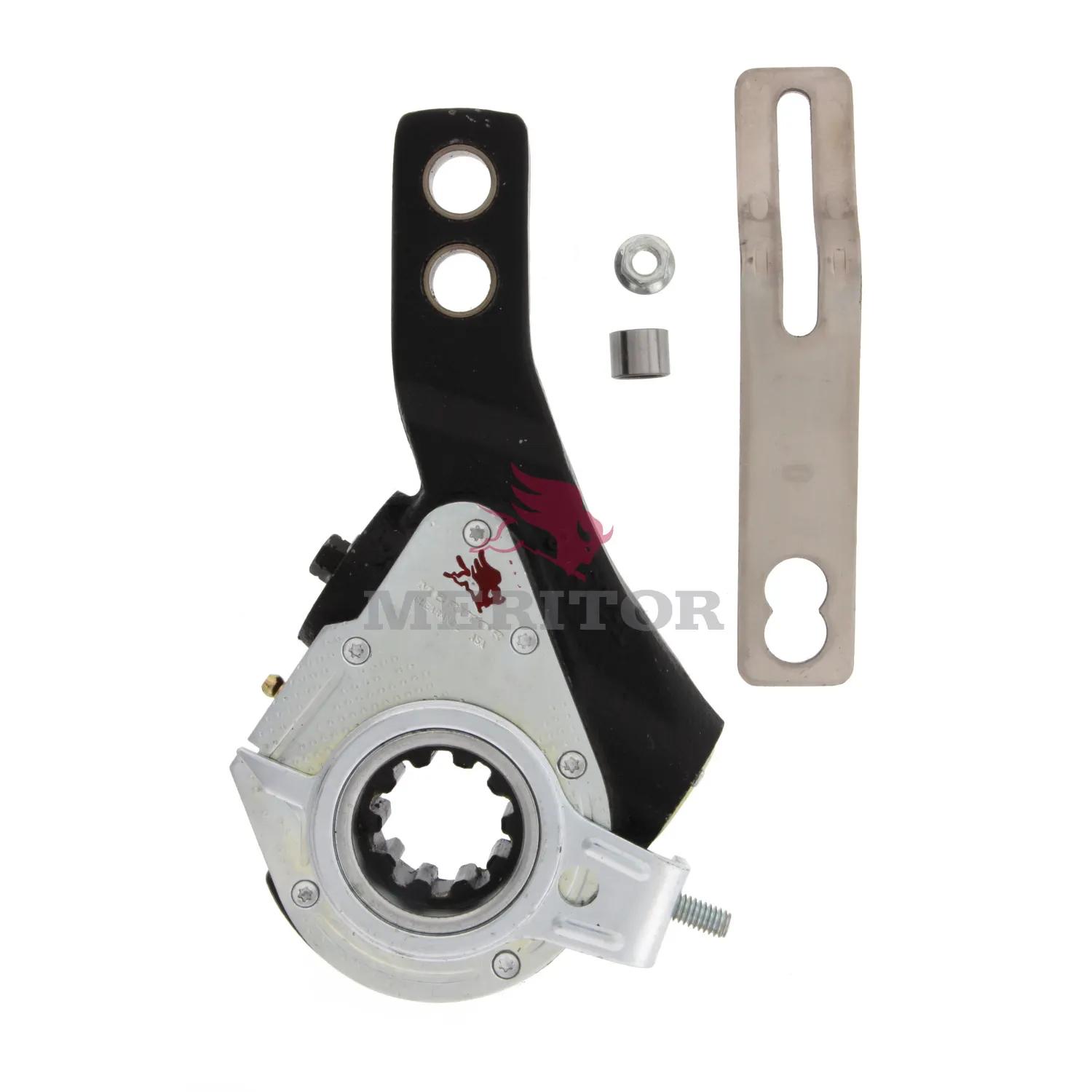

Règleur de frein auto, Dia: 1-1/2 po - 10, L: 5 1/2 po, 6 1/2 po
#ROCR806022A
Caractéristiques et avantages
- Enhances braking system longevity
- Ensures consistent braking efficiency and safety
- Controls brake shoe travel for optimal performance
- Automates brake adjustment to save time and effort
- Prevents excessive brake wear due to unadjusted shoes
- Adjusts brake automatically to maintain proper clearance
- Regulates brake system effectively for smooth operations
- Maintains optimal clearance between brake drums and shoes
Spécifications
| Angle | 34 deg |
| Application | Drive |
| Arm Length # 1 | 5-1/2 in & 6-1/2 in |
| Automatic or Manual | Automatic |
| Brake Size | 16-1/2 in |
| Bushing I.D. | 5/8 in |
| Clevis Type | Unclevised |
| Maximum Torque | Less than 15 foot pounds |
| Model | AA1 Replacement |
| Notes | Standard version. Premium version is M807022. Self-setting alternative is M808022. |
| Nombre de cannelures | 10 |
| Numéro de pièce de production | 409-10733 |
| Diamètre de spline (po) | 1-1/2 in |
| Diamètre de cannelure - Nombre de cannelures | 1-1/2 in - 10 |
| Type | Clearance-Sensing |
Interchanges et pièces équivalentes:
| E6924A |
| 05-661 |
| 8235-R806022A |
| TDAR806022A |
| SA10103 |
| 815809 |
| SA1202HC |
| 1331031 |
