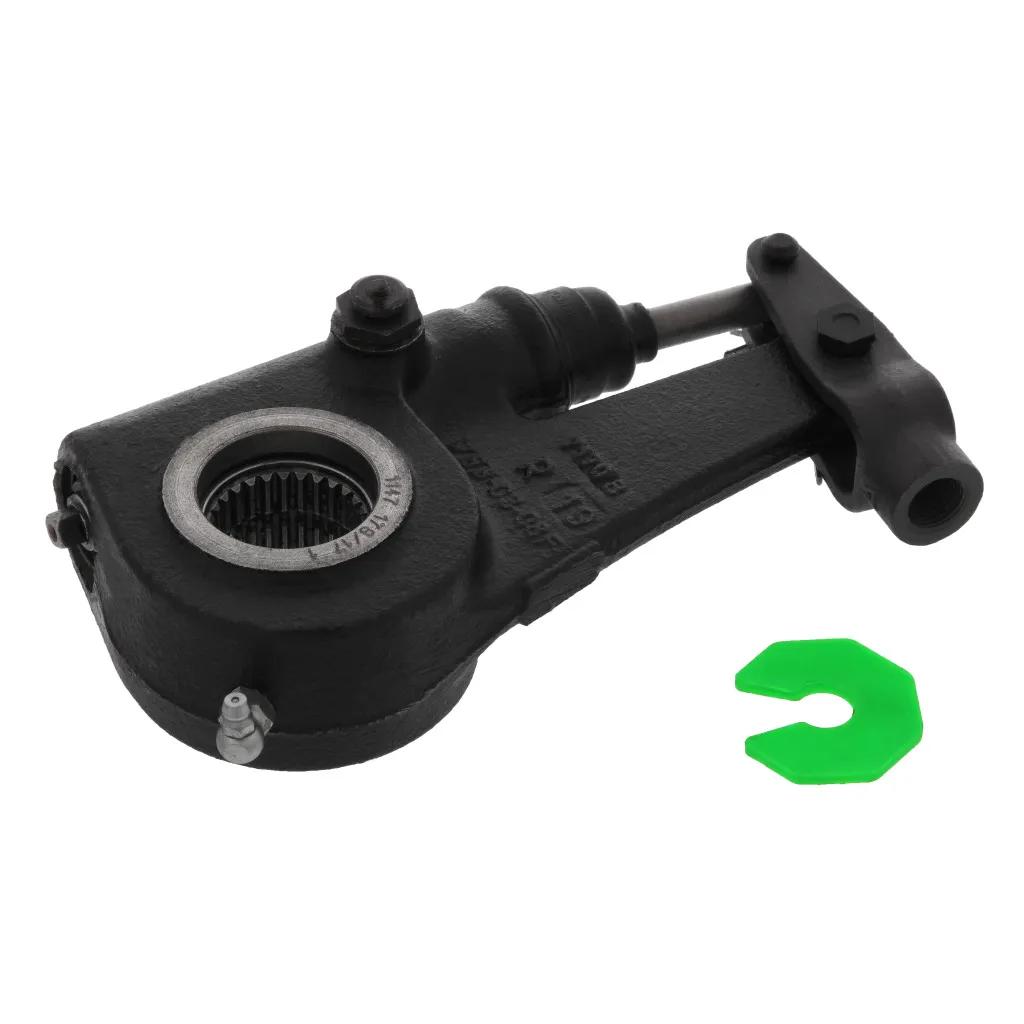

ASA, Spline: 1-1/2 in - 28, L: 6 in
#ROCR802483
Specifications
| Arm Length # 1 | 6 in |
| Automatic or Manual | Automatic |
| Chamber Sizes | 24 in (60.96 cm) |
| Clevis Thread Diameter (in.) | 5/8 in (1.59 cm) |
| Clevis Threads per inch | 18 in (45.72 cm) |
| Clevis Type | Straight |
| Maximum Torque | More than 45 inch pounds |
| Model | Meritor |
| Notes | Red piston. Drum brake. |
| Number of Splines | 28 |
| Production Part Number | A9-3275-C-1147S |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Type | Stroke-Sensing |
Interchanges & Equivalent parts:
| R802483-RI |
| TDA R802483 |
| TDAR802483 |
| A17-3275B600S |
| ACCAS1141 |
| AS1041 |
| CS56041M1D |
| E-6993A |
| GUNAS-1141 |
| ATIR802483 |
