  5. MSAH802487N

2 POINTS
Main Media Image


HD Plus logo

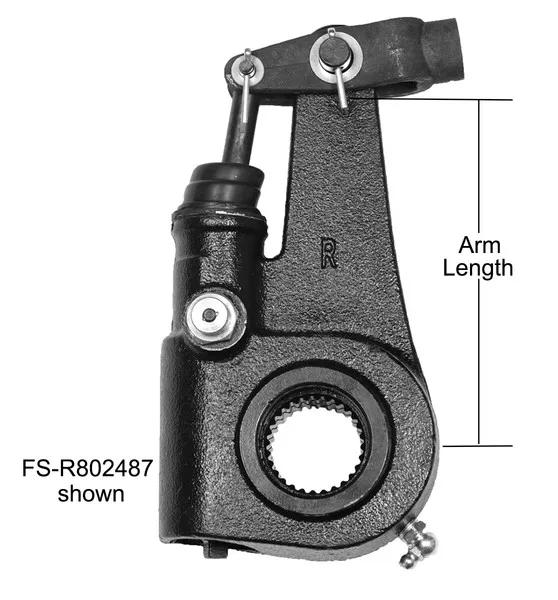

ASA, Spline: 1-1/2 in - 28, L: 6 in

#MSAH802487N

See More
See Less

Features & Benefits


  • This unit is Type 2, "Right Hand"Supplied with a FS-R810019 Clevis

Specifications


Angle 0 deg
Application Steer / Drive / Trailer axle
Arm Length # 1 6 in
Automatic or Manual Automatic
Chamber Sizes 30 in
Clevis Thread Diameter (in.) 5/8 in
Clevis Threads per inch 18 in
Clevis Type Unclevised
Number of Splines 28
Spline Diameter 1-1/2 in
Spline Diameter-Spline Count 1-1/2 in - 28
Arm Length 6 in

Interchanges & Equivalent parts:


R802487
R802487B40
FS-R802487
