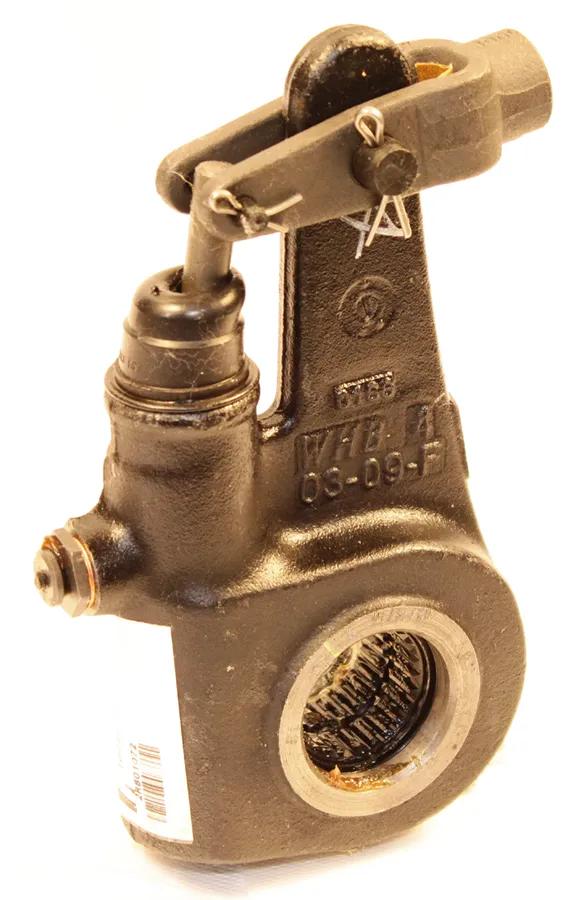

Meritor Air Brake Slack Adjuster, Type 2, Automatic, 1-1/2 in - 28 Spline, 6 in Arm Length, Straight Chamber
#ROCR802487
Product Overview
Manufactured to meet or exceed O.E.M. specifications in function, form, and fit. This Meritor automatic slack adjuster features a 1-1/2 inch diameter spline with 28 splines, a 6 inch adjuster arm length, and a straight chamber design for reliable drum brake performance.Air Brake Slack Adjuster, Type 2, Straight Chamber, 6 in Arm Length, 5/8-18 Clevis, 28 Splines, 1.5 in Spline Dia
Features & Benefits
- Yellow Piston - Drum Brake
- Type 30 Chamber
- Adjuster Arm Length is 6 in
- Adjuster Spline Diameter is 1-1/2 in
- Automatic Slack Adjuster
- Straight Chamber
- Clevis Size 5/8-18
Specifications
| Angle | 0 deg |
| Automatic or Manual | Automatic |
| Chamber Sizes | 30 in (76.2 cm) |
| Clevis Type | Straight |
| Maximum Torque | More than 45 inch pounds |
| Model | Meritor |
| Notes | Yellow piston. Drum brake. |
| Number of Splines | 28 |
| Production Part Number | A14-3275-C-1147 |
| Spline Diameter | 1-1/2 in |
| Type | Stroke-Sensing, Type 2 |
| VMRS Code | 013-017-005 |
| Arm Length | 6 in |
| Chamber Size | 30 in |
| Chamber Type | Straight |
| Clevis Size | 5/8-18 |
| Product Category | Air Brake Slack Adjuster |
| Quantity | 1 |
| Weight | 6.93 lb |
Interchanges & Equivalent parts:
| 4L-6-64 |
| ATIR802487 |
| R802487-RI |
| TDA R802487 |
| TDAR802487 |
| V1090263 |
| A1-3275Z1092S |
| A13-3275-C-1147S |
| A16-3275B600S |
| R802489 |
| CS56041M1D |
| H802487N |
| MERR802487 |
| 1090263 |
| AS1041 |
| E-11422 |
| E-6993A |
| 8235-R802487 |
| ASM802487 |
| RWR802487 |
| TWDR802487 |
| 05-562 |
| ACCAS1141 |
| BNDK041877 |
| GUNAS-1141 |
| K041877BXW |
