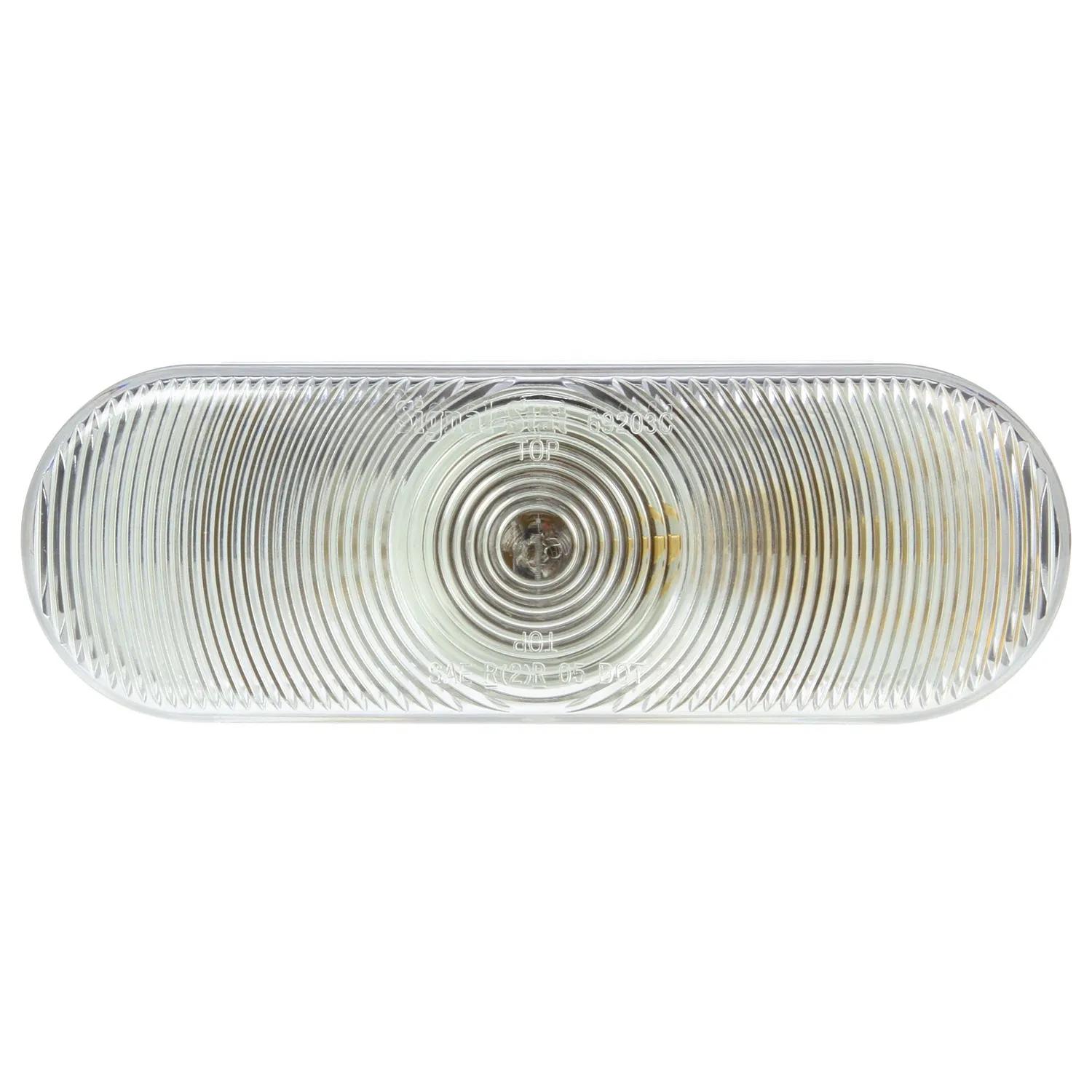

Back-Up Light, Clear, Oval, Le: 6-15/32 in
#TRL69003C
Product Overview
Male Pin, Incandescent, Clear Oval, 1 Bulb, Back-Up Light, Black Grommet Mount, PL-2, Stripped End/Ring Terminal, 12V, Kit
Features & Benefits
- Features male pin connections
- High-impact polycarbonate lens and housing
- Shock mount resists road shock and vibration
- Two lamps required to meet federal lighting regulations
- Not recommended for dome lamp use
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Amps | 2.1 amp |
| Color | White |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp Kit |
| Depth | 2-5/8 in (6.68 cm) |
| Diamond Shell (Y/N) | No |
| Fits Pigtail Part #(s) | 96108 |
| Height | 2-19/64 in (5.84 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| # Lamp Prongs | 2 |
| Lamp Type | Sealed |
| Length | 6-15/32 in (16.43 cm) |
| Lens Height | 2-19/64 in (5.84 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 6-15/32 in (16.43 cm) |
| Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Back-Up Light |
| Shape | Oval |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| VMRS Code | 034-003-074 |
| Volt | 12V |
| Weight | 0.25 lb (0.11 kg) |
| Width | 6-31/64 in (16.46 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 8413-69003C |
| LIT69003C |
| TL 69003C |
| TL 69003C |
| TL69003C |
| TLD69003C |
| 62261GR0 |
| KT3260W |
| 62241 |
| 69003C |
